S15-F RS485/ENET/WiFi communication interface gateway device
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
S12 RS485/Ethernet wireless transmission module other communication
-
SHI-SCT05/100/200/400/600 multi-circuit monitoring system split core current transformer CT
-
SHI-FCT600/1000/2000/3000 multi-circuit monitoring system current transformer flexible CT
-
Multi-circuit monitoring system solid core current transformer CT
-
JD194-BS4I3T din rail mounted 3 phase current voltage power transducer
-
RS485 USB data transmission cable
Product Description
Product Description
Product name：S15-F RS485/ENET/WiFi communication interface gateway device
S15 gateway is a small gateway device that can collect multiple protocol bus devices and upload data
to cloud platform or local HMI display. A complete set of SmartHMI tools supports the configuration of the device that hangs down and monitors its data or status.
to cloud platform or local HMI display. A complete set of SmartHMI tools supports the configuration of the device that hangs down and monitors its data or status.
Advantage
■ Power supply：By itself
■ Launch frequency：100MW
■ Communication rate：Max 115200bps （default 9600bps）
■ Available meters：1-32 pcs power meters
■ Launch frequency：100MW
■ Communication rate：Max 115200bps （default 9600bps）
■ Available meters：1-32 pcs power meters
Technical Parameter
Hardware resource | ||||||
LED | 1Rd.running light ,2Rd. RS485 lights ,1Rd. Ethernet light ,1Rd. wireless light | |||||
RS485 | 2 Rd. | |||||
Ethernet | 2 Rd. | |||||
Extension | 2G、4G、NB-IoT、LORA、WIFI | |||||
Working environment conditions | ||||||
Working voltage | AC220V±20V 50Hz | |||||
Working temperature | -25~+70℃ | |||||
Storage temperature | -40~+85℃ | |||||
Relative humidity | ≤95%RH，noncondensing | |||||
Work altitude | ≤2000m | |||||
Protection level | IP20 | |||||
Insulation | Double insulation | |||||
Voltage withstand | 2.5kV AC/1min | |||||
Communication interface | ||||||
Interface | Two RJ45(100M), electrostatic 6 KV | |||||
Standards | IEEE 802.3 | |||||
Communications agreements | Modbus TCP/IP,Modbus RTU,MQTT etc. | |||||
Electromagnetic Compatibility | ||||||
Electrostatic discharge immunity | IEC 61000-4-2- III level | |||||
Radiofrequency electromagnetic radiation immunity | IEC 61000-4-3- III level | |||||
Immunity of electric fast transient pulse group | IEC 61000-4-4- IV level | |||||
Impact (surge) immunity | IEC 61000-4-5- IV level | |||||

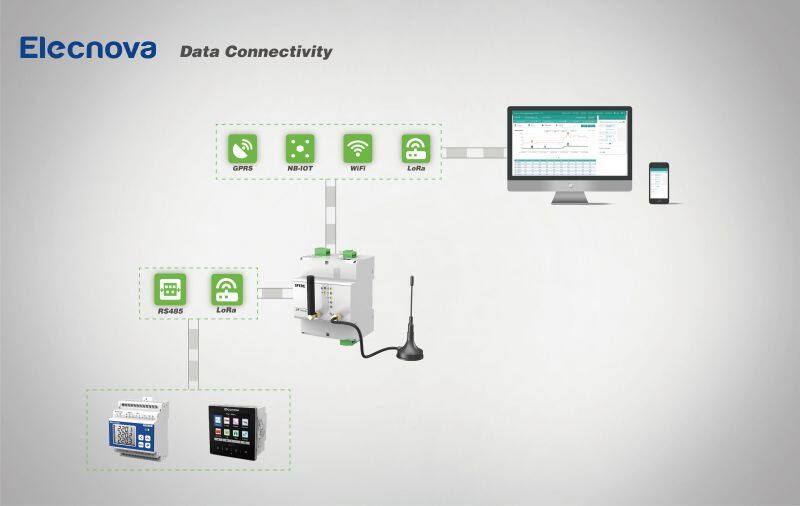

Data flow
Dimensions and wiring diagrams
