5th 5,000kg/H 5ton Diesel Powered Steam Boiler,Gas Steam Boiler For Oil Press

5th 5,000kg/H 5ton Diesel Powered Steam Boiler,Gas Steam Boiler For Oil Press

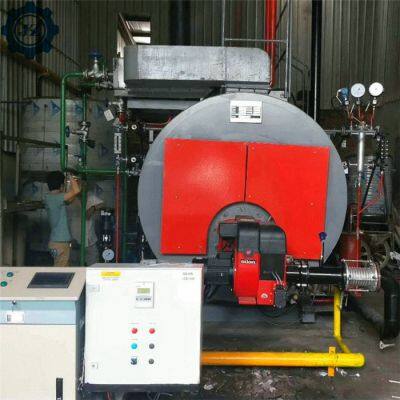

This horizontal steam boiler is skid-mounted boiler, three return fire tube boiler.The high temperature flue gas flushes the second and third return flue gas pipes in turn, and then is discharged into the atmosphere through the chimney from the rear flue gas chamber.The boiler is equipped with movable front and rear smoke box covers, so that the boiler maintenance is convenient.industrial steam boiler is equipped with industrial burners with good technical performance, which adopts advanced technologies such as automatic proportional adjustment of combustion, automatic adjustment of water supply, program start and stop, automatic operation, and has automatic protection functions such as high and low water level alarm, extremely low water level, ultra-high steam pressure and flameout.This diese fired steam boiler has the characteristics of compact structure, safe and reliable, easy operation, quick installation, less pollution, low noise, high efficiency.

Steam Boiler Specification

Boiler Features

1. The design, production, supervision and inspection of boilers are strictly in accordance with the Safety Supervision Regulations for Steam Boilers, JB/T 10094-2002 General Technical Conditions for Industrial Boilers, and JB/T 1619-2002 Technical Conditions for Boiler Body Manufacturing, so as to ensure long-term safety and stability of boilers.

2, the body for the pot shell type full wet back downstream three return firework tube structure, the flame in the large combustion chamber micro positive pressure combustion, complete extension, low burning heat load, less NOx emission of harmful substances.

3, corrugated furnace and threaded pipe structure, that is, to improve the strength, but also to meet the needs of the heat expansion of each part.

4. Butt joint is adopted in the welding of the main welding seam, and non-destructive inspection is conducted by X-ray and ultrasonic to ensure that the welding quality meets the national requirements.

5, the boiler water volume and gas space is large, strong capacity to adapt to the load.Reasonable design of boiler installation, to ensure that the steam water rate is less than 4%, to meet the higher requirements of users on the quality of steam.

6, the use of new heat insulation material, light weight, less heat loss, good insulation performance.

7. The water level alarm adopts stainless steel as electrode rod and teflon as insulation material.Inserted from the top, not easy to hang dirt, reliable performance, long service life.

8. The front and rear smoke boxes are connected by hinges, which can be easily opened, convenient for maintenance and maintenance.

steam boiler water level control

boiler steam globe gate valve

pressure switch for steam boilers

water flow control for steam boiler

boiler steam globe gate valve

water level sensor for steam boilers

This steam boiler is widely used in different industries such as chemical plant, energy field, food factory, hospital, hotel, laundry, package plant, paper-making mill, pharmaceutical factory, slaughter house, tobacco factory, textiles plant, etc.
