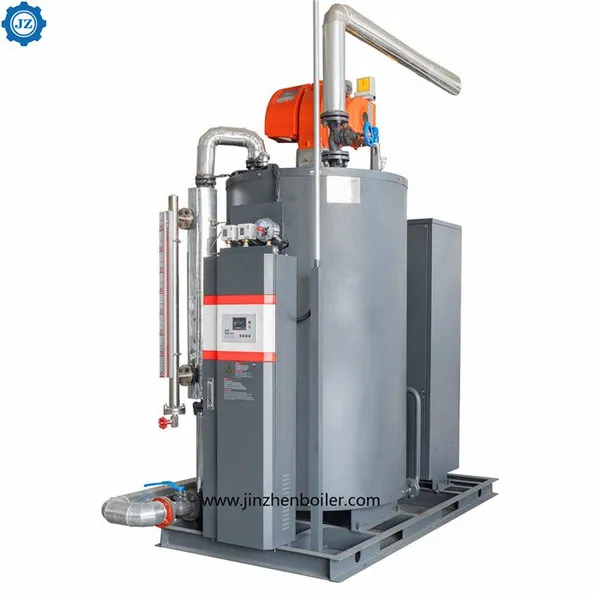

35-1000Kg/h Vertical Gas/Oil Mini Steam Boiler, Small Steam Generator For Food Processing Machinery
1.Model:LSS vertical steam boiler, steam generator
2.Capacity:300kg/h,500kg/h,750kg/h,1000kg/h, 1500kg/h, 2000kg/h
3.Design pressure:0.7Mpa(7bar),1.0Mpa(10bar),1.25Mpa(12.5bar)
4.Stem temperature:below 184 degree
5.Design fuel:natural gas,diesel, lpg,city gas
6.Application:Medicine,Chemical,Light Industry,Textile Mill,Slaughter Plant,Paper Making, Washing, Laundry, Food Processing machine
Vertical steam boiler adopts the latest technology, it is designed with a combustion chamber with large volume. It is equipped with a world-known burner, making the combustion more sufficient and ensuring higher efficiency and lower failure rate.
Boiler Specification
Boiler Advantage
1. No annual inspection, no operation certificate
Vertical steam boiler has a water volume of 48.2L. Within the specified range, this type of boiler does not need to apply for a boiler use certificate, does not require boiler annual inspection, does not require a personnel operation certificate, and is convenient and simple to use;
2. Internationally advanced vertical tubular water tube boiler structure
The vertical boiler has no drum, and the boiler body is composed of upper and lower headers, tubes, etc., so it is a safe boiler structure among all boilers;
3. Multi-chain security protection
Electronic overpressure protection, mechanical safety valve overpressure protection, water shortage protection, scale monitoring protection, leakage protection, overheating protection, burner flameout protection, water level logic error protection, etc.;
4. High-efficiency ω-enclosed flue gas heat exchange process
This structure has extremely high heat exchange efficiency between the flue gas and the water pipe, and the inner ring hot water exchange pipe and the outer ring hot water exchange pipe form a natural circulation process, which effectively reduces the salt content of the boiler and reduces the scaling rate;
5. Equipped with integrated (energy saving + condensation) condensing heat exchanger
The exhaust gas tail is equipped with a high-temperature economizer and a low-temperature condenser. The exhaust gas temperature is as low as 65℃. After the natural gas is burned, the water vapor condenses to release a large amount of high latent heat value, which fully absorbs the high heat value of natural gas, and the thermal efficiency reaches more than 99%; The heat exchanger is made of anti-corrosion ND steel, which is durable
Boiler Application
Food industry: food factories, beverage factories, meat products factories, breweries, bakeries, baking machines, dishwashers, milk high-temperature sterilization, emulsifiers, emulsifying pots, sugar pots, cooking pots, soup pots, stone pot fish, Congee cooking, beverage sterilization, steamed buns, steamed buns, steamed vegetables, steamed rice, steamed rice cakes, steamed soybean milk, boiled tea, boiled meat, steamer, steamer, tofu machine heating, soy milk machine, single door rice steamer, Double-door rice steaming box, three-door rice steaming box, canteen disinfection, tableware sterilization, disinfection cabinet, single-door disinfection cabinet, packaging machine, sandwich pot, oil storage tank thawing and other supporting use;
Biological equipment industry: fermentation tanks, fermentation tank disinfection, fermentation tanks, horizontal fermentation tanks, beer fermentation tanks, reaction kettles, jacketed pots, emulsifiers, sterilization tanks, sterilization pots, sterilizers, coating equipment, Supporting use of school laboratory, high temperature carbonization experiment, thermal energy experiment test, aviation kerosene heating, flower essential oil extraction, etc.;
