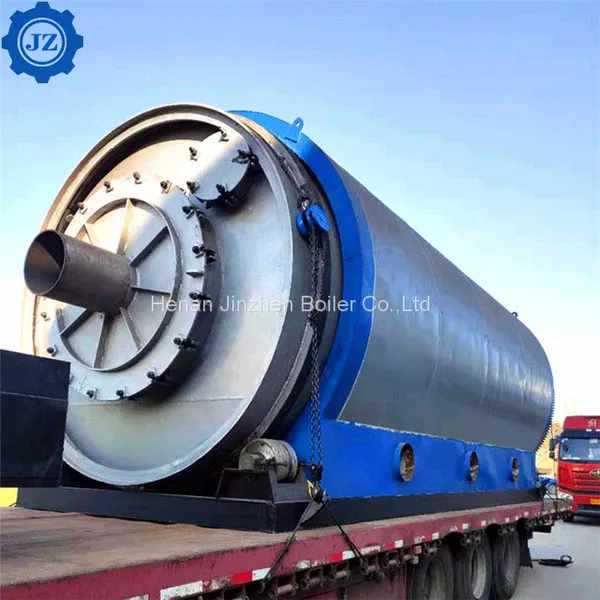

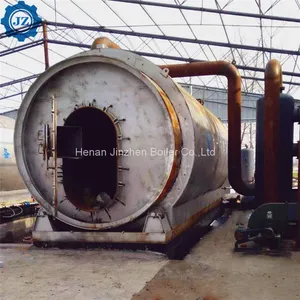

5T 8Ton 10Ton 12Ton Waste Plastic To Oil Recycling Pyrolysis Machine
Waste plastic recycling pyrolysis plant is a kind of machine that can dispose of waste plastic into fuel oil.
Plastic to oil ( plastic pyrolysis plant ) is environment friendly technology for disposal of plastic waste. Jinzhen Machine has more than 20 years of experience in operating and installing plastic pyrolysis plants.
In pyrolysis process, the plastic waste is not burned. But instead , plastic is chemically broken down into Pyrolysis Oil, Hydrocarbon Gas and Carbon Black.
Technical Parameters
capacity |
5tons/batch, 6tons/batch, 8tons/batch, 10tons/batch, 12tons/batch |
reactor material |
Q245R /Q345R steel boiler plate |
thickness |
14.35mm , 16.45mm, 18.45mm, |
weight |
30-40tons |
working power |
15-30KW (as different design and capacity) |
space cover |
250-300 square meters(L*W*H= 25-30M*10M*6M) |
Labor need |
3-4 |
processing time |
loading 2 hours, processing 8 hours, discharge carbon and steel 1 hour. |
3D Flow Chart of Tyre Pyrolysis Plant
Many waste plastics in our lives can use waste plastic pyrolysis plant to obtain fuel oil and carbon black, and most plastics have a higher oil yield than waste tires.
Working process of waste plastic recycling pyrolysis plant

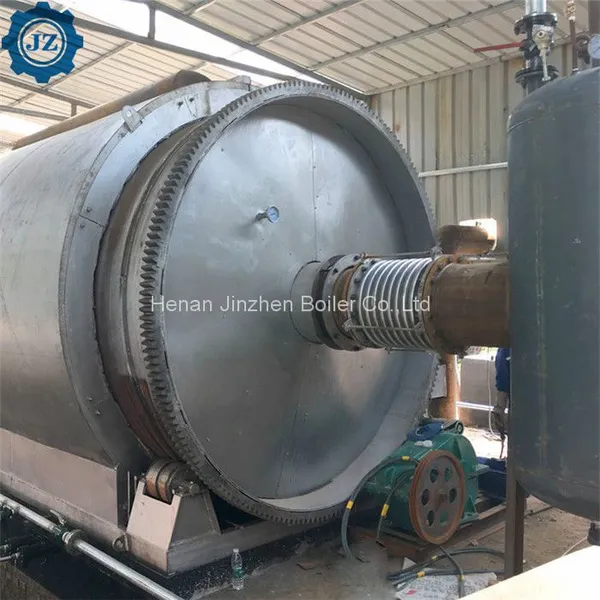

1. Make reactor rotate clockwise 0.4r/min, put raw material into reactor, close feeding door.
2. Burned the fuel material (coal, wood, natural gas or oil) in the furnace. Reactor will be slowly heated, when the temperature reach around 180℃, oil gas will come out, then go to cooling system and get liquid oil. Some incondensable gas which can’t cool down will be lead to furnace through a gas pipe. It will be used to heat reactor which can save your energy. Only the first 2 hours use energy for heating. After the first 2 hours mainly use gas, little energy is OK. After pyrolysis, all the oil gas come out from reactor, the temperature will fall down. Then make it rotate anticlockwise, carbon black discharging begin.
3. When the temperature deduce to 50℃, worker can opened the door of reactor take steel wire out.
4. And then you can start the next batch.
The output of Doing’s waste tyre recycling pyrolysis plant
Take one batch 10T waste tyre recycling pyrolysis plant for example:
a. Crude oil: 45%*10t=4.5t
b. Carbon black: 35%*10t=3.5t
c. Steel wire: 13%*10t=1.3t
Advantage
1. Reactor made of Q245R boiler steel plate, 16mm/18mm thickness.

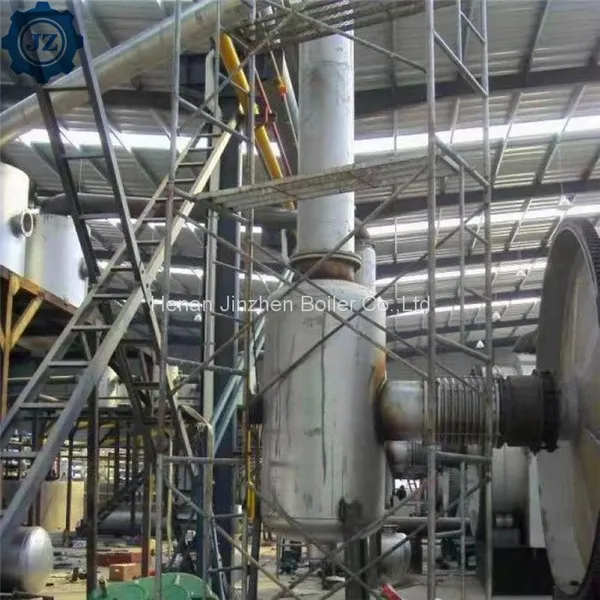

2. Integrated design condensing system and de-dusting device shorten the installation time and the welding quality can be ensured. besides , it is easy for transportation.
3. Pyrolysis oil can be used for heating the reactor , one set machine need 3-4 oil burners.
4 we have different grades de-dusting devices to meet different countries emission standard.
5. A serious of safety devices to ensure the machine working smoothly.
6. Tail gas (can not be turned into liquid oil but combustible oil gas ) are go back to the furnace for second burning as heating fuel to heat the reactor , thus to prevent pollution.

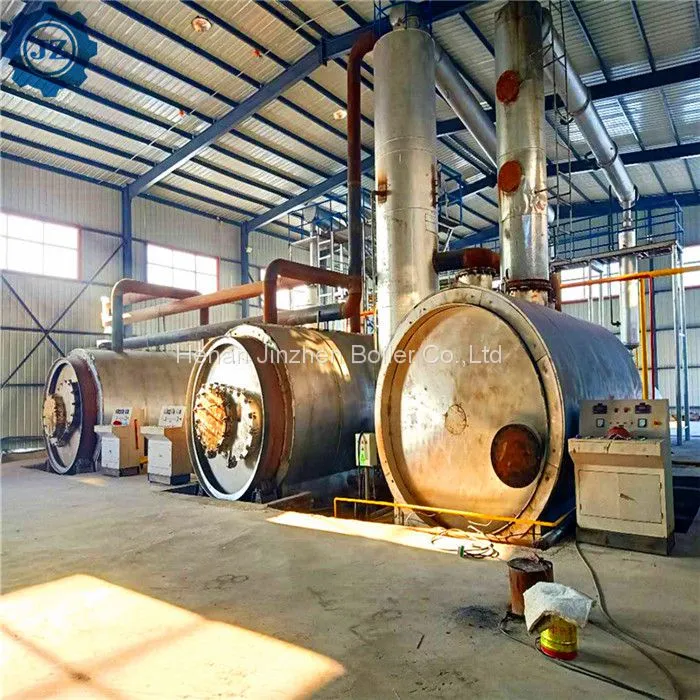

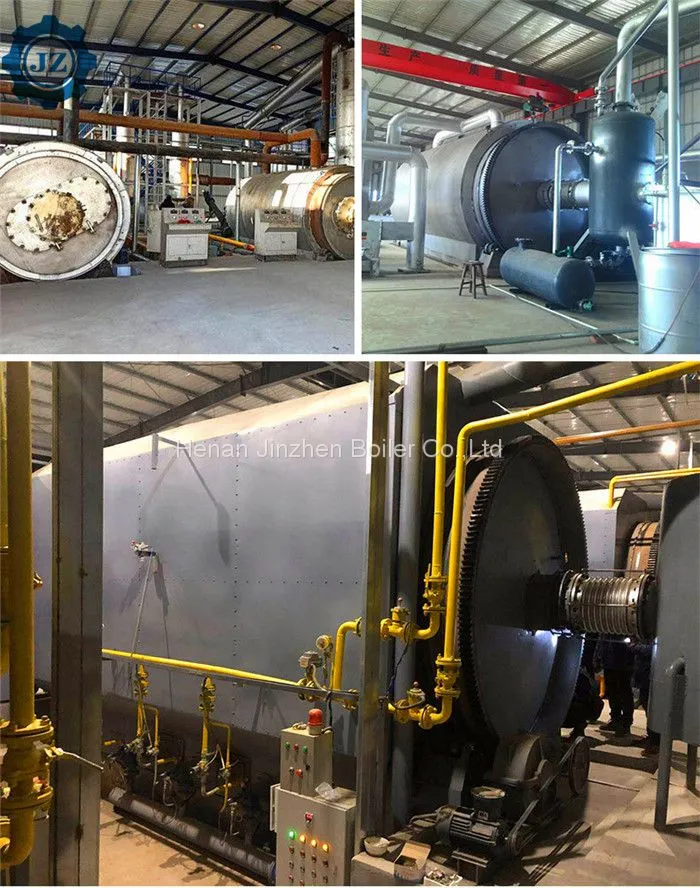

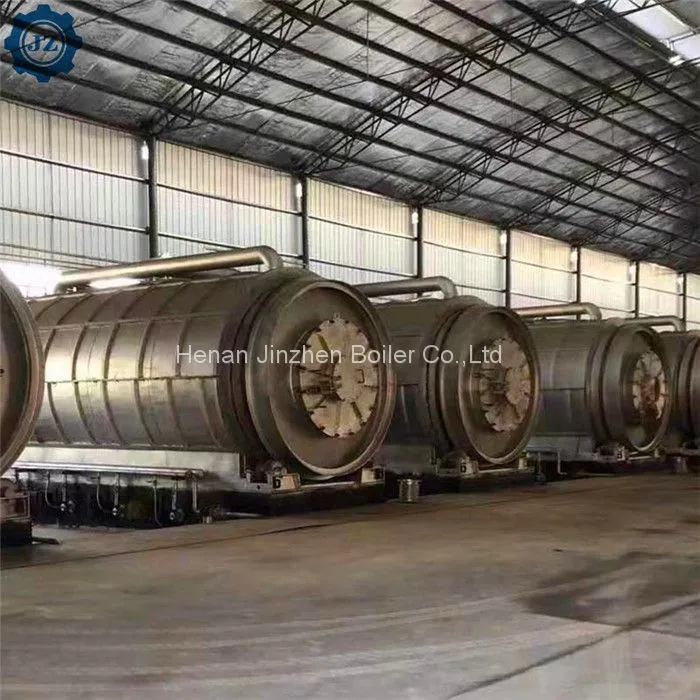

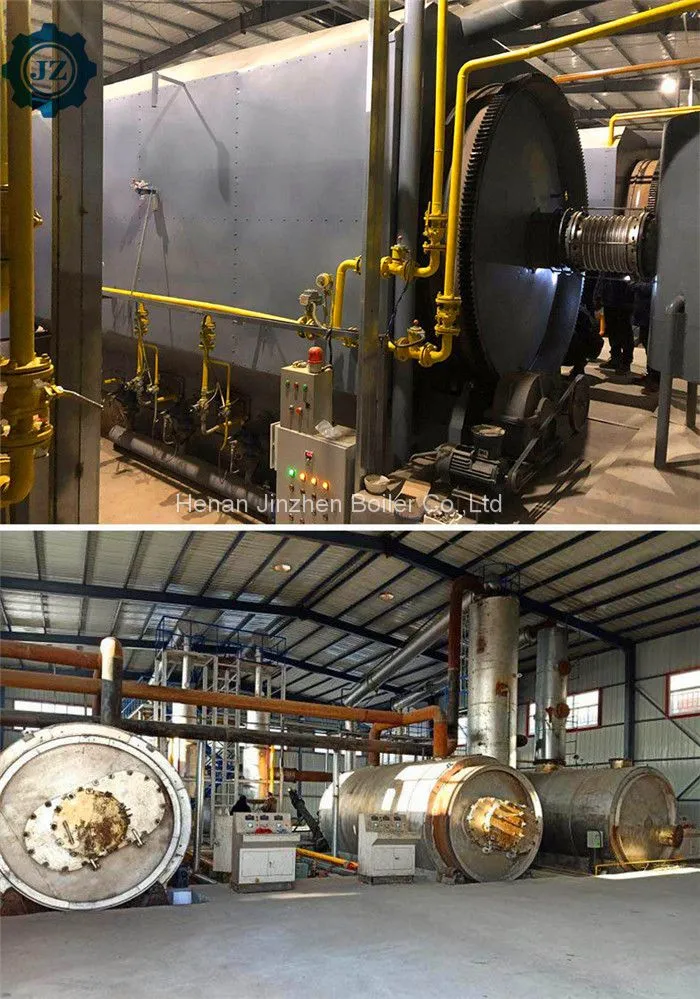

Sucessful case
