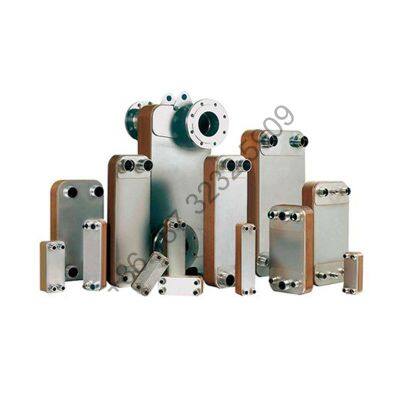

Brazed Heat Exchanger

The Copper Brazed Plate Heat Exchanger is comprised of a series of thin corrugated metal plates, capable of efficiently handling substantial workloads in a compact form with minimal footprint. These industrial heat exchangers are commonly employed in diverse industrial applications, circulating heating and cooling systems, as well as in commercial and residential settings.

Brazed Plate Heat Exchangers (BPHE) can be used both as an evaporator and condenser in chillers and heat pumps respectively. Brazed Plate Heat Exchanger (BPHE) consists of several corrugated plates with a brazing material between each plate. The space between two adjacent plates forms the channel in which the fluids flow. During the vacuum-brazing process the brazing material forms the joint at every contact point between the plates. The BPHE allows media at different temperatures to come into proximity separated by channel plates that enable heat from one media to be transferred to the other with very high efficiency.

Copper brazed heat exchanger features:

Highly Efficient Thermal Design – High Performance

More Efficient Use of Materials – Cost Effective

Mass Reduction in Size – Compact, Less Space, Less Weight

Proven and Reliable Quality – Long Lifetime

Durability Flexible in Customizing – Increase Production Efficient

Pressure: 4.0Mpa

Brand: OEM
