Factory Price Automatic 15tpd Waste Plastic/Tyre Pyrolysis To Fuel Oil Plant

Factory Price Automatic 15tpd Waste Plastic/Tyre Pyrolysis To Fuel Oil Plant

Many waste plastics in our lives can use waste plastic pyrolysis plant to obtain fuel oil and carbon black, and most plastics have a higher oil yield than waste tires.

Pyrolysis machine is designed for recycling waste tire/plastic/rubber/oil sludge into fuel oil to replace landfill or incineration which causes serious environmental pollution. The main output product is fuel oil that finds good market in industrial field.

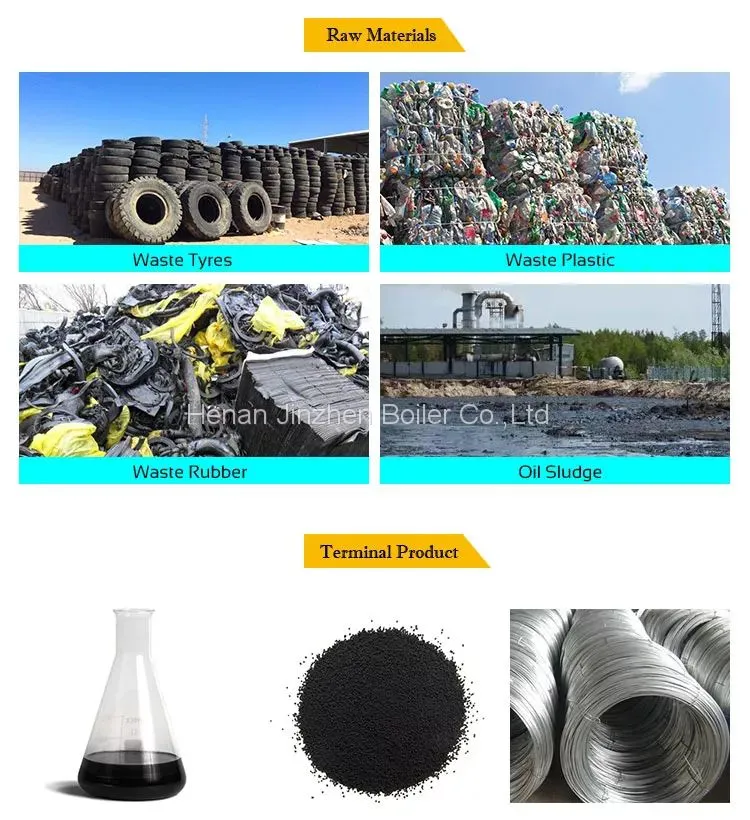

Input raw mateiral

The waste pyrolysis plant can process various kinds of waste plastic including pp, pe, ps, abs, rubber products,tires to fuel oil, carbon black, steel wire.

Output product from the waste pyrolysis plant

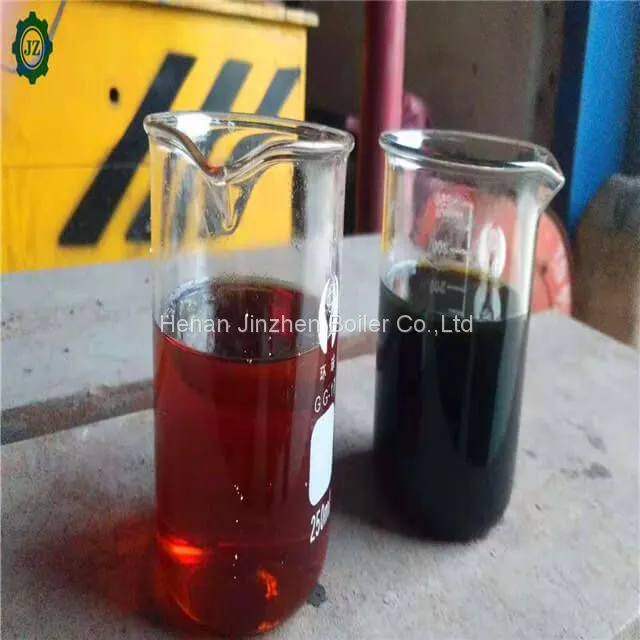

From waste tire pyrolysis plant, 4 kinds of products can be obtained: fuel oil, carbon black, steel wire, and incondensable gas. Fuel oil is widely used in industries, such as steel factory, heavy oil generator, cement factory, and boiler heating etc. Carbon black can be made into pellets for making new rubber products. Steel wire could be sold to the recycle station or steel mill for remelting. The incondensable gas is recycled to heat the pyrolysis reactor, saving energy.

Technical Parameters

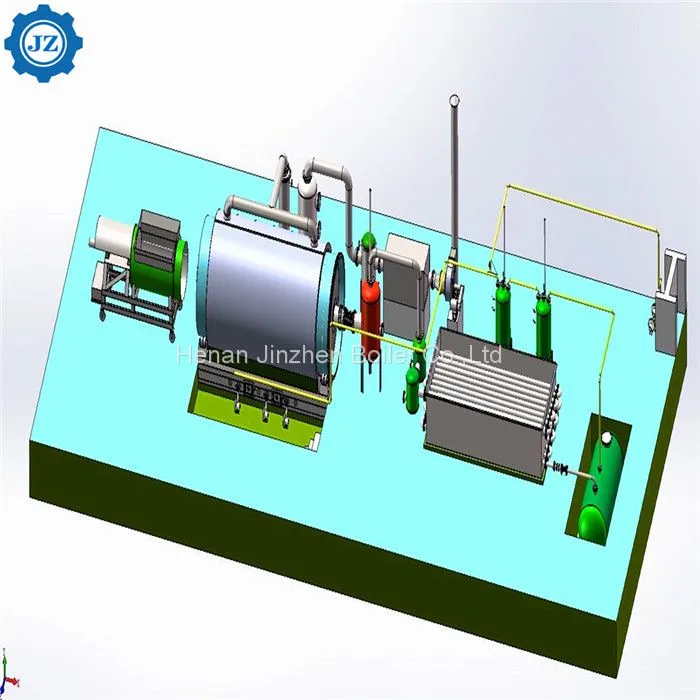

Working process of waste tyre  pyrolysis plant 3D Flow Chart of Tyre Pyrolysis Plant

2) Heating: It takes about 10 hours. Generally, when it is heated to 2 hours, oil and gas will be generated;

3) Cooling: Oil and gas are condensed into oil through a cooling system;

4) Tail gas recovery and utilization: In the process of heating and cracking, in addition to oil and gas, some flammable but non-condensable gases are also generated. We call it "tail gas". This gas can be directly recycled for heating and cracking the reactor to save Fuel, can also be used to generate electricity or burn to provide a heat source;

5) Carbon black and steel wire slag removal: When the cracking process is over and oil and gas are discharged, the remaining materials in the reactor need to be discharged to carry out a new cracking process. These residual materials mainly include carbon black steel wires used to make tires.

The cover area of waste tyre pyrolysis plant

The machine itself cover 300-400 square meters(length 20-30M ; Width 15M)

Add raw material stay, carbon black stay, big oil tank zone ,workers rest room and simple office.

At least 600-800square meters

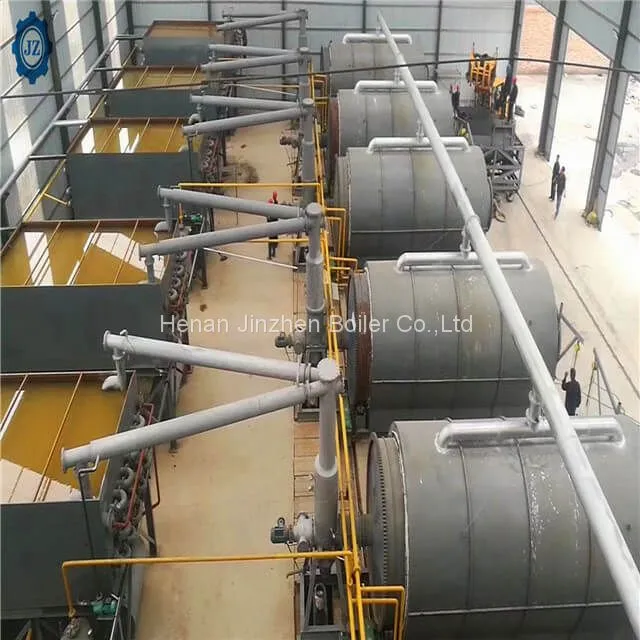

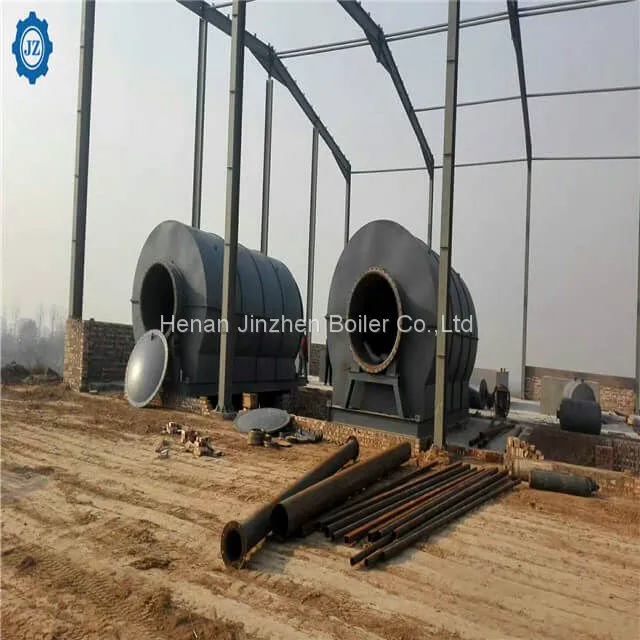

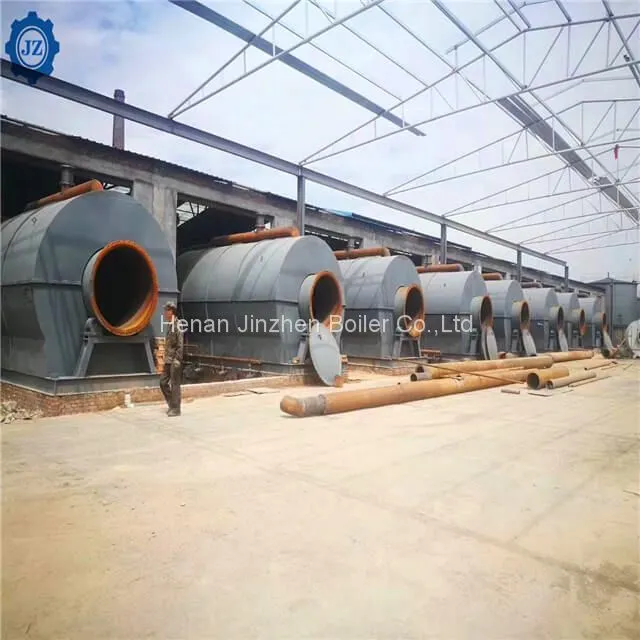

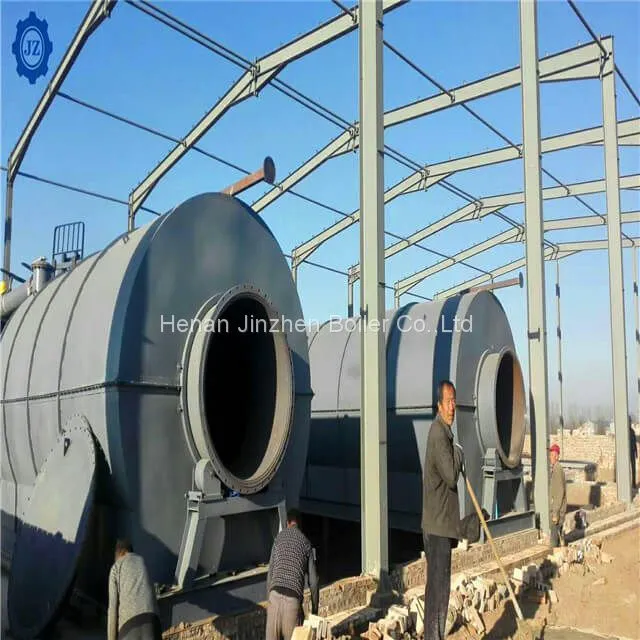

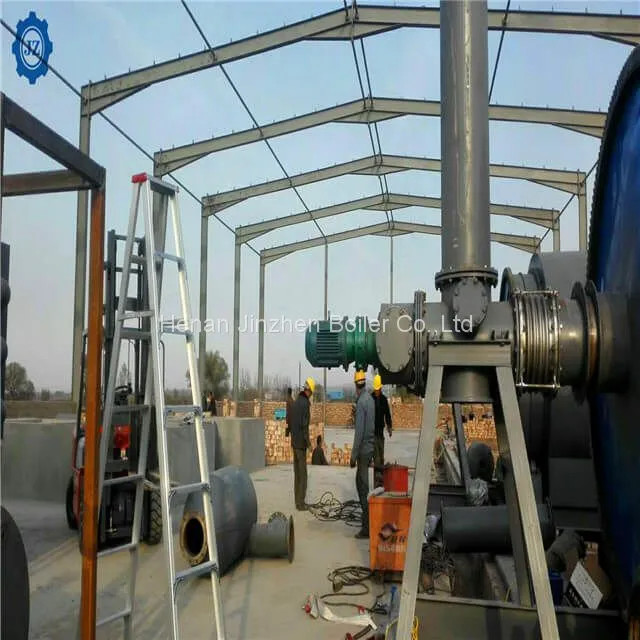

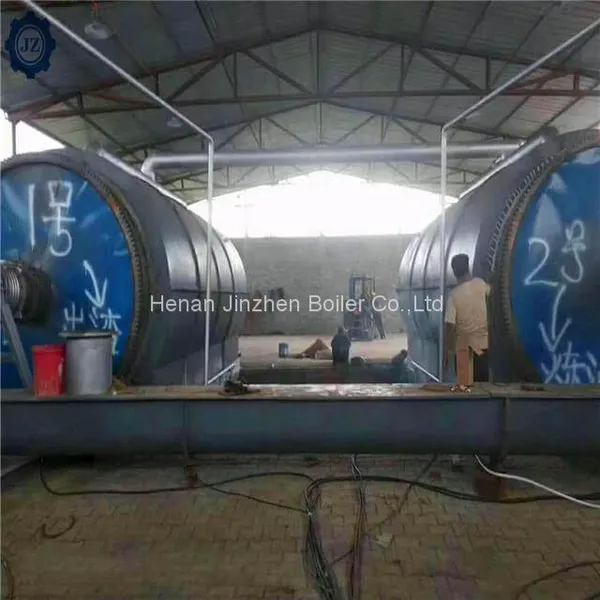

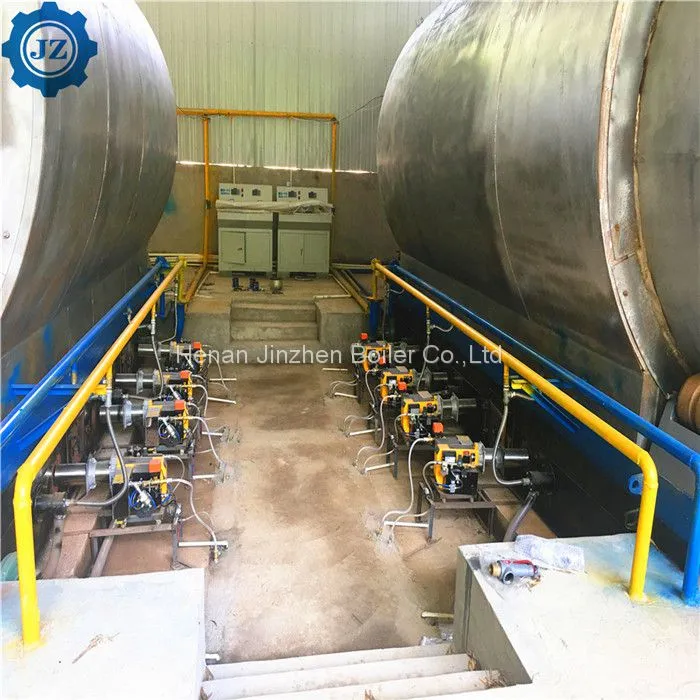

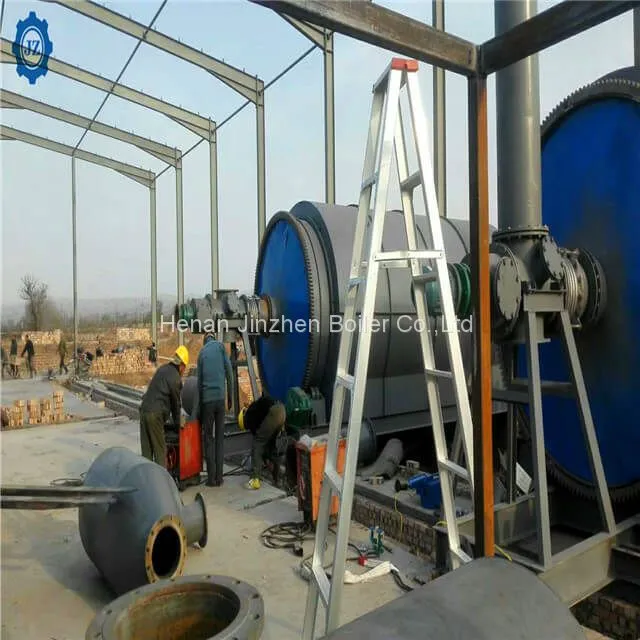

Successful Installation Cases of Waste Plastic/Tyre Pyrolysis To Oil Plant

FAQ

Q: How much is waste tyre pyrolysis plant?

A: Different capacity of tyre pyrolysis plants have different cost. And also different desgins of tyre pyrolysis plants have different cost. But if you want to save some cost, our engineer also can design the most efficient machine solutions for you. To caculate detailed cost for your referrence , please contact us directly.

Q: How can I sell the tyre pyrolysis oil and plastic oil?

A: The good sales, because oil is an energy, hotels, restaurants, bath center, diesel stoves, boilers, mostly using this oil as fuel, other power plants, ceramic plants and many other enterprises to use more of this fuel. In addition, this oil through the oil processing and reconciling national standard can be directly used as fuel engine. Buy our equipment, users share a large network, this network has sold buy.

Q: How many countries your machine have been exported and installed?

A: Our machinery have been sold to more than 70 countries and regions around the world, winning great praise and trust of our customers all over the world! For example, Italy, Romania, Macedonia, Albania, Estonia, Rusian, Egypt, Ethopia, Nigeria, Congo, Lebanon, Jordan, Pakistan, Kazakhstan, India, Tailand, Malaysia, Mexico, Panama, Guatemala, Aruba, Jamaica, Ecuador, Haiti, etc.

Q: Can we visit your factory of plastic pyrolysis plant ? And where is your factory?

A: Our office is in Zhengzhou City, Henan Province, China. From Zhengzhou International Airport to our office is just need 30min. We are responsible to pick customer up. We have sample machine in our factory for your visiting. Welcome at any time!
