4000kg 4ton/h Coal Fired Steam Boiler for Corrugated Paper Machine
DZH series coal/biomass fired steam boiler realizes almost zero pollution with the use of special dust collector solution. This series boiler is single drum horizontal type shell boiler, the combustion equipment is moving grate. The fuel could be II class bituminous coal and biomass fuel, the diameter of coal should be 6-25mm, and ash content should be less than 32.4%, and for the biomass fuel, carbon content should less than 50%, sulphur content less than 0.08%, and ash content less than 3%.
1. Steam Boiler capacity:1-4ton/h
2. Stem pressure: 0.7MPa (7bar) ,1.0MPa(10bar),1.25MPa(13bar), 1.6MPa(16bar)
3. Steam temperature output: 170℃, 184℃, 193℃, 204℃
4. Available fuel: biomass, wood pellet,peanut, paddy, rice husk,sawdust solid fuel.
5. Boiler Structure: Horizontal three pass fire tube industrial used steam boiler
6. Application:used for all kinds of industrial production and processing.
7. Standard of Design, Manufacturing and Inspection: GB150
Application:Textile Mill,Food and Beverage,Chemical,Medicine,Light Industry,Rubber,Printing and Dyeing Plant,Paper Mill,Wood Processing,Garment and Laundry etc.
Boiler specification sheet
Boiler Model | DZH1-1.25 | DZH2-1.25 | DZH4-1.25 |
Steam output (t/h) | 1.0 | 2.0 | 2.0 |
working pressure (Mpa) | 1.25 | 1.25 | 1.6 |
steam temperature (℃) | 193 | 193 | 204 |
Feed water temperature (℃) | 20 | 20 | 20 |
heat exchange area (㎡) | 25.7 | 8.409 | 8.44 |
Available fuel | BMF | ||
design thermal efficiency | 78.59 % | 74.88% | 79% |
exhaust smoke temperature (℃) | 151.9 | 168.7 | 151.4 |
Transport size (L*W*H) | 5.1 x 2.25 x 3.05m | 5.05 x 2.5 x 3.2m | 5.5 x 2.8 x 3.4 m |
Main features of coal fired steam boiler:
1. Moving grate made of cast iron, large furnace design, manual stoker, good applicability of fuel, coal, wood, wood waste, biomass, etc. can be used as fuel.
2. Few moving parts, less investment, low operating costs, low maintenance costs.
3. Forced ventilation, pressure boost fast to make sure enough output.
4. Compact structure, easy to install, reducing the cost of the boiler room and installation cost.
5. Single drum design big water volume, ability to adapt to changes in load.
6. Sufficient combustion, large heating surface, adopt efficient threaded pipe, thermal efficiency higher than the national standard.
Application for biomass steam boiler
Coal fired steam boiler is widely used in hospitals, schools, textile mills, garment factories, large supermarket, garment factories, dyeing factory, hotel, dining room, restaurant, food factory, beverage factory, soy products, meat products factory, cannery, brewery, pharmaceutical factory, packaging plant, building materials factory, paint factory, swimming pool and other places of the enterprises and institutions.

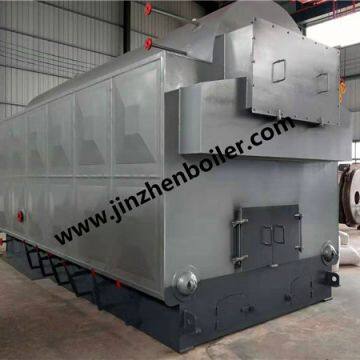

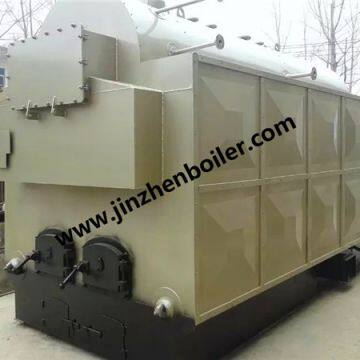

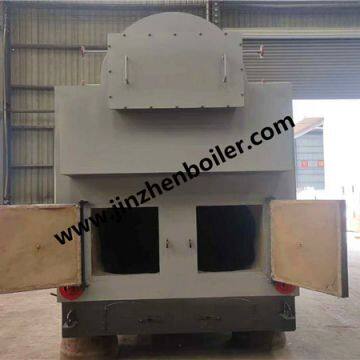

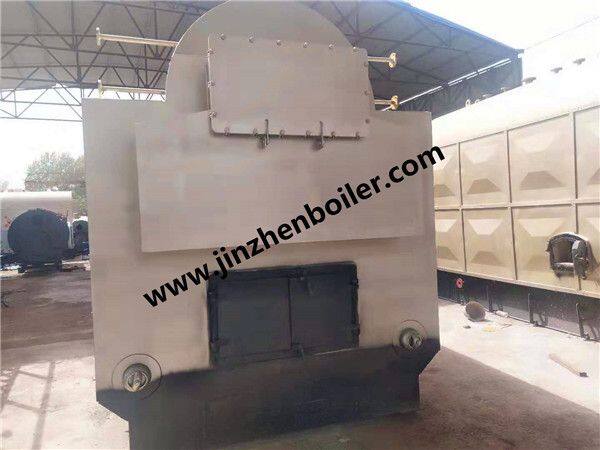

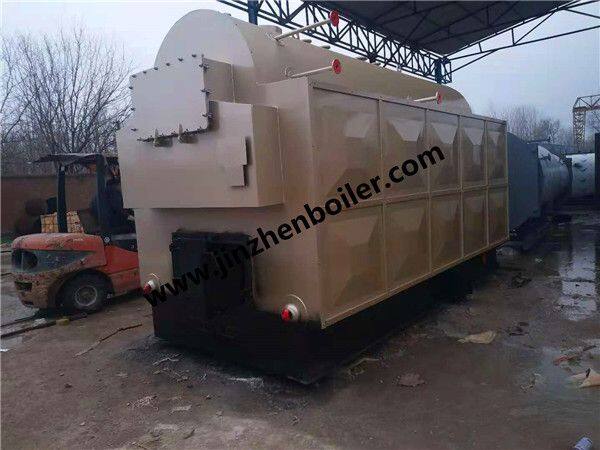

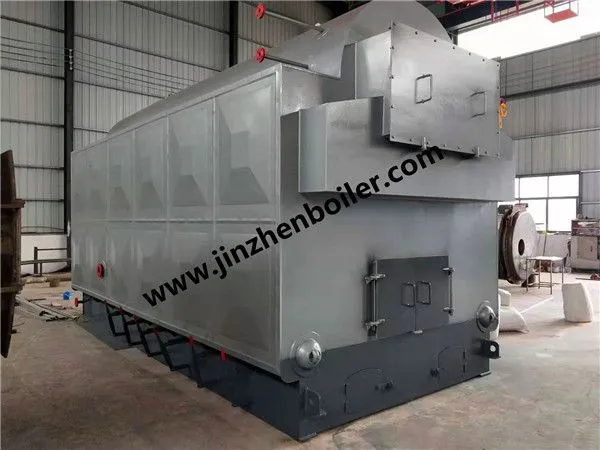

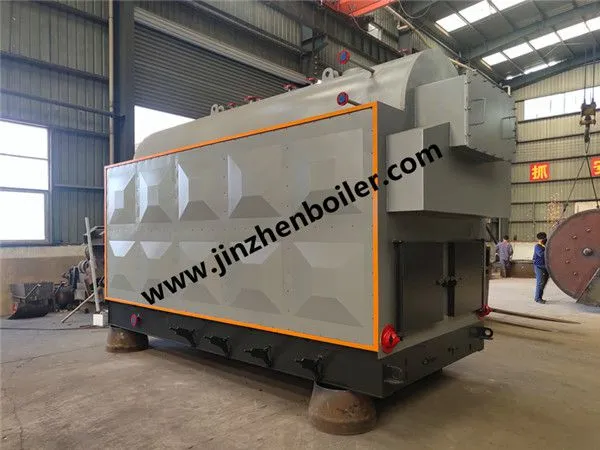

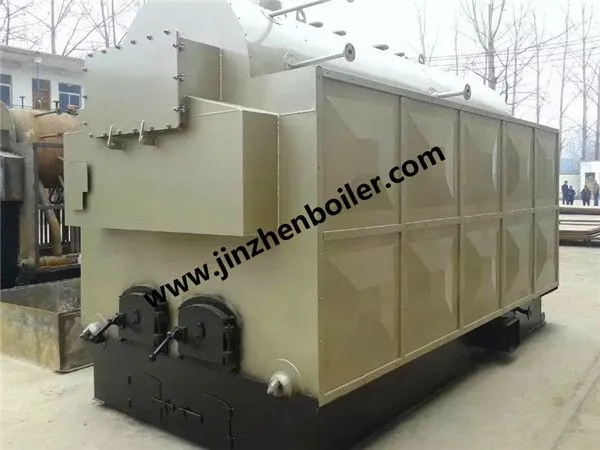

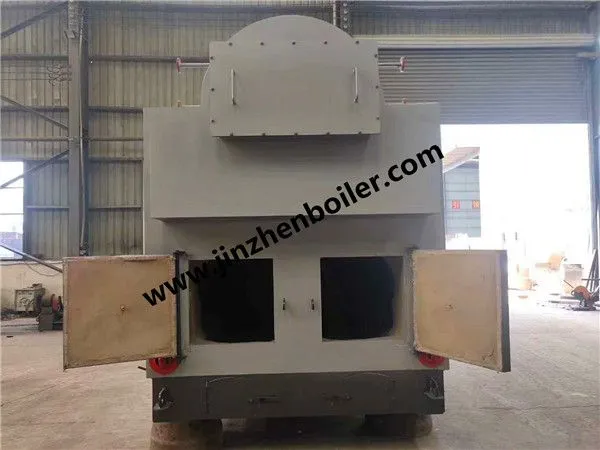

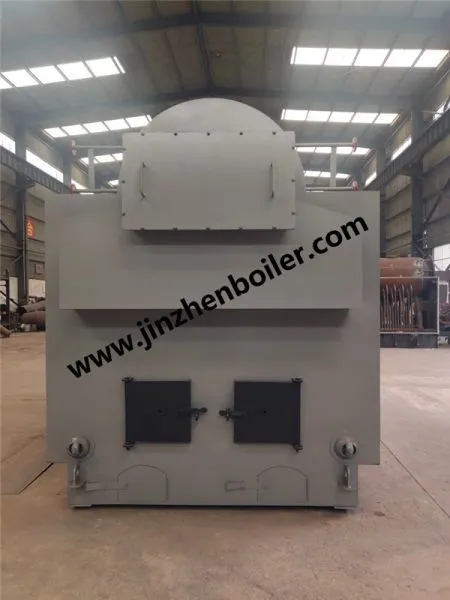

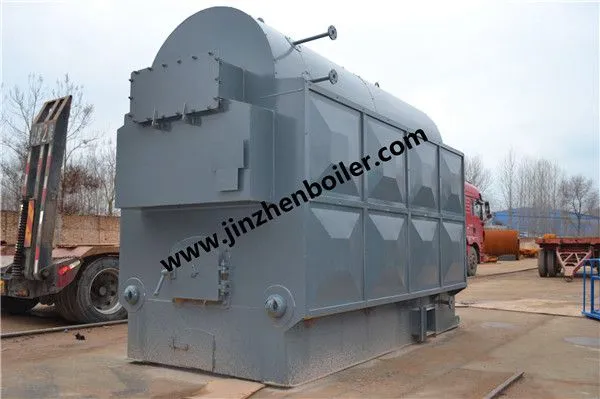

Boiler picture
