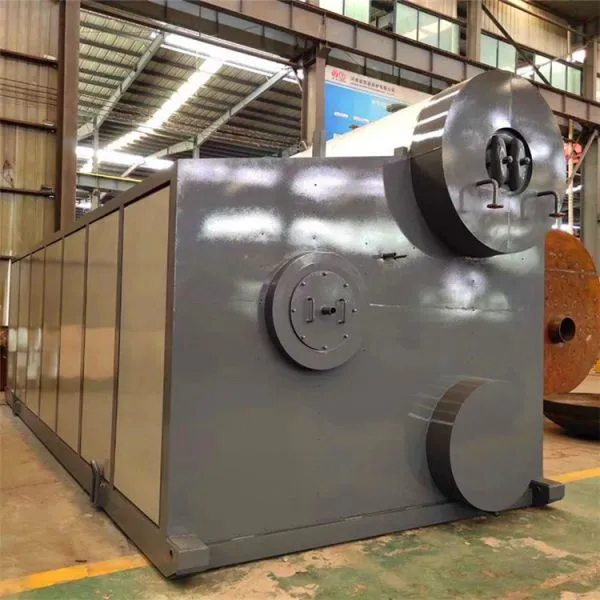

Szs Series Water Tube Gas Oil Fired Steam Boiler For Salt Production
SZS water tube steam boiler
Boiler thermal capacity:8-30 t/h
Working pressure:2.5-9.8 Mpa
Outlet temperature:194-540 °C
Available fuel:Nature gas, coke oven gas, blast furnace gas, carbon black off-gas, biogas, methanol, LPG, diesel, heavy oil, light oil, crude oil,
Available industries:Heat supplying, chemical, food, textile, printing and dyeing, cigarettes and tobacco, fodder, pharmacy, building materials, brewery, rubber, hospital et
Boiler advantage
1. It adopts double drum & "D" type layout, compact structure, small floor space and good flame fullness.
2. The furnace adopts a modular water-cooled wall structure, and the boiler adopts an airtight inner protective plate with a fully enclosed welded structure, and the furnace wall has a good airtightness.
3. The boiler layout has a large heating surface area, and the design has a large enough steam and water space to ensure the stability of the boiler parameters.
4. A flue gas condensing recovery device is arranged at the tail, which can effectively control the exhaust gas temperature and the boiler has high thermal efficiency.
5. The high thermal resistance material is used as the thermal insulation layer, and the thermal insulation performance is good. The outer layer of the boiler adopts a pressed guard plate, which has a beautiful and beautiful appearance.
6. Adopting quick installation structure, the whole boiler is designed on a strong rigid base, which is convenient for installation and transportation.
7. The furnace is equipped with inspection holes, which provides great convenience for use and maintenance. There is an explosion-proof door on the stove top.
8. Fully automatic burner is adopted, and the water supply adopts continuous electric regulation, and the combustion efficiency is high. And has multiple protection functions, safe and reliable operation.
Technique Parameters
| Model | Rated Evaporation (t/h) | Rated Steam Temperature (℃) | Working Pressure (Mpa) |
Water Supply Temperature (℃) | Heating Area(M2) | Overall Dimension (mm) | Fuel Available |
| SZS10-1.25-Y(Q) | 10 | 194 | 1.25 | 20 | 340.23 | 8500×5865×4670 | light oil,heavy oil,natural gas,coke gas |
| SZS10-4.0/400-Q | 10 | 400 | 4 | 104 | 291.9 | 10015×6055×4705 | |
| SZS10-4.9/400-Q | 10 | 400 | 4.9 | 104 | 291.9 | 10015×6055×4705 | |
| SZS15-1.0-Q | 15 | 184 | 1 | 104 | 632.99 | 7970×4628×3470 | |
| SZS15-1.25-Y(Q) | 15 | 194 | 1.25 | 105 | 475.2 | 9300×5865×4700 | |
| SZS20-1.25-Y(Q) | 20 | 194 | 1.25 | 105 | 556.64 | 12220×6895×4465 | |
| SZS20-1.25/350-Y(Q) | 20 | 350 | 1.25 | 105 | 563.01 | 12220×6390×4517 | |
| SZS20-2.45-Y(Q) | 20 | 225 | 2.45 | 105 | 441.5 | 10860×70000×4850 | |
| SZS25-1.25-Y(Q) | 25 | 194 | 1.25 | 105 | 714 | 10860×70000×4850 | |
| SZS25-2.45-Y(Q) | 25 | 225 | 2.45 | 105 | 714 | 10860×70000×4850 | |
| SZS30-1.25-Y(Q) | 30 | 194 | 1.25 | 105 | 767 | 12900×7000×4850 | |
| SZS30-2.45-Y(Q) | 30 | 225 | 2.45 | 105 | 767 | 12900×7000×4850 | |
| SZS35-1.25-Y(Q) | 35 | 194 | 1.25 | 105 | 958 | 12910×7000×4850 | |
| SZS35-2.45-Y(Q) | 35 | 225 | 2.45 | 105 | 958 | 12910×7000×4850 | |
| SZS50-1.25-Y(Q) | 50 | 194 | 1.25 | 105 | 1230 | 13200×12000×4700 | |
| SZS50-2.45-Y(Q) | 50 | 225 | 2.45 | 105 | 1230 | 13200×12000×4700 | |
| Note: Parameter is for reference only,we can design the new products based on your requirement. | |||||||
Boiler Usage
Industrial fields: thermal power plants, shipyards, petrochemical and other precision instrument manufacturers, medicine, bioengineering, food industry baking and other process steam supply; places where hot water is needed in the factory.
Living areas: steam use in laundry rooms in hotels, steam disinfection in hospital equipment, steam use in canteens, saunas and beauty salons; residential, schools, office buildings, hotels and other places that need heating; hot water supply for hotel baths and other hot water.
1. The brand of burner?
The brands of burner are Italy Baltur, Rellio, Elco, etc.
2. What is the thickness of combustion chamber?
the thickness of corrugated furnace is different based on working pressure and furnace diameter, generally, the thickness is between 10~18mm, large combustion space, and combustion sufficient.
3. What is the advantages of fire tube boiler?
This fire tube boiler has compact structure and convenient operation, strong load adaptability, lower water quality requirement, and the failure rate of it is lower than 0.1!
4. Details of electric control cabinet.
Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.
5. What is the inlet pressure of gas burner?
The inlet gas pressure is different for different capacity boiler, for example, the pressure for 2 ton steam capacity boiler is about 8~10KPa, while for 4 ton steam capacity boiler is about 18~20KPa.
