Supplying, Installing And Operating Steam Boiler Machine Natural Gas 5 Ton
- 100 Set / Sets per Month
- Qingdao or Shanghai
- T/T L/C Credit Card
- 20 days
- 5000kg Wns Series Horizontal Type Diesel Natural Gas Fired Steam Boiler Price For Milk Pasteurizer
- 5T/H 5ton 5000kg Automatic Gas or Oil Fired Steam Boiler Heating System
- 5th 5,000kg/H 5ton Diesel Powered Steam Boiler,Gas Steam Boiler For Oil Press
- Gas Oil Fired Thermal Oil Boiler Thermal Fluid Heater For Bitumen Heating Processing System
- 300000 kcal Horizontal Organic Heat Carrier Boiler Thermal Oil Furnace For Heat Exchanger
- Gas Fired Thermal Oil Boiler Hot Oil Systems For Hot Press Machine
Product Details
Brand Name: | Jinzhen Boiler | Place of Origin: | China | Model Number: | WNS5-1.6 |
Certification: | CE | Type: | Natural Circulation | After-sales Service Provided: | Engineers available to service machinery overseas |
Weight: | 5300×3200×3300 | Dimension(L*W*H): | 16 ton | Condition: | New |
Style: | Horizontal | Fuel: | Oil-fired | Usage: | Industrial |
Output: | Steam | Structure: | Fire Tube | Pressure: | Low Pressure |
Product Description

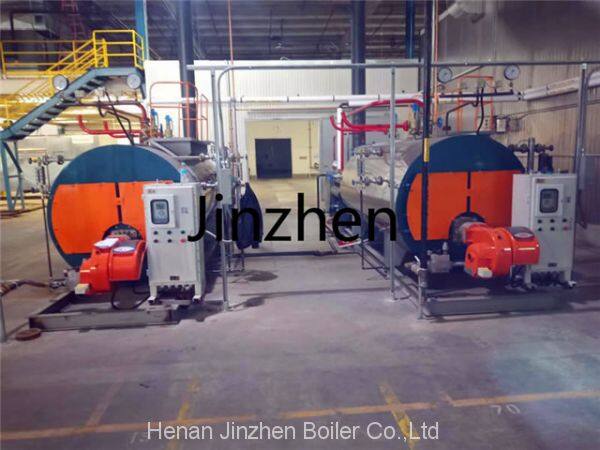

Supplying, Installing And Operating Steam Boiler Machine Natural Gas 5 Ton
WNS type oil and gas fired boiler is packaged steam boiler developed in cooperation with German technology. Its technical indexes all reach the world's advanced level.The type boiler really did clean combustion, emissions, no pollution, convenient operation, the output is enough, the ontology of pot shell all wet back downstream three return fireworks tube structure, indoor micro positive pressure combustion flame in the combustion, burning full, furnace heat load is low, the SOX. The harmful substances less NOX emissions, corrugated furnace and threaded pipe structure, which can not only improve the strength and strengthening heat transfer effect, and meet the requirements of parts heat expansion at the same time.The front and rear smoke boxes are connected by hinges, which can be opened easily and repaired quickly.Industrial gas steam boiler
Rated steam capacity:0.5ton-20ton/h;
Fuel:natural gas, diesel,heavy fuel oil, lpg,lng,cng,biogas,etc;
Rated steam pressure:1.0Mpa(10bar),1.25Mpa(13bar),1.6Mpa(16bar),2.5Mpa(25bar);
Application scope: the pharmaceutical, paper making, tobacco, printing and dyeing, garment and other industries. Civil: catering, laundry room, (hospital) disinfection, sauna, etc.
Steam Boiler Specification
Model | Rated | Rated | Rated | Thermal | Fuel Consumption | Equipment Power | Weight | ||
Capacity (t/h) | Pressure (Mpa) | Temperature (C) | Efficiency (%) | Light oil (Kg/h) | Natural gas (Nm³/h) | Burn light oil | Burn gas | (t) | |
WNS1 | 1 | 0.7/1.0/1.25 | 170/184/194 | >90 | 45-100 | 18-100 | 1.5 | 1.5 | 4 |
WNS1.5 | 1.5 | >90.2 | 101.73 | 123.47 | 2.2 | 1.5 | 5 | ||
WNS2 | 2 | 1.0/1.25/1.6 | 184/194/204 | >90.2 | 137.09 | 165.97 | 2.2 | 3 | 8 |
WNS3 | 3 | >91 | 205.75 | 249.6 | 7.5 | 7.5 | 9 | ||
WNS4 | 4 | >91 | 272.3 | 329.5 | 9 | 7.5 | 13 | ||
WNS5 | 5 | >91.5 | 134-402 | 80-500 | 17.2 | 15 | 15 | ||
WNS6 | 6 | >91.5 | 134-402 | 80-500 | 15 | 15 | 17 |
Performance Features:
1. Steam boiler
Horizontal internal combustion three return journey full wet back design, corrugated furnace, with good thermal retrability, water cooled retrorse chamber, retrorse chamber and back tube plate butted on the edge, low stress, more reliable quality.
2, large diameter corrugated furnace
The boiler combustion chamber is composed of a large diameter full ripple furnace with large combustion space, complete fuel combustion, effective heat absorption and thermal expansion, and large radiation heating surface.
3. Sufficient heat
The heating area of the boiler is designed to be more than 25 square meters/ton, fully absorbing effective heat, low smoke exhaust temperature, small heat loss, ensuring sufficient output and high efficiency.
4. Steam quality
Pot shell diameter, large water capacity, strong adaptability to load changes, stable output, steam space volume, soda interface and steam outlet net distance is high, low steam humidity.
5. Multi-functional safety and explosion protection device
The back plate of the boiler is equipped with the explosion-proof device which is connected with the furnace to prevent the high energy of the discharge moment when the fuel is violently deflated in the furnace, and it can automatically reset. Meanwhile, it has the function of the fire-viewing mirror and the maintenance channel. It makes use of the adjustment of the burning flame in operation, and makes the furnace inspection and maintenance convenient.
6. Safe precipitation time is sufficient
The position of the boiler combustion chamber is arranged, the water level is determined in accordance with the regulations, and the water level fluctuation time requirements strictly in accordance with the international general norms and standards, with sufficient safe precipitation space, to ensure the operation safety of the boiler.
7. Boiler maintenance is convenient
The top of the boiler is provided with manhole, and the front and rear of the boiler is provided with hand hole device, which is convenient for inspecting and cleaning the device inside the boiler and the bottom of the boiler.
8. Unique seal of front and rear smoke box
Smoke box with double open door, easy to open, multi-level labyrinth seal, special sealing material, good compression performance, completely prevent smoke leakage, can be used again.
9. Reliable protection of pressure and water level
Multiple control protection for boiler pressure and water level, as well as ultra-smoky temperature protection ensure the safety of boiler operation.
10. Advanced automatic control
The boiler controller is made of Siemens and Delixi electric components with reliable performance.Chinese and English menu with LCD display, touch screen with remote control.
Gas/oil fired steam boiler is widely used in hospitals, schools, textile mills, garment factories, large supermarket, garment factories, dyeing factory, hotel, dining room, restaurant, food factory, beverage factory, soy products, meat products factory, cannery, brewery, pharmaceutical factory, packaging plant, building materials factory, paint factory, swimming pool and other places of the enterprises and institutions.
