SDL manual water filter
Rotary water filter
SDL/NZL/ZLS/LS

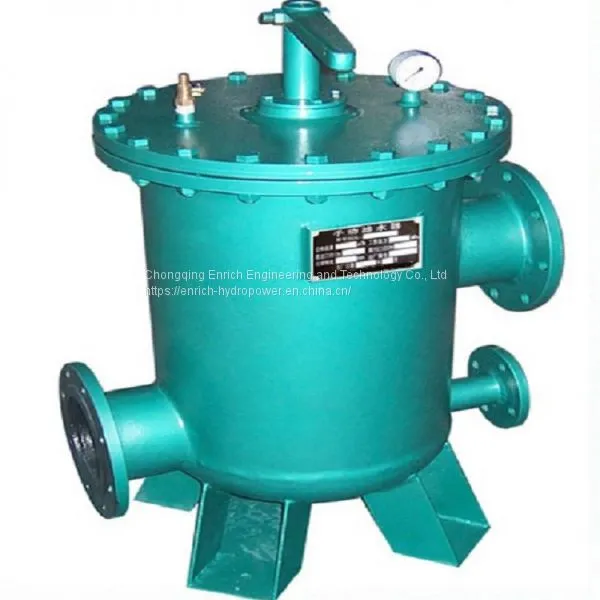

SDL manual water filter is mainly used for filtration of good quality water of water supply systems of small hydropower stations. Its filtration mechanism and working principle are exactly same with DLS completely automatic water filter, except that its sewage discharge process is manually periodically operated. When the water filter needs to be drained, manually open the drain valve, and then manually turn the handle of the drain device on the top of the water filter, rotating one turn in sequence is completing a draining process.
Technical parameters
Nominal design pressure: 1.0Mpa, 1.6Mpa
Working pressure: ≤1.0Mpa, ≤1.6Mpa
Water supply pressure (inlet water pressure): ≥0.25Mpa
Water filter outlet back pressure: ≥0.15Mpa
Pressure loss: 0.02~0.1Mpa
Filtration accuracy: 1~6mm or more higher

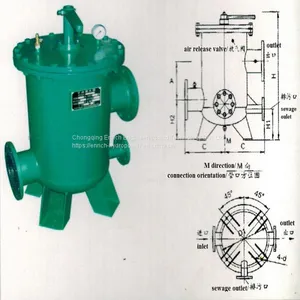

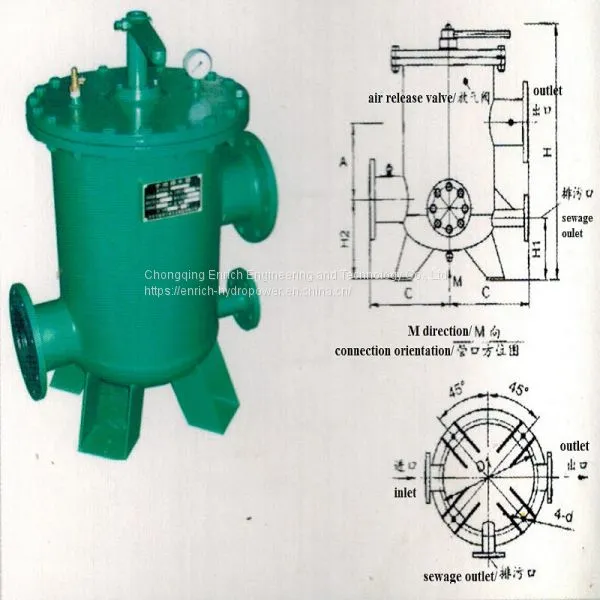

Installation dimensions drawing
Technical parameters table
|
model |
flow |
inlet& outlet diameter |
Drain diameter |
Installation dimensions |
||||||
m3/h |
mm |
mm |
C |
A |
H |
H1 |
H2 |
D1 |
4-d |
|
SDL-50 |
22 |
50 |
25 |
260 |
226 |
786 |
346 |
348 |
320 |
Φ23 |
SDL-80 |
54 |
80 |
40 |
260 |
226 |
786 |
346 |
348 |
320 |
Φ23 |
SDL-100 |
84 |
100 |
50 |
310 |
246 |
826 |
346 |
355 |
360 |
Φ23 |
SDL-125 |
116 |
125 |
50 |
330 |
271 |
966 |
321 |
385 |
420 |
Φ23 |
SDL-150 |
190 |
150 |
50 |
370 |
271 |
996 |
321 |
385 |
420 |
Φ23 |
SDL-200 |
340 |
200 |
80 |
370 |
286 |
1086 |
356 |
425 |
450 |
Φ23 |
SDL-350 |
1040 |
350 |
125 |
440 |
536 |
1486 |
456 |
515 |
620 |
Φ23 |
SDL-400 |
1360 |
400 |
125 |
500 |
562 |
1671 |
526 |
605 |
680 |
Φ25 |
SDL-500 |
2100 |
500 |
150 |
560 |
676 |
1956 |
566 |
705 |
800 |
Φ27 |
SDL-600 |
3050 |
600 |
200 |
700 |
781 |
2256 |
616 |
790 |
950 |
Φ27 |
