Hydraulic automatic double-end tube chamfering machine
- 80 Set / Sets per Month
- ShenZhen/GuangZhou
- T/T Credit Card
Product Details
Brand Name: | Chine Chern | Model Number: | JC-85A-550 |
Product Description

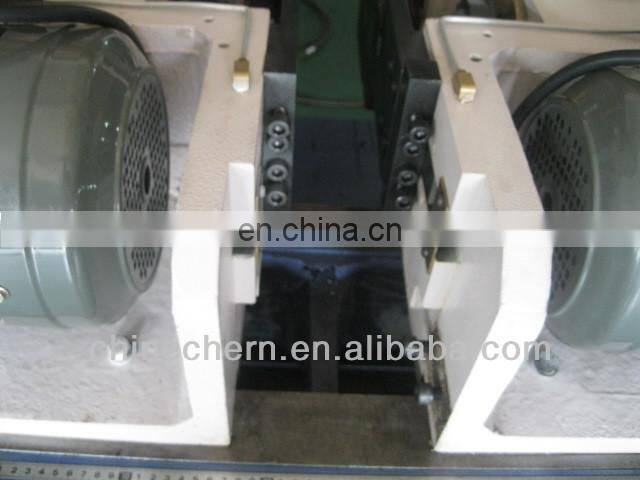

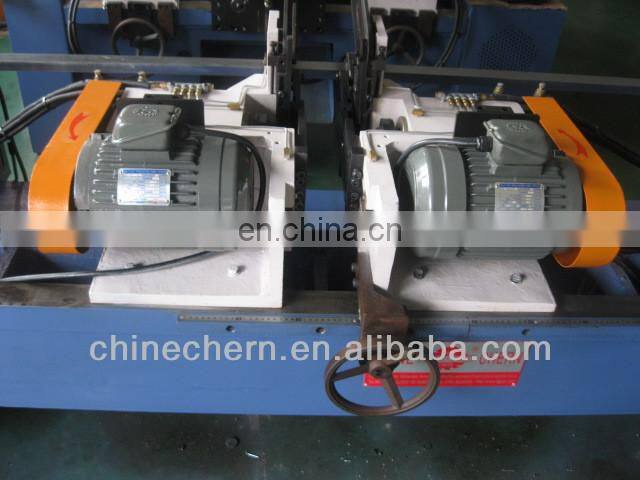

Hydraulic auto double-end tube chamfering machine
Characteristics:
| ||||||
AUTO MATIC MODEL Motion cycle includes automatic material infeed through a channel (automatic feeder is optional). Automatic cutting feeding/retracting and automatic workpiece outfeed. Continuous motion cycles provide high machining speed, high accuracy, reduced labor requirement while greatly upgrading productivity. |

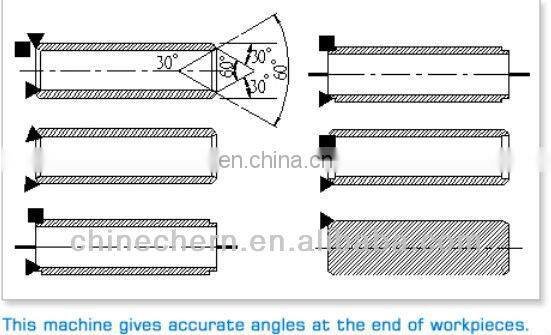

NORMAL METHOD FOR PIPE END CHAMFERING
Technical Parameters:
Model | JC-85A-550/1000 |
Host motor | 2HP/6P*2 |
Pipe diameter | ¢8mm- ¢ 80mm |
Length of pipe | 80mm-550mm |

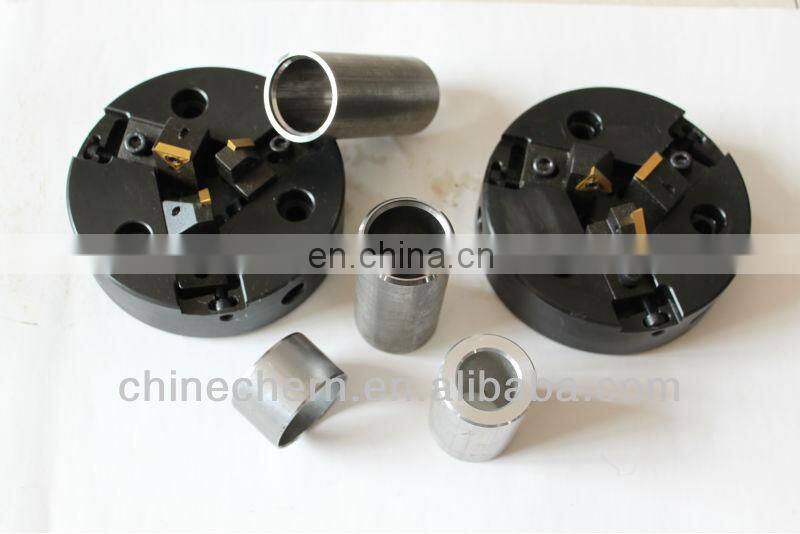

Cutterhead | Standard cutterhead |
Blade | Tungsten carbide throw-away blade |
Hydraulic cylinder | 0.75KW/20Lite pump 20-30kg/cm2 |

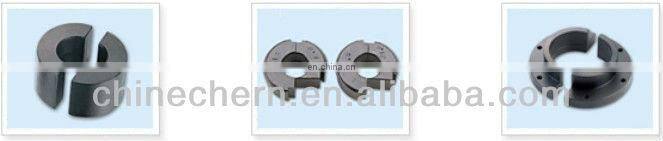

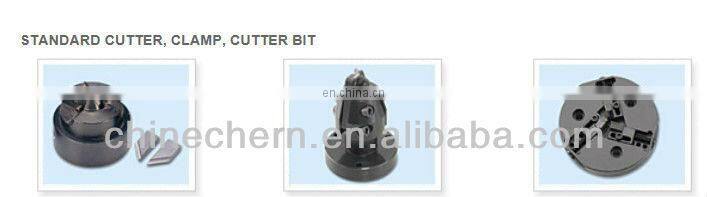

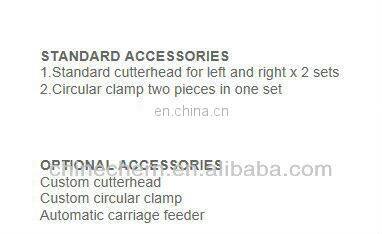

Standard fittings | 1. one set clamps 2.one set cutter and one set blade |

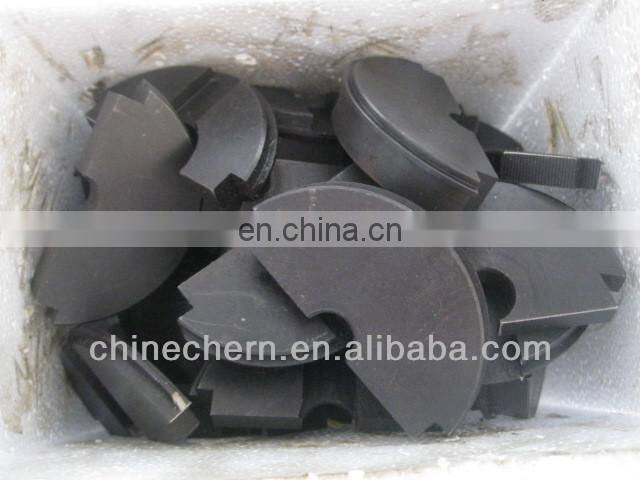

Special fittings | 1.Different sizes clamps 2.special cutter 3.automatic feeding system |
Machine weight | 800kg |
Machine Dimension | 2100mm×1100mm×1100mm |

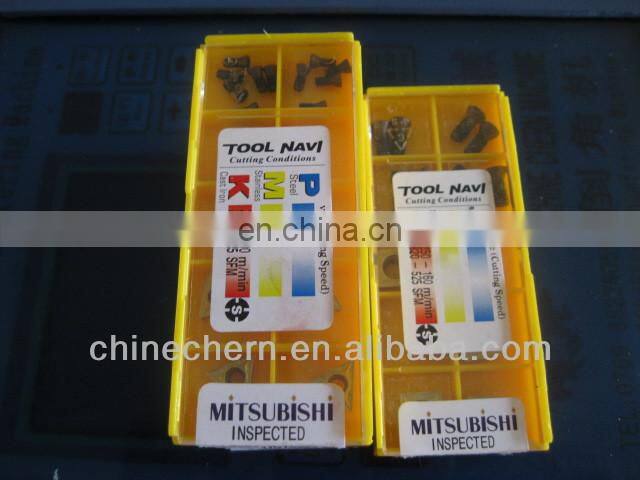

Spare parts & ATF
This custom machine is designed by customer providing workpieces specification and drawing. Please specificate the OD, ID, and end-face and outter angle of the workpiece. According to customers special needs, we made custom machine.
Certificate :
Company Profiles :
with decades hard work and accumulated experiences, We have acquired fourty invention
patent,Utility model and appearance patent.Meanwhile, We have passed ISO9001:2008 quality system certificate, Government-issued Guangdong Province private technology enterprises, high-
tech enterprises, private enterprises and other honors.
The products include Super hard metal bar cold saw machine series, Chipless metal pipes circular saw machine series,Copper aluminum non-ferrous high-speed precision circular saw machine series,Metal pipe/bar end chamfer machine series,Circular saw blade sharpening machine series,Automatic pipe bending and forming Machine series , Six categories eighty models , Also provide customized complex process
Machine , all kinds of circular saw blade . Wide Application range contains Nautical
aviation and aerospace industry, military industry, high-speed rail and rail transportation
industry, auto industry, precision parts, medical and fitness equipment industry, mechanical and electrical and electronic industry, lighting and furniture decoration forty industries .
