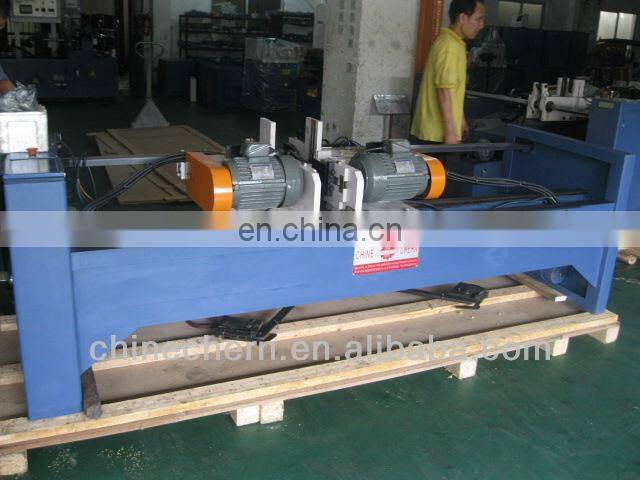

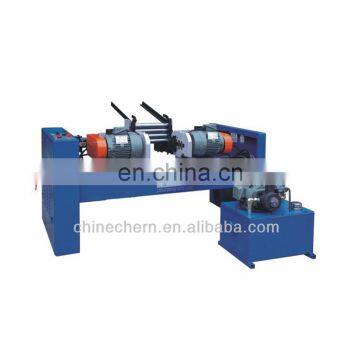

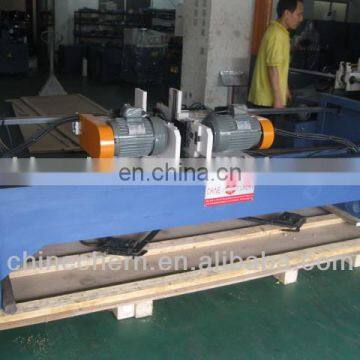

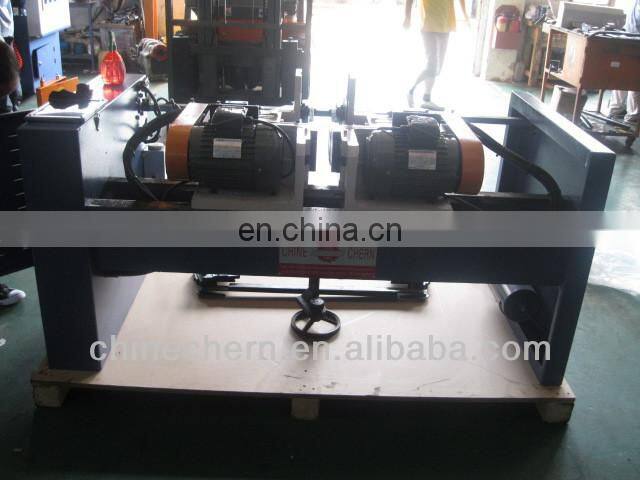

JC-50A-550 Double Head High Speed Tube Chamfering Machine
- ShenZhen/GuangZhou
- T/T Credit Card
You May Like
-
JC-110SA Single Head Hydraulic Pipe Chamfering Machine
-
Automatic Hydraulic Single Side Chamfering Machine
-
JC-85A-1000 Automatic Double End Chamfering Machine
-
Full Automatic Hydraulic Double End Chamfering Machine
-
Hydraulic Single End Tube/Bar Chamfering Machine
-
Good Performance Double Head Chamfering Machine
Product Details
| Brand Name | Chine Chern |
Product Description

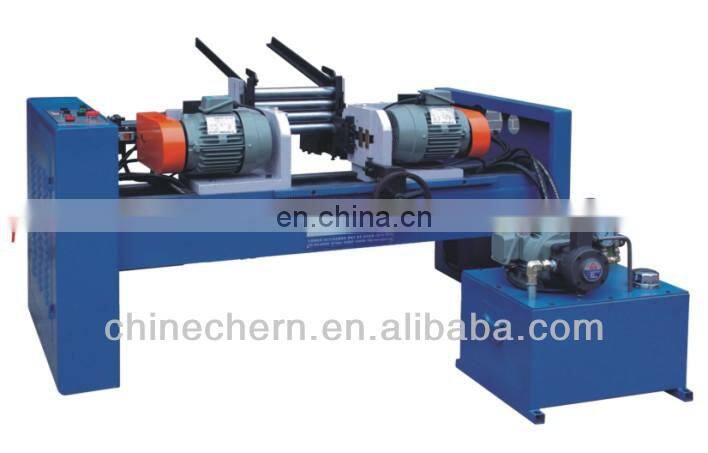

JC-50A-550 Double Head Tube Chamfering Machine
Characteristics:
1.Manual feeding,Automatically clamp and chamfer
2.It is suitable for chamfering steel pipe,Iron pipe,stainless steel pipe,aluminium pipe
3. Automatic clamping the pipe/bar;
4. Automatic advance of tool;
5. Chamfering angle can be changed by change the blades;
6. Automatic feeding of pipe;
7. Interior and exterior angle chamfering of tube and rod,Milling the end finish at one time.
8. The pipe chamfering machine can equably finish the process of tube end and its outer angle, inner angle at one time;
9. It adopts the variety of strap wheel to transform several rotating speed and guarantee the longest use life of blade according to different metal blade;
10. The pipe chamfering machine is easy to adjust slowness of speed to reach perfect process.
11. Automatic Feeding Loader can be made as per requirement .
Parameters:
| Model | JC-50A-550/1000/1500 |
| Host motor | 2HP/4P*2 |
| Pipe diameter | ¢6mm- ¢ 50mm |
| Short pipe length | 30mm-110mm |
| Long pipe length | 110mm-550mm/1000mm |
| Cutterhead | Standard cutterhead |
| Blade | Tungsten carbide throw-away blade |
| Compressed air | 0.6-0.8MPa 120ml/min |
| Standard fittings | 1.one set clamp 2. one set cutterhead and blade |
| Special fittings | 1.Clamps of different sizes.2,special cutterhead 3.automatic feeding system |
| Machine weight | 1000kg |
| Machine Dimension | 2800mm×900mm×1100mm |

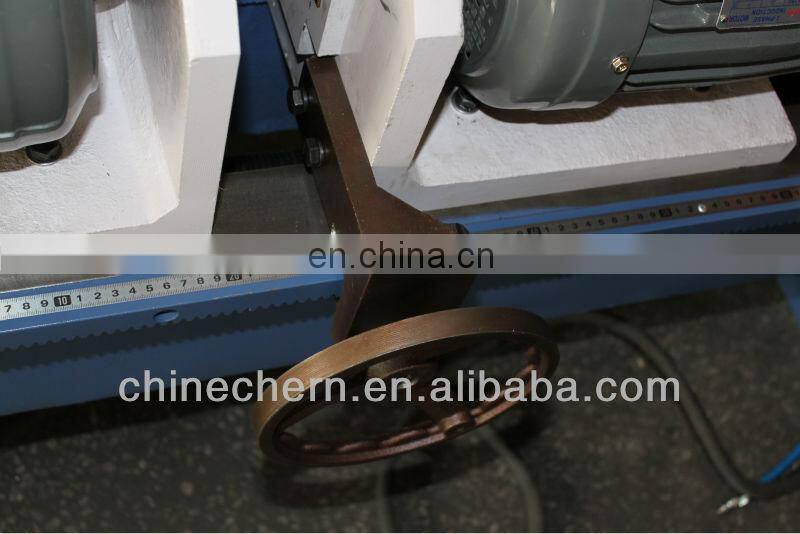

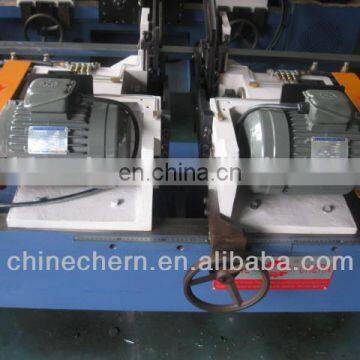

Parts :

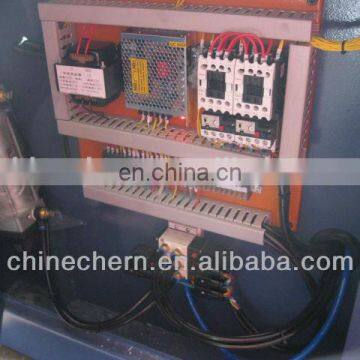

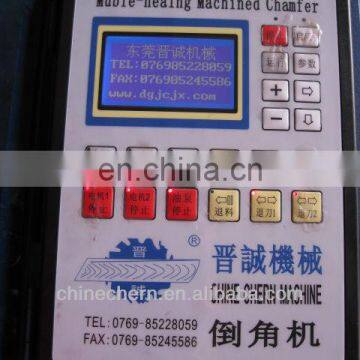

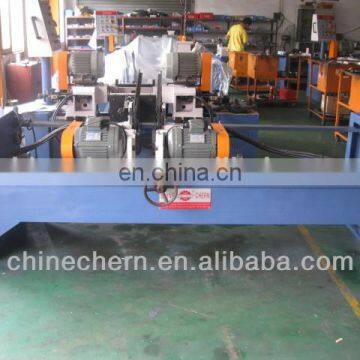

Machine Details :
Samples:
