Alloy Stainless Steel Rod Double End Chamfer Machine
- 80 Set / Sets per Month
- ShenZhen/GuangZhou
- T/T Credit Card
- JC-50A-550-Double-head automatic chamfering machine(hydraulic-type)
- NC-85A-300-Double-head automatic chamfering machine(hydraulic-type)
- Pneumatic-type JC-50A-550 Double automatic chamfering machine
- JC-85A-550-Pneumatic-type double automatic chamfering machine
- Customized Semi automatic big size pipe/bar chamfering machine
- JC-110SA-Semi-automatic single-head pipe chamfering machine
Product Details
Brand Name: | Chine Chern | Place of Origin: | Guangdong, China | Model Number: | NC-85A-300 |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Alloy Stainless Steel Rod Double End Chamfer Machine
Main Features:

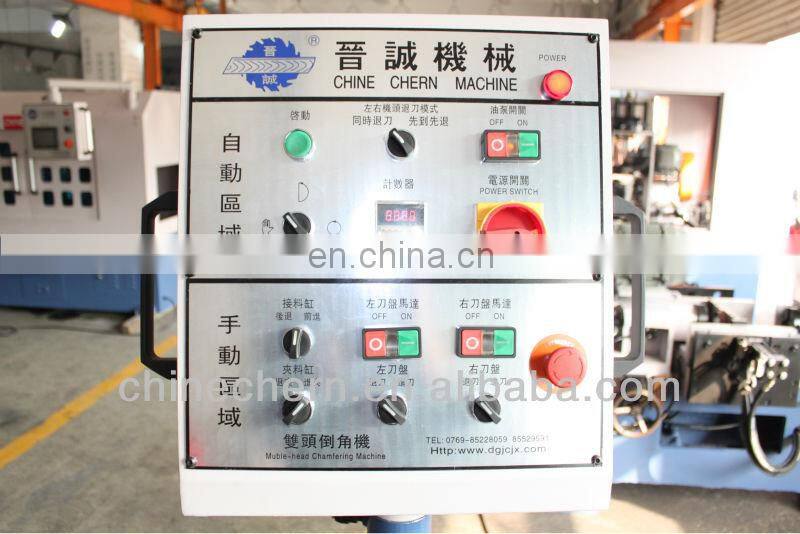

1. Japan Mitsubishi PLC Control ,It is simple to operate and maintain.
2.Manual feeding, Automatic clamping the pipe/bar; also can choose the feeding equipment
3. Automatic advance of tool, Fully hydraulic clamping and chamfering ,All can be controlled by oil cylinder .
4.It is suitable for chamfering steel pipe,Iron pipe,stainless steel pipe,aluminium pipe ,
Also can chamfer threaded rod
5. Chamfering angle can be changed by change the blades;

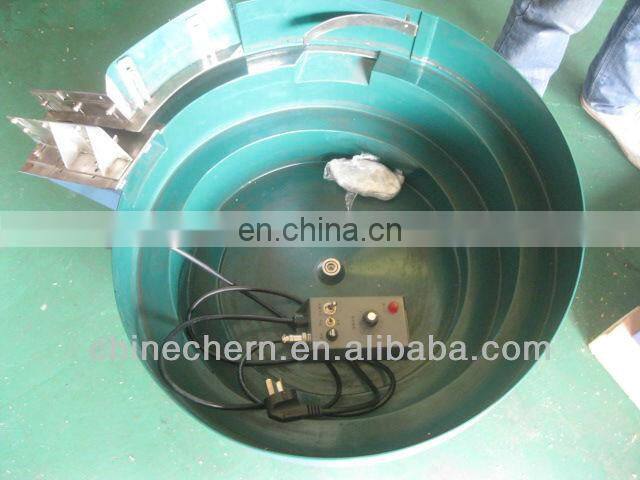

6. Automatic feeding of pipe can be controlled by ATF & Vibration Disk Plate
7. Smooth and uniform bevel edge by specific cutterhead,knife holder and blade
8. Interior and exterior angle chamfering of pipe end and tube end,and the milling of the
end face can be finished at a single time .
9. It adopts the variety of strap wheel to transform several rotating speed and guarantee the longest use life of blade according to different metal blade;
10. The pipe chamfering machine is easy to adjust slowness of speed to reach perfect process.
11. The special design of gripper die and blade surface makes sure that the processed object and centre line of blade surface maintain still;
12. The pipe chamfering machine is easy to adjust slowness of speed to reach perfect process.
Parameters:
Model | NC-85A-300 |
Host motor | 3HP/4P*2 |
Pipe diameter | ¢6mm- ¢ 80mm |
Length of pipe | 25mm-300mm |
Cutterhead | Standard cutterhead |
Blade | Tungsten carbide throw-away blade |
Hydraulic motor | 0.75KW/20Lite pump,Work pressure 20-30KGS |
Standard fittings | 1.one set clamp 2.one set cutter and one set blade |
Special fittings | 1.clamps of different sizes.2,special cutter 3.automatic feeding system |
Machine weight | 2300kg |
Machine Dimension | 2100mm×1670mm×1660mm |

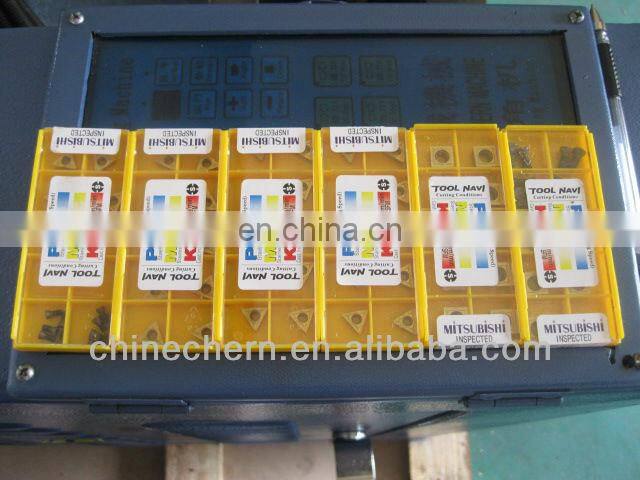

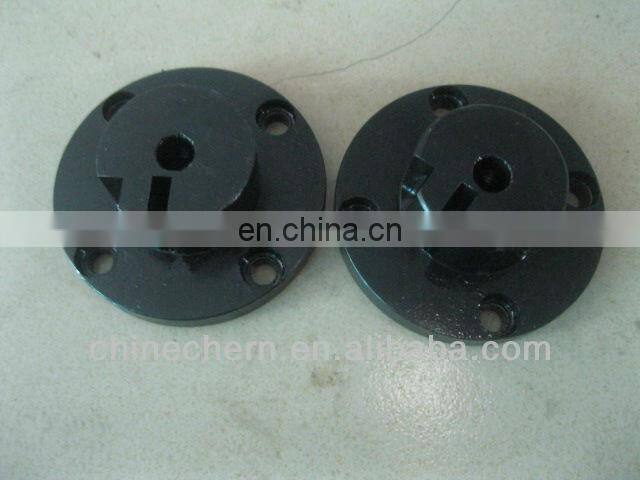

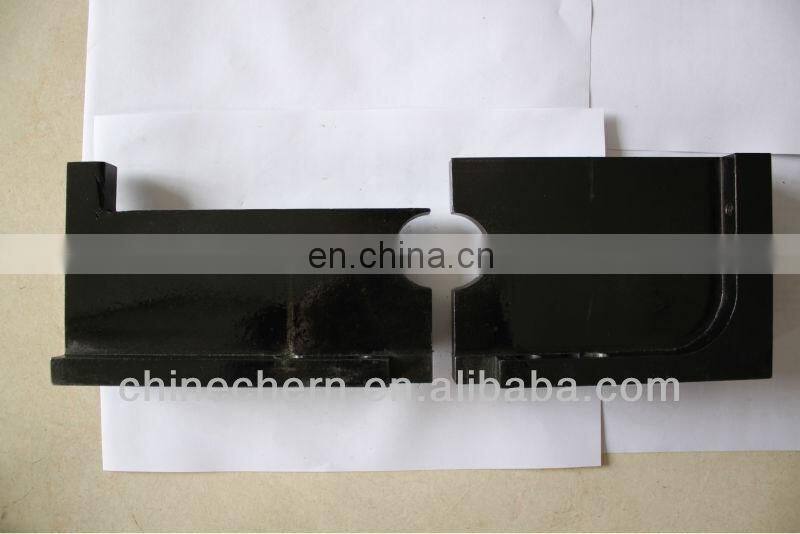

Spare Parts:

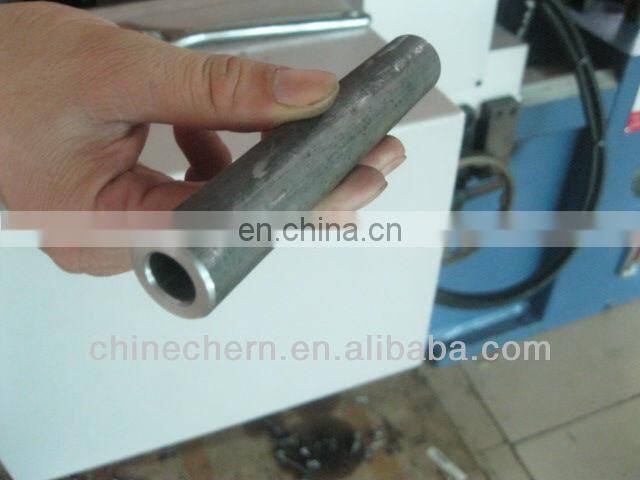

Samples:

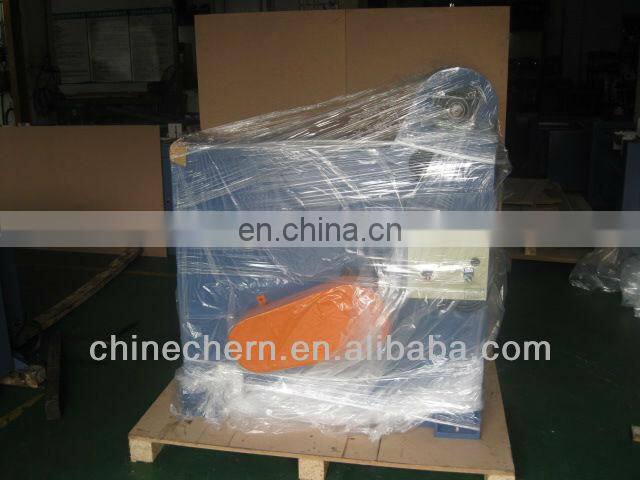

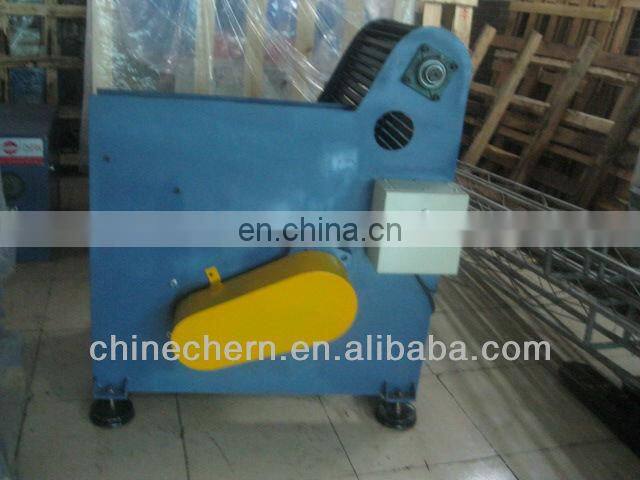

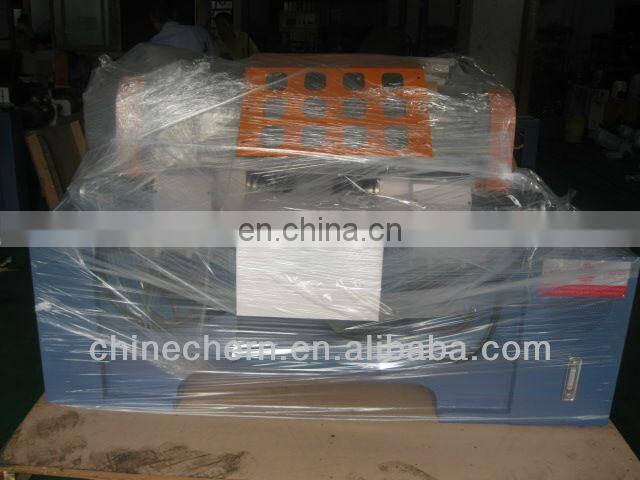

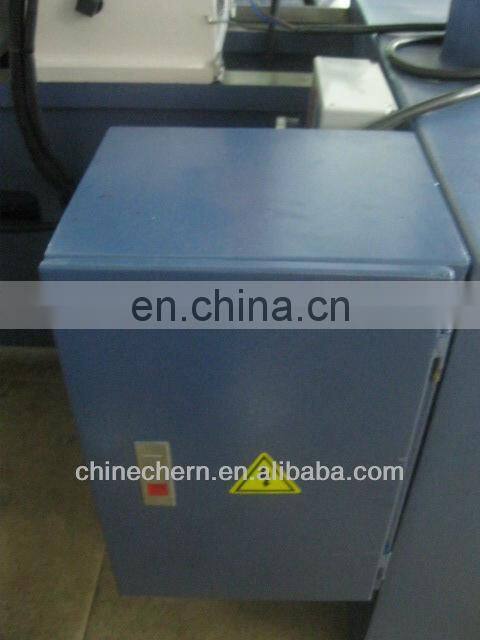

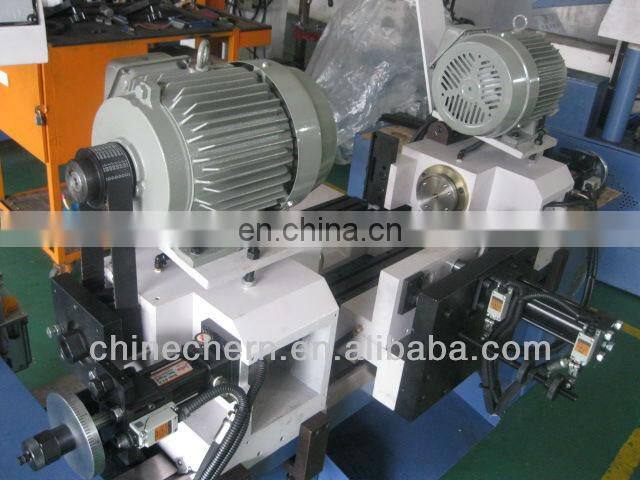

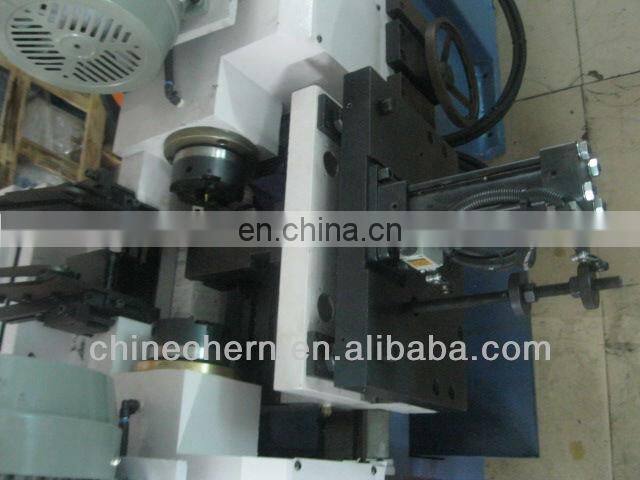

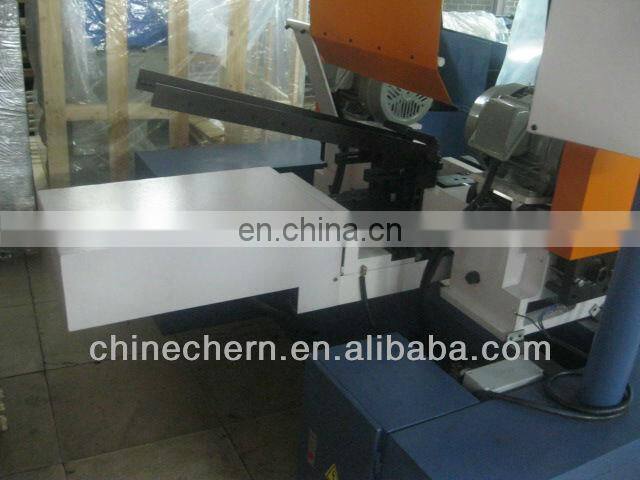

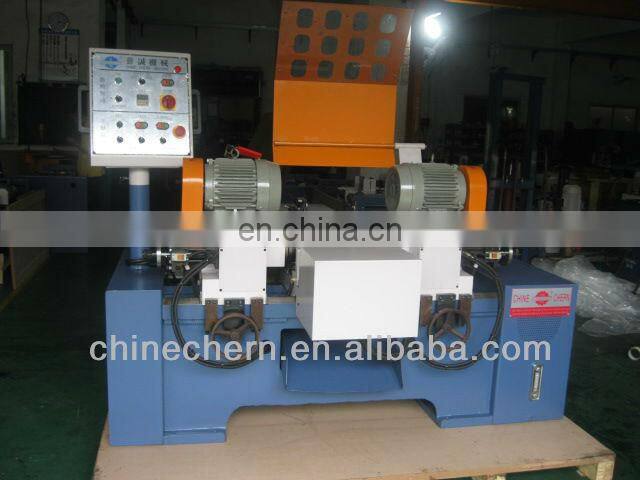

Machine Photo & Packing:
