FK-25 double head hydraulic copper tube end closing machine
Main features
1. The Hydraulic Metal Circle Tube Sealing Machine broke tradition that does not need use plastic or solder; it still can seal the end of pipe or leave a small hole to your requirements.
2. Apply for a variety of tubes, such as iron pipe, aluminum, copper and other materials.
3. Two-head design, movement by turn, these speed up the processing time, labor-saving, fast, convenient and no noise.
4. Automatic movement operation, safety and convenience, non-technical personnel also can operate freely.
5. Processed quality is safe, looks is beautiful, don’t have the risk of plastic cover off or skin scratched.
6. Cooling system can prevent hydraulic pressure is reduced, the hydraulic
Technical parameter
| model | FK-25 |
| pipe diameter | 6-25.4mm |
| pipe wall thickness | 0.5-2.0mm |
| nominal voltage | 380V,50HZ |
| oil pump motor 4P 1.5kw | 1420r/m |
| mandrel motor 4P 1.5kw | 1420r/m |
| cooling pump motor 4P 40w | 380V,50HZ |

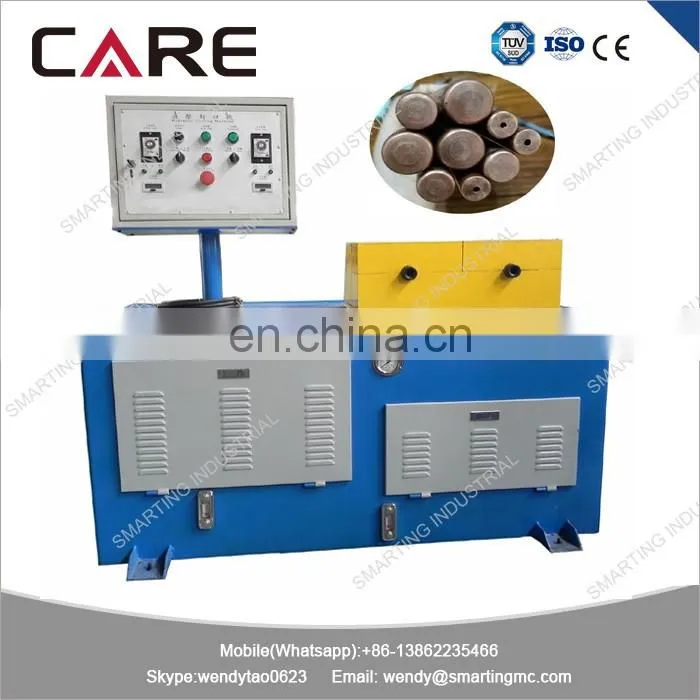

Machine photo

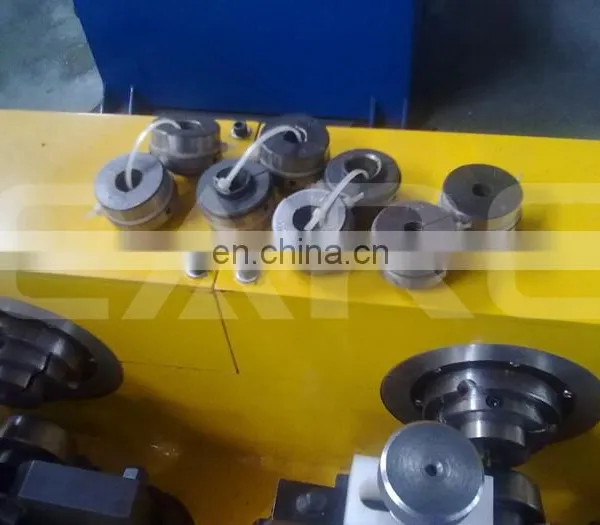

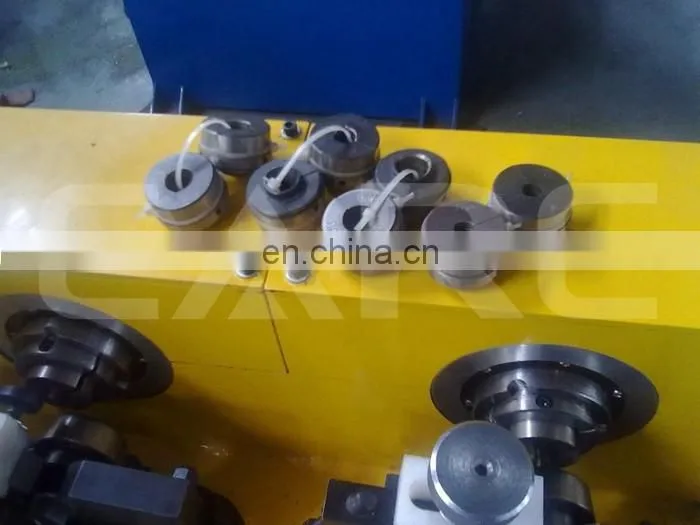

Sealing molds

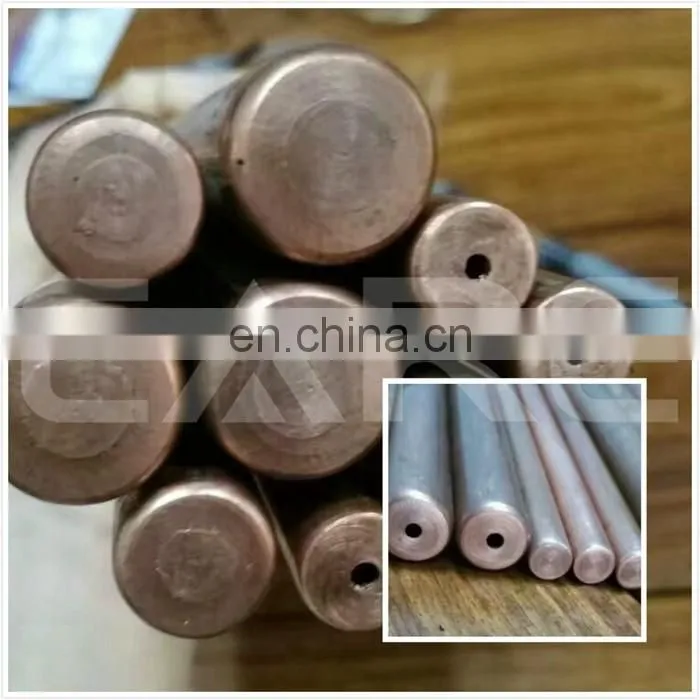

Pipe samples
To know more information, please conact us at any time.
