Well Drilling Rig 200m Truck Mounted Drilling Rig Reasonable Price
- Chongqing
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 7 days
You May Like
-
Chinese Supplier's Water Well Drilling Machine Tricycle Mounted Drilling Rig Prices
-
Hydraulic Borehole Drilling Equipment GD-100 Water Well Drilling Rig for Sale
-
Long Stroke Deep GroundWater Drilling Water Well Drilling Rig Factory Price
-
Portable Drilling Rig Full Hydraulic Tunnel Drilling Rig
-
GQ-15 Engineering Drilling Rig Water Drilling Rig Price
-
Deep Borehole Drilling Equipment Engineering Drilling Rig Low Costs
Product Details
| Brand Name | GOLD | Place of Origin | China | |
| Model Number | XYC-200 | Type | Core Drilling Rig | |
| Certification | ISO9001 | After-sales Service Provided | Engineers available to service machinery overseas | |
| Warranty | 1 Year | Weight | 4000kg | |
| Dimension(L*W*H) | 1110*725*965mm | Power Type | Diesel | |
| Voltage | 380V | Usage | Coal | |
| Condition | New | Power(W) | 16.2kW |
Product Description

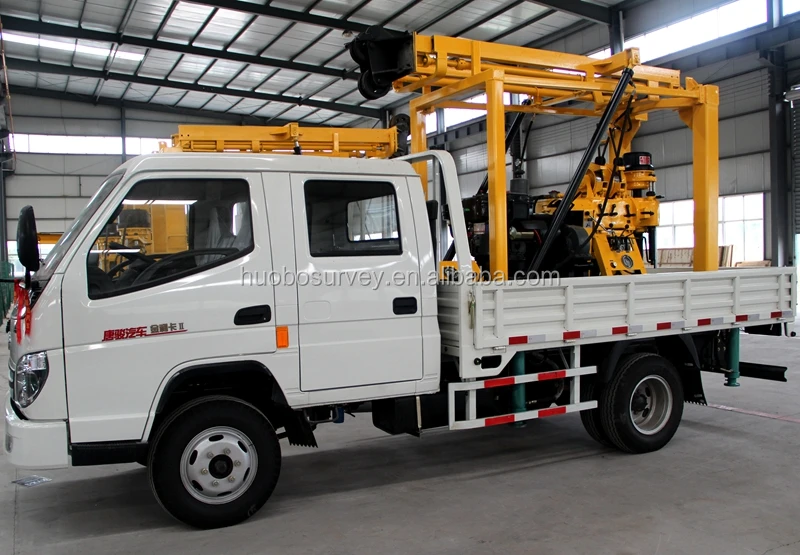

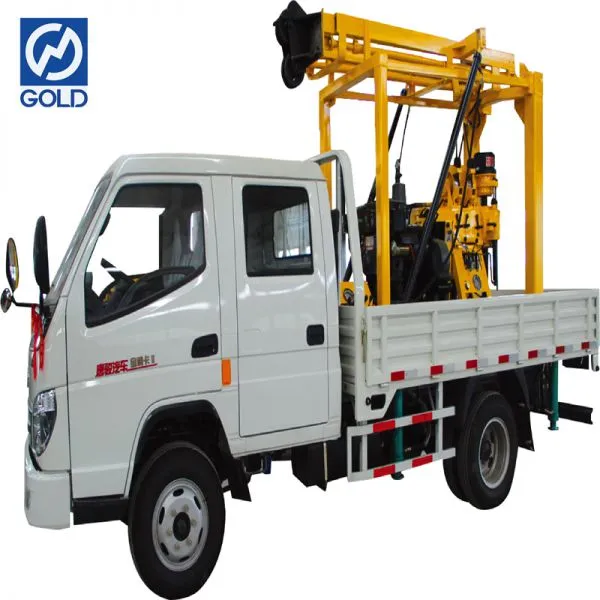

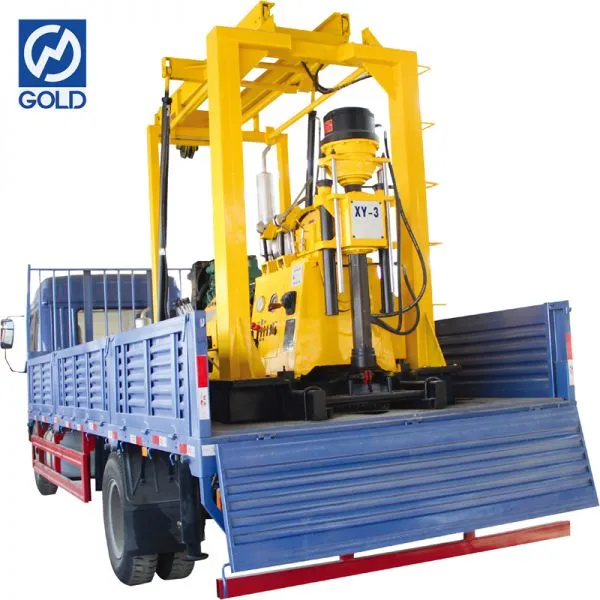

Well Drilling Rig 200m Truck Mounted Drilling Rig Reasonable price
Application
Geological survey and exploration; basic exploration for roads and high buildings; hole inspection on various concrete structure, river dams, grouting holes, civil wells and geothermal central air conditioning.
Main Features
Truck mounted drilling rig is hydraulic vertical shaft rotary drilling rig.
Drilling rig transmission system and hoisting, mud pump and other important accessories are installed on this chassis, reasonable and compact layout, easy to operate.
Configure BW-160 or BW-250 mud pumps are equipped with high pressure and large flow rate to ensure drilling depth and borehole caliber.
Drilling rig self-equipped mobile device can realize the front and back movement of the main machine of the drilling rig and facilitate wellhead operation.
Drilling rig tower hydraulic lifting automatic telescopic drilling tower, safe and convenient operation.
Specification
Drilling depth(m) | 30-200 | ||
Drilling diameter(mm) | 325 | ||
Drilling angle | 0-75° | ||
Spindle rotary speed(r/min) | 64,128,287,557 | ||
Spindle stroke(mm) | 450 | ||
Main winch lifting force(with single line)(Kg) | 1600 | ||
Main winch rope capacity(m) | 35 | ||
Lifting speed(r/s) | 17, 35, 75, 151 | ||
Rope diameter(mm) | 12.5 | ||
Drill Mast height(mm) | 7000 | ||
Drill Effective height(mm) | 6500 | ||
Driving Drilling rod(mm) | 59*53 | ||
Drilling rod(mm) | 42, 50, 60 | ||
Weight(Kg) | 1150 | ||
Engine | Model: ZS1115 Diesel engine | ||
Rated power: 14.7kW/2200rpm | |||
BW-160 Mud pump | Rated flow(L/min) | 160 | |
Rated power(Mpa) | 1.3 | ||
Driving power(kW) | 5.15 | ||
Host weight(Kg) | 1.9 | ||
Dimension(mm) | 1110*725*965 | ||
Chassis | Model | Tangjun Oulin Jinlika 95 | |
Drive way | 4*2 | ||
Engine | Model | 4B2-95C40 | |
Emission standard | GB3847-2005, GB17691-2005 National standard grade-4 | ||
Rated power(kW) | 16.2 | ||
Rotary speed(r/min) | 2200 | ||
Company information
Chongqing Gold M& E Equipment Co., Ltd. is specializes in manufacturing and development of high-resolution geophysical equipment. We supply professional Drilling rigs with high quality and competitive price, such as: Core/Rock Drilling, Sample Drilling, Water Well Drilling, Down the hole Drilling, Truck, Crawler, Trailer, Tricycle mounted Drilling. Over 15 years experience engineers, and well-trained technicians, workers work together to back up our production line. We do not just do trade business like doing Truck Mounted Water Well Drilling Rig for Sale, but doing the business for providing better Customer Experience.
FAQ
A: We are factory.
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
