Column-mounted Hydraulic Rotary Drilling Rig: An Overview

The column-mounted hydraulic rotary drilling rig is a specialized engineering equipment widely used in underground construction, mining, and geological exploration scenarios. It integrates column support, hydraulic power transmission, and rotary drilling technology, making it particularly suitable for operations in confined spaces such as mine roadways, tunnels, and underground chambers—where stability, compact structure, and efficient drilling performance are critical.

1. Core Structural & Functional Features

Its design is tailored to meet the demands of underground or narrow-site operations, with key characteristics including:

  • Column-mounted Support System: The rig relies on a sturdy vertical column (or telescopic column) to fix itself to the ground or roadway roof. This structure eliminates the need for large-scale foundation installation, enabling quick setup and adjustment. The column can be extended or retracted to adapt to different roadway heights (typically 2–5 meters), ensuring stable positioning during high-torque drilling.

  • Hydraulic Power Drive: All core movements—including the rotation of the drill rod, the feeding of the drill bit, and the lifting of the column—are powered by a hydraulic system. Compared with mechanical transmission, hydraulic drive offers smoother operation, higher power density, and better overload protection, which reduces wear on components and extends the rig’s service life.

  • Rotary Drilling Mechanism: The drill bit rotates at a controllable speed (usually 50–300 rpm) to cut, crush, or grind rock/soil. This rotary action, combined with adjustable downward pressure from the hydraulic feed system, allows the rig to handle various geological conditions—from soft sedimentary rock to medium-hard igneous rock—with high drilling efficiency (average penetration rate: 0.5–2 meters per hour, depending on rock hardness).

  • Compact & Maneuverable Design: Most models feature a lightweight frame (1–3 tons) and small footprint, allowing easy movement through narrow mine roadways or tunnel passages (width ≥1.5 meters). Some rigs are also equipped with small wheels or tracklets for flexible repositioning.

2. Typical Application Fields

Due to its structural advantages, this rig is indispensable in several key industries:

  • Underground Mining: Used for drilling blast holes (diameter 50–120 mm) in coal mines, metal mines, or non-metallic mines to prepare for ore/coal extraction. It can also drill exploration holes to detect the distribution of underground mineral reserves.

  • Tunnel & Underground Engineering: Applied in the construction of subway tunnels, highway tunnels, or underground pipe corridors—for tasks like drilling anchor holes (to reinforce tunnel walls) or grouting holes (to prevent water seepage).

  • Geological Exploration: Deployed in underground geological surveys to drill small-diameter core holes (30–80 mm) and collect rock/soil samples, helping engineers analyze the geological structure of underground areas.

3. Operational Advantages & Safety Considerations

  • Advantages:

  1. High stability: The column support system ensures the rig does not shift during high-torque drilling, reducing the risk of drill rod breakage.

  2. Energy efficiency: Hydraulic systems have lower energy loss compared to electric-mechanical drives, cutting operational costs.

  3. Easy maintenance: Key hydraulic components (e.g., pumps, cylinders) are modularly designed, allowing quick replacement and repair.

  • Safety Notes:

    • Before operation, inspect the column’s locking status and hydraulic oil level to avoid equipment failure.

    • In mine environments, use explosion-proof electrical components (if the rig has an electric control system) to comply with mine safety standards.

    • Operators must wear protective gear (e.g., hard hats, safety shoes) and avoid standing in the drill bit’s drop zone.

    Attention：Prices are for reference only; actual prices can be discussed in detail.

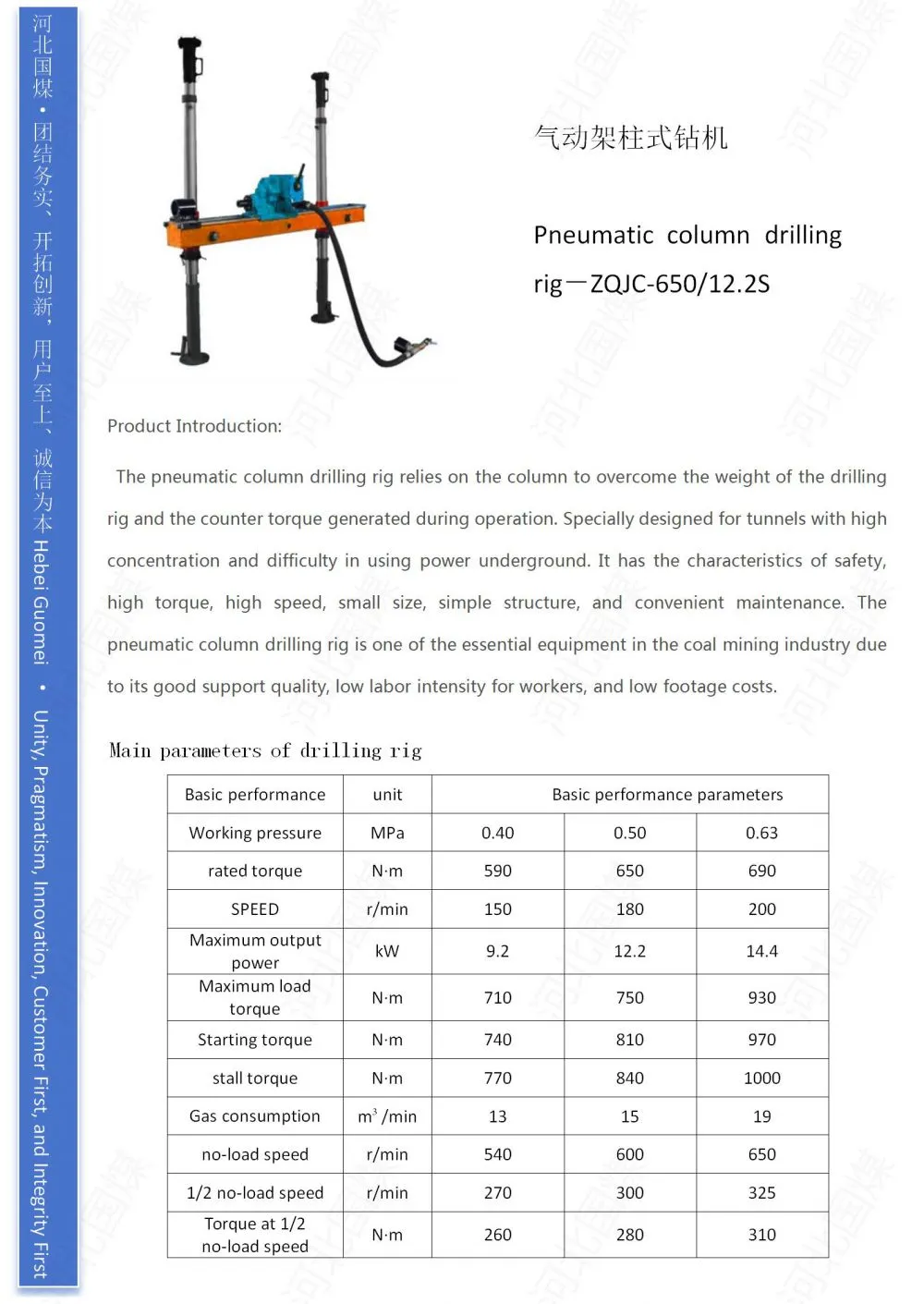

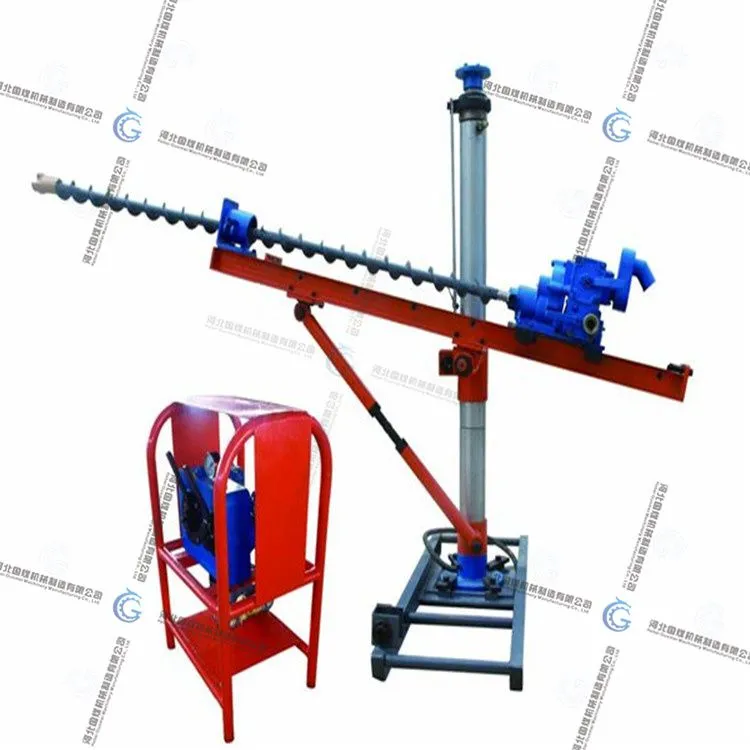

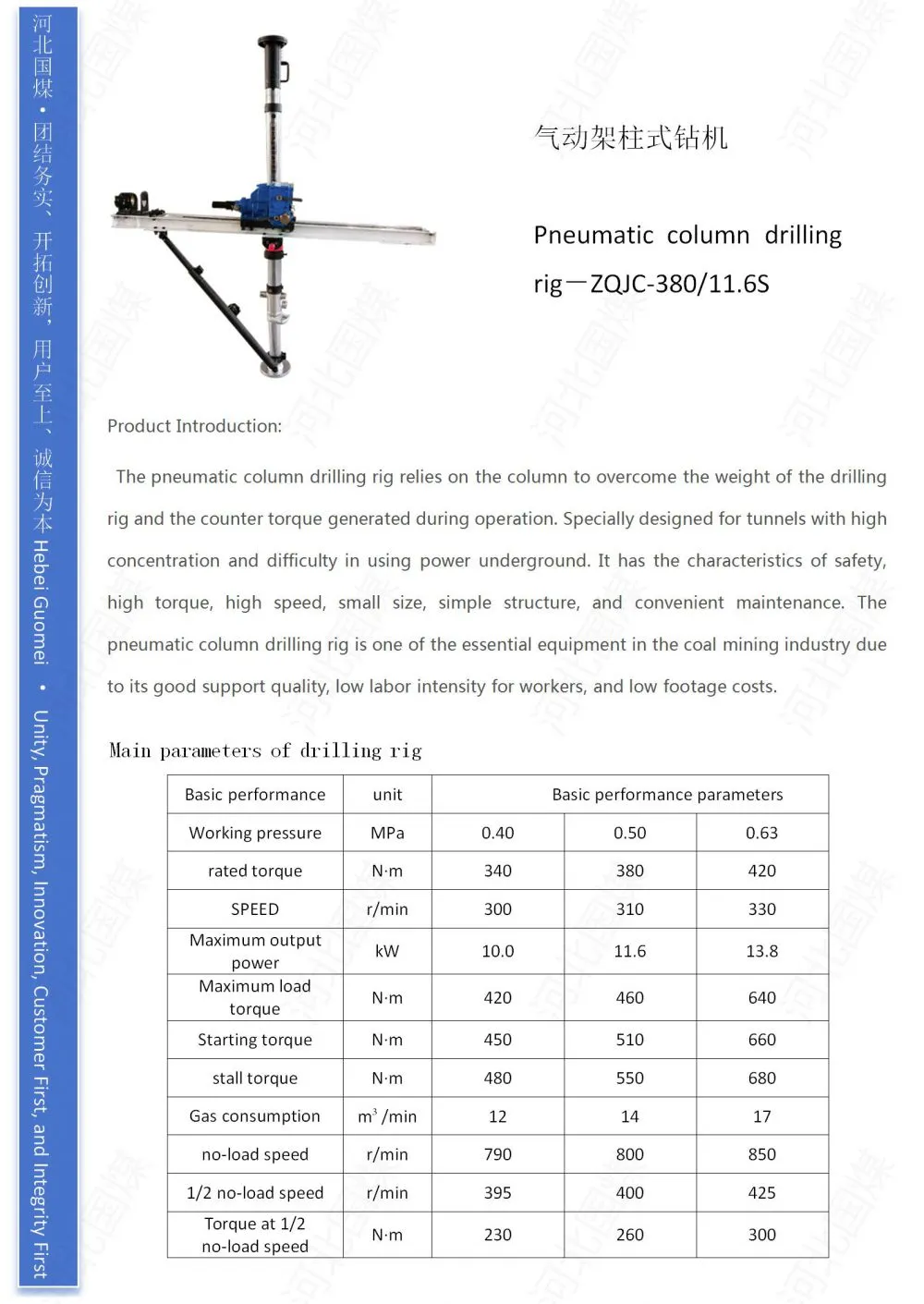

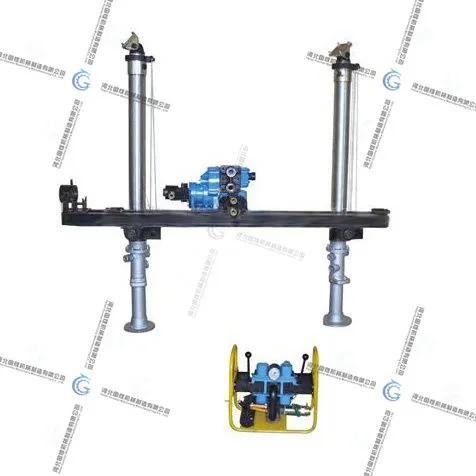

    ZQJC560气动架柱式钻机 图ZOJC气动架柱式钻机1ZQJC-360ZQJC-380ZQJC-650
