Rotary Small Hole Drilling With Casing BG-60 Casing Extractor
Application

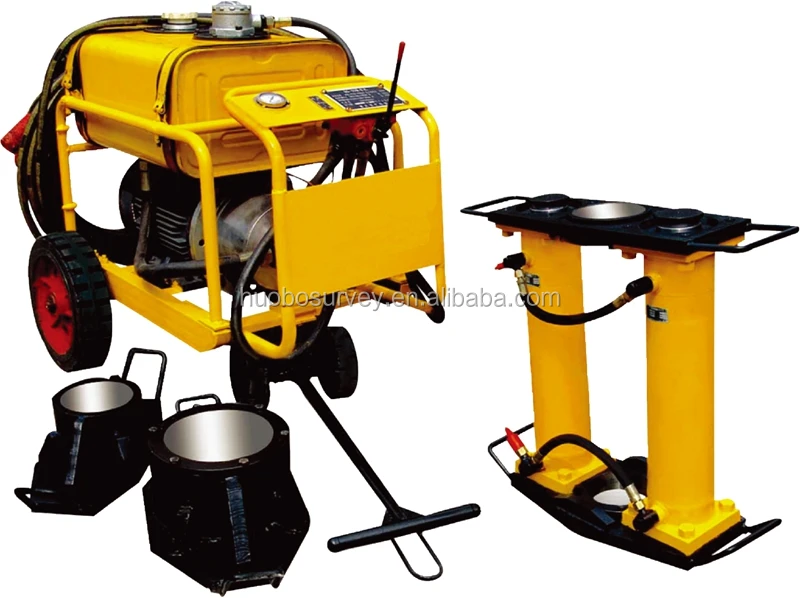

BG-60 casing extractor is a special equipment for extracting the casing from the hole. It is suitable in grounting, rotary drilling, small hole drilling for big diameter, and drilling with casing.
Specifications
Casing diameter scope(mm) |
42-108-200 |
||
Max. Extracting force(kN) |
600 |
||
Cylinder stroke(mm) |
500/300 |
||
Electric motor engine |
Model |
Y160L-4 |
|
Power/Speed |
KW r/min |
15/1460 |
|
Power pack dimension(L*W*H)(mm) |
1100*886*982 |
||
Power pack weight(Kg) |
320 |
||
Puller dimension(mm) |
860*360*1013(860*360*813) |
||
Puller weight(Kg) |
280/(250) |
||
Total weight(Kg) |
600/(570) |
||
Main features
1. Strong lifting capacity and wide adaptability. It can pull out various pipes with diameters from Φ42 to Φ108 to Φ200, and the pulling force can reach 600 kN, and it can pull out the pipe in the inclined hole.
2. The drawing stroke is long and the work efficiency is high. The extraction stroke of the BG-60A pipe extractor cylinder is 300 mm.
3. The utility model has the advantages of simple structure, light weight, convenient maintenance and migration, and easy disintegration.
4. The pumping station adopts a flat frame structure, which has high space utilization, appropriate length, width and height, simple and clear appearance, and good visual effect.
5. The hydraulic oil uses a two-stage filtration method to ensure the reliability of the hydraulic system.
FAQ
A: We are factory.
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
A: Yes, but it's not free. We do not pay the cost of freight either.
A: Payment=1000USD, 30% T/T in advance ,balance before shippment.
