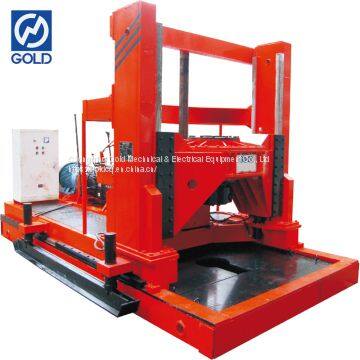

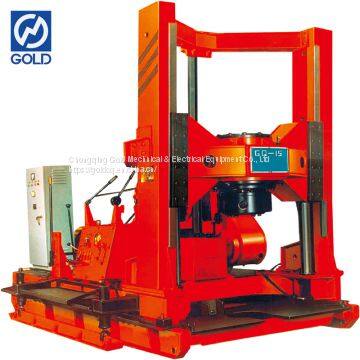

Deep Hole Geotechnical drilling rig GQ-60 Engineering Drilling Rig For sale
Application
GQ-60 drilling rig is designed especially for foundation engineering projects, both forward circulation and reverse circulation drilling method can be applied, applicable for large diameter pile hole for building, dam, harbor, bridge etc.
Specifications
Model |
GQ-60 |
|
Drilling diameter(mm) |
300-600 |
|
Drilling depth(m) |
60-30 |
|
Power head speed |
Forward(r/min) |
40,118,218,300 |
Reverse(r/min) |
62 |
|
Max.output torque(kN) |
4.5 |
|
Spindle inner diameter(mm) |
96 |
|
Spindle lifting force(kN) |
59 |
|
Spindle feeding force(kN) |
44 |
|
Max. Lifting fore with single rope(kN) |
30 |
|
Electric engine(kW) |
33 |
|
Weight(Kg) |
2500 |
|
Dimension(mm) |
2200*1200*2050 |
|
Main features
1. Big torque, lightweight and compact structure in compare with same kind machine.
2. Mast, top-drive head move down or up along with, strength and rigidity.
3. Top-drive head has large inner diameter(182*182mm). Reverse-circulation drilling if equipped with necessary equipment as well as forward-circulation drilling.
4. Strength, five forward speeds and on reverse speed, suitable for drilling a variety of rock, easy to handle accidents happend in hole.
5. Top-drive head is equipped with hand-powered chuck, square driving stem, larg stroke, drilling efficiently.
6. Hydraulic feed, big pull ad push force easy to make pressure and depression drilling.
7. Hydraulic retracting stroke is 1150mm, easy to lower and hoist drilling tools.
8. Walking device, easy to move and find accurat hole position.
9. Reasonable arrangement, easy to operate, smooth.
10. Can be equipped with special derrick if user needs.
Company Introduction
Chongqing Gold M& E Equipment Co., Ltd. is specializes in manufacturing and development of high-resolution geophysical equipment. We supply professional Drilling rigs with high quality and competitive price, such as: Core/Rock Drilling, Sample Drilling, Water Well Drilling, Down the hole Drilling, Truck, Crawler, Trailer, Tricycle mounted Drilling. Over 15 years experience engineers, and well-trained technicians, workers work together to back up our production line. We do not just do trade business like doing Engineering Drilling Rig for Sale, but doing the business for providing better Customer Experience.
With professional management team, technology research, development & design team, sales team and after-sale service team, Gold provides strong service support for pre-sale, in-sale work of customers, In addition, it will provide according to your actual requirements, the most suitable equipment and technical proposal for you as well as complete technology consulting, training and guidance in equipment installation, debugging and maintenance to solve customers’ problem during the process of instrument usage.
Packaging & Shipping
1. Inudustrial professional export packing, full inspection on all packing details.
2. Standard wooden case for Engineering Drilling Equipment exporting and shock absorbing for better outerior protection.
3. Considerate interior plastic sheeting protection to prevent from wet and moisture.
