Home > Products > Drilling Rig > Crawler rock anchoring Drilling MGJ-50 Anchor Drilling Rig for jet-grouting
Crawler rock anchoring Drilling MGJ-50 Anchor Drilling Rig for jet-grouting
- 50 Set / Sets per Month
- Chongqing
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 7 days
- China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
- 100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
- HY-50H Small Domestic Hydraulic Water Well Drilling Rig of China
- 50m Depth Core Drilling Rig Portable Diamond in Mountain
- TSP core bit, BQ NQ HQ PQ core drill bits, HWL, wireline core barrels, diamond coring bits, hard formation, deep hole rock core recovery
- 1.5M 3M inner tube assembly, wireline core barrels, head assembly, impregnated diamond drilling, hard formation coring, deep hole rock core recovery
Product Details
Brand Name: | GOLD | Place of Origin: | China | Model Number: | MGJ-50 |
Type: | Core Drilling Rig | Certification: | ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
Warranty: | 1 Year | Weight: | 900Kg | Dimension(L*W*H): | 3528*1150*1225 |
Power Type: | Diesel | Voltage: | 380V | Usage: | Coal |
Condition: | New | Power(W): | 15kW |
Product Description
Core Drilling Machine MGJ-50 Crawler Mounted Anchor Drilling Rig
Product Introduction

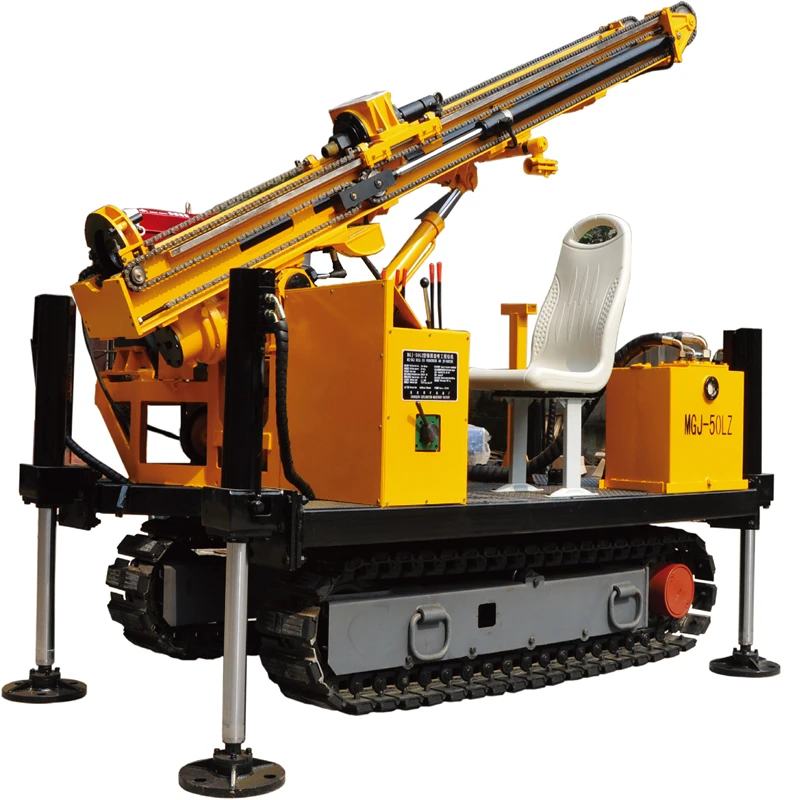

MGJ-50 crawler mounted anchor drilling rig is a combination of rubber crawler vehicle, mud pump, operation platform and MGJ-50 drilling rig.
Mainly applied for soil nailing and rock anchoring, jet-grouting, consolidating, strengthening foundation of highway, dam and retaining walls, protecting soil and rock from collapsing, handing the protection of excavation, underground engineering and foundation of skyscrapers etc.
Main features
Long feeding stroke, big drilling capacity, easy to move and operate etc.
Top head drive, mechanical transmission, hydraulic feeding and hoisting.
Three different length of drilling mast are provided to satisfy different requirements.
Both air and mud rotary drilling method can be applied.
Simple mechanical structure, safe and reliable.

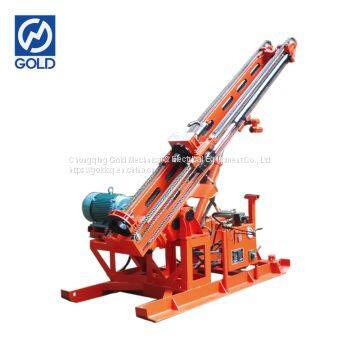

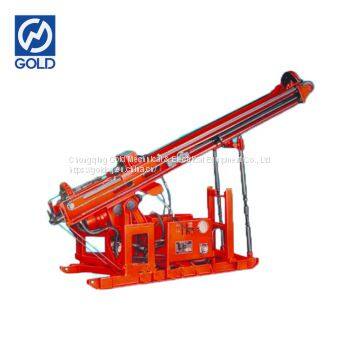

Skid frame and wheel chassis are optional.
Specifications
Drilling diameter(mm) | 110-180 | |
Drilling depth(m) | 60-30 | |
Drilling angle | 0°-90° | |
Engine(optional) | Diesel engine ZS1100 | 10kw, 2200r/min |
Electric motor Y160m-4 | 11kw, 1460r/min | |
Electric motor Y160m-6 | 10kw, 97r/min | |
Power head speed(r/min) | Diesel engine ZS1100 | Forward:44,81,148,256, Reverse:35 |
Electric motor Y160m-4 | Forward:32,59,108,187, Reverse:26 | |
Electric motor Y160m-6 | Forward:21,39,72,124, Reverse:17 | |
Feeding stroke(mm) | 2300(standard),1500(short mast),1100(ultra-short mast) | |
Power head lifting force(kN) | 22 | |
Power head Feeding force(kN) | 14.6 | |
Power head Max. Torque(N.m) | 4250 | |
Dimension(mm) | 3528*1150*1225 | |
Weight without engine(Kg) | 900 |
Company Introduction
Chongqing Gold M& E Equipment Co., Ltd. is specializes in manufacturing and development of high-resolution geophysical equipment. We supply professional Drilling rigs with high quality and competitive price, such as: Core/Rock Drilling, Sample Drilling, Water Well Drilling, Down the hole Drilling, Truck, Crawler, Trailer, Tricycle mounted Drilling. Over 15 years experience engineers, and well-trained technicians, workers work together to back up our production line. We do not just do trade business like doing Engineering Drilling Rig for Sale, but doing the business for providing better Customer Experience.
With professional management team, technology research, development & design team, sales team and after-sale service team, Gold provides strong service support for pre-sale, in-sale work of customers, In addition, it will provide according to your actual requirements, the most suitable equipment and technical proposal for you as well as complete technology consulting, training and guidance in equipment installation, debugging and maintenance to solve customers’ problem during the process of instrument usage.
Packaging & Shipping
1. Inudustrial professional export packing, full inspection on all packing details.
2. Standard wooden case for Engineering Drilling Equipment exporting and shock absorbing for better outerior protection.
3. Considerate interior plastic sheeting protection to prevent from wet and moisture.
