High efficient Crwaler Mounted Full Hydraulic Anchor Drilling Rig
Product Introduction
Applicaiton

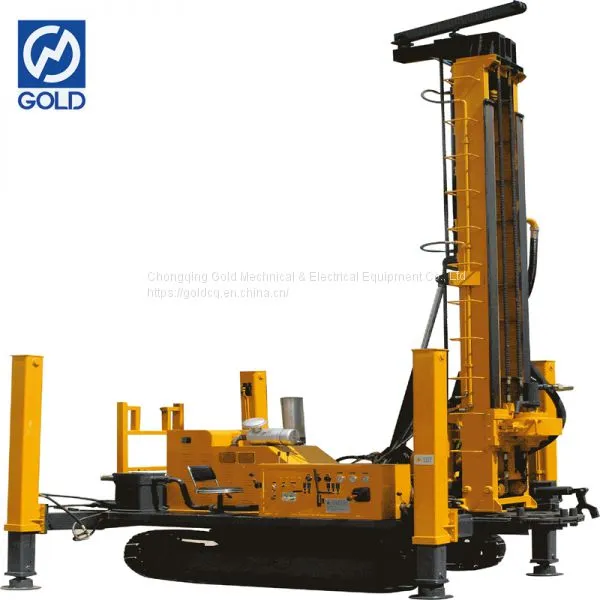

MGY-100A Mainly used in drilling soil and rock anchoring hole for prevention and treatment of geology disaster screen injection for tunnel, also suitable for supporting in deep foundation pit of hydroelectric powerstation, communication, energy capital construction, mini-grouting pile hole, hydrography well and high pressure jet-grouting.
Features
Hydraulic top head, hydraulic powerstation separated from drill body; lighten drilling rig body, and with diesel or motor, meeting the needs of various users.
It is the first time that the rig user coring down-hole hammer, fully forward-circulation and partial reverse-circulation drilling methods domestically.
Double top-drive head A. B. a variety combination can be made, to meet many drilling methods.
Large powered, top-drive head has big torque and pull force, wide rotary speed range.
Holder and unscrew device, working efficiently, labor saving.
2-tier guiding rail, easy to find hole position.
Specification
Drilling rig model |
MGY-100A |
|
Drilling diameter(mm) |
100 – 250 |
|
Drilling depth(m) |
120-60 |
|
Hydraulic system |
Variable displacement pump system |
|
Power head speed(rpm) |
A power head |
I 0-100 |
II 0-30 | ||
B power head |
10 |
|
Power head torque(N.m) |
A power head |
I 1600 |
II 5000 | ||
B power head |
6400 |
|
Max.feeding force(kN) |
57/80 |
|
Feeding stroke(mm) |
2000 |
|
Diesel engine |
Y180L-4 22kW/1500rpm |
|
Company Introduction
Chongqing Gold M& E Equipment Co., Ltd. is specializes in manufacturing and development of high-resolution geophysical equipment. We supply professional Drilling rigs with high quality and competitive price, such as: Core/Rock Drilling, Sample Drilling, Water Well Drilling, Down the hole Drilling, Truck, Crawler, Trailer, Tricycle mounted Drilling. Over 15 years experience engineers, and well-trained technicians, workers work together to back up our production line. We do not just do trade business like doing Engineering Drilling Rig for Sale, but doing the business for providing better Customer Experience.
With professional management team, technology research, development & design team, sales team and after-sale service team, Gold provides strong service support for pre-sale, in-sale work of customers, In addition, it will provide according to your actual requirements, the most suitable equipment and technical proposal for you as well as complete technology consulting, training and guidance in equipment installation, debugging and maintenance to solve customers’ problem during the process of instrument usage.
Packaging & Shipping
1. Inudustrial professional export packing, full inspection on all packing details.
2. Standard wooden case for Engineering Drilling Equipment exporting and shock absorbing for better outerior protection.
3. Considerate interior plastic sheeting protection to prevent from wet and moisture.
