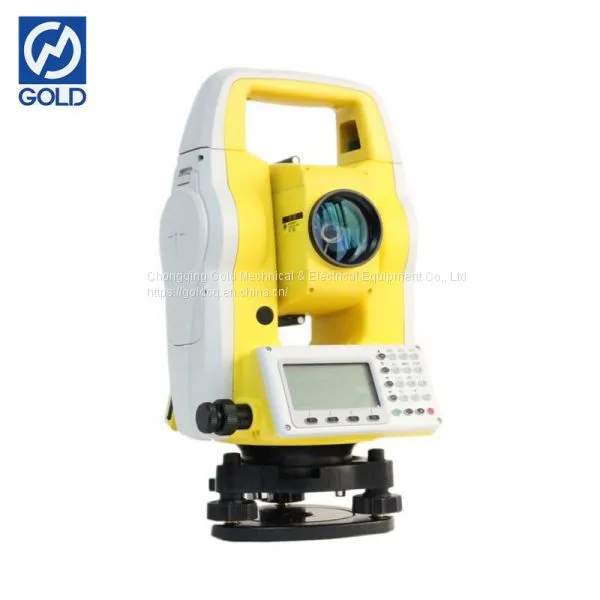

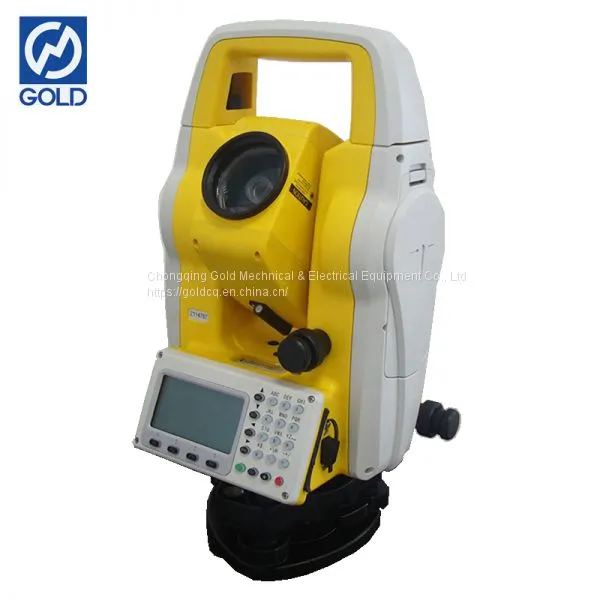

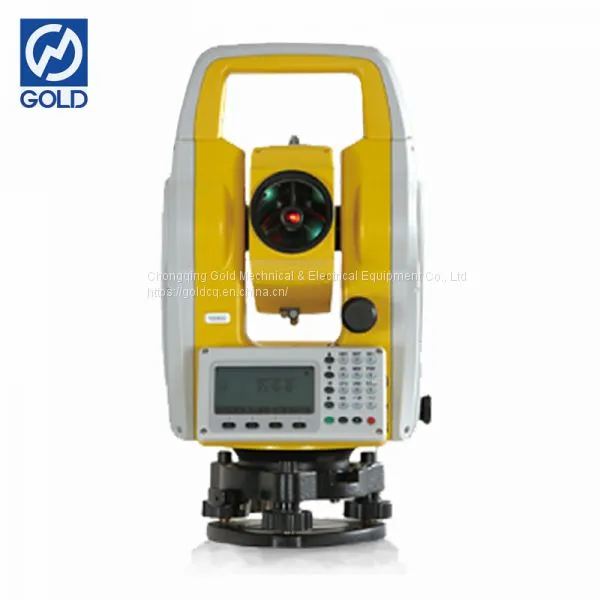

Navigation Land Surveying ZTS-320 Total Station price
Product Introcution

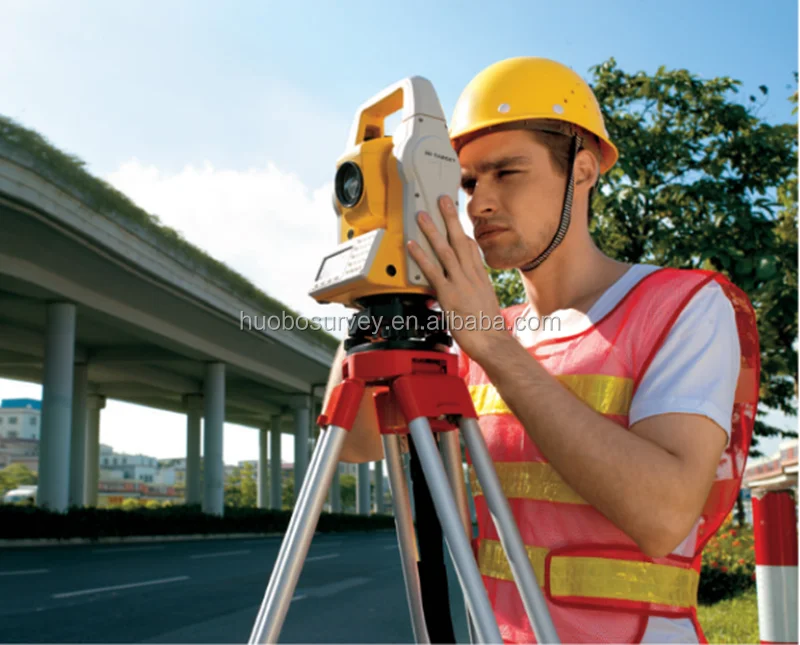

Total Station is a high-tech measuring instrument integrating light, machine and electricity. It is a surveying and mapping instrument system integrating horizontal Angle, vertical Angle, distance (oblique distance, horizontal distance) and height difference measurement. Compared with the optical theodolite, the electronic theodolite replaces the optical dial with the photoelectric scanning dial, and replaces the artificial optical micrometer reading with the automatic recording and display reading, so as to simplify the Angle measurement operation and avoid the error of reading. Because one time installs the instrument to be able to complete this station to measure the work completely, therefore is called the total station instrument. It is widely used in the field of precision engineering measurement or deformation monitoring such as overground large buildings and underground tunnel construction.
Specifications
Model |
ZTS-320/R |
Angle Measurement | |
Measurement Method |
Absolute |
Minimum Reaout |
1″/5″/10″ adjustable |
Accuracy |
2″ |
Telescope | |
Magnification |
30X |
Field of View |
1°30′ |
Minimum Focusing Distance |
1.5m |
Reticle |
Illuminated |
Compensator | |
System |
Single-axis liquid tilt sensor/Dual-axis(optional) |
Working Range |
±3′ |
Setting Accuracy |
1″ |
Distance Measurement(with Reflector) | |
Reflective Sheet |
800m(2,624ft.) |
Accuracy |
2mm+2ppm |
Measuring time(Fine/Quick/Tracking) |
1.5s/1s/0.5s |
Distance Measurement(Reflectorless) | |
Reflectorless2 Range |
350m(1,148ft.) |
Accuracy |
3mm+2ppm |
Measuring time |
1.5s |
Communication | |
Bluetooth |
|
Interface |
Standard RS232, SD card, USB pen drive, mini-B |
Internal Data Memory |
Approx. 20,000 Points |
Data Format |
ASCII |

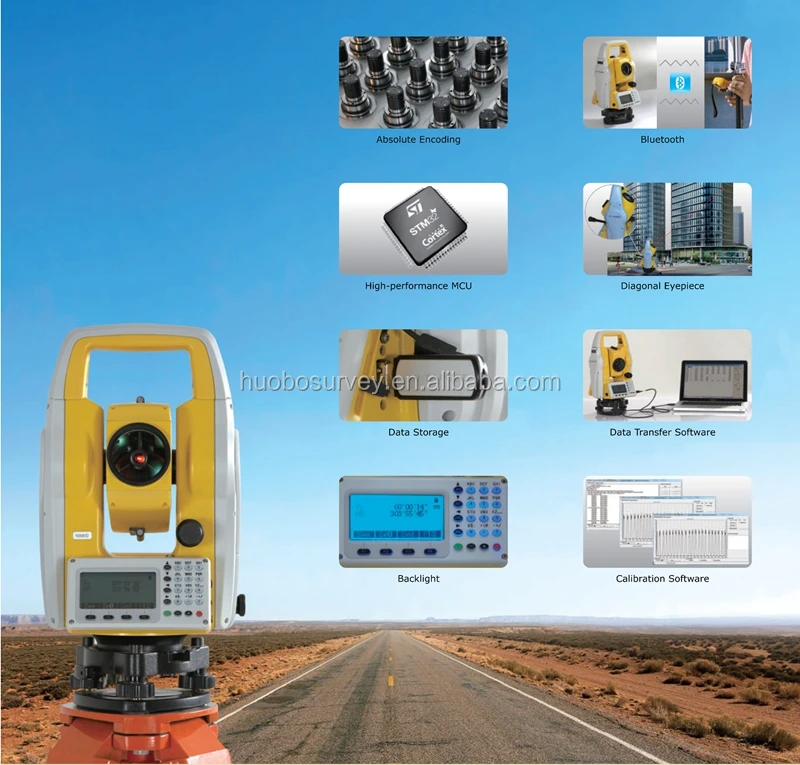

Dual-axis Compensation
The ZTS-320/R is configured with advanced dual-axis compensator for auto erroe elimination and auto accuracy compensation.
Absolute Encoding
The absolute encoding disk ensures high accuracy, efficiency and stable performance. Initialization is needless but to measure the angle immediately as the ZTS-320/R is turned on. The aimuth information won't be missed even the ZTS-320/R is power-off unexpectedly.
High-performance MCU SMT32
The SMT32 MCU based on ARM Cortextm-M processor enables the ZTS-320/R has extra high processing speed and low-power consumption.
Bluetooth
The Bluetooth wireless technology makes ZTS-320/R accessible to any data collector for real-time communication. The third party field software such as Carlson SurvCE is fully compatible with the ZTS-320/R.
Data Storage
Diversified data transfer options such as SD card, USB pen drive, mini-N interface.
Backlight
The display and keyboard with backlight for working in the dark.
Diagonal Eyepiece
Support diagonal eyepiece for observations at steep line of sight.
Calibration Software
The proprietary HI-TARGET calibration software is accessible for real-time diagnosis to ensure trouble-free operation.
Data Transfer Software
The proprietary HI-TARGET data transfer software supports different type of output data format, which can be used in AutoCAD or other brand's post processing software.
Packaging
