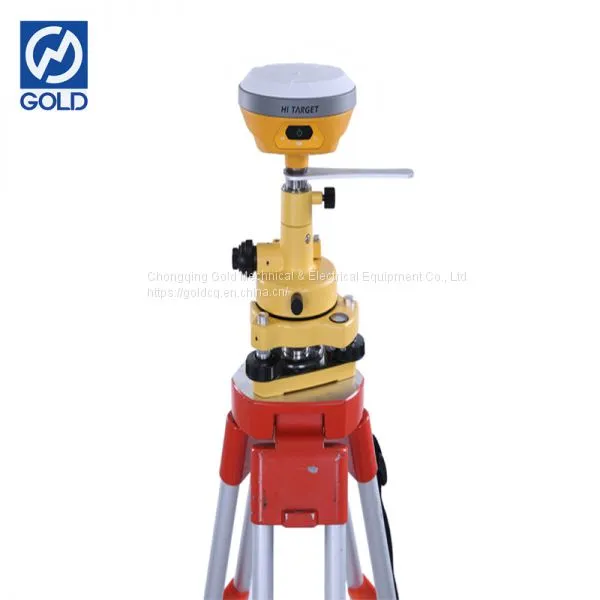

Geophysical Instruments V100 Static RTK GNSS Surveying GPS Navigation photo-2
Geophysical Instruments V100 Static RTK GNSS Surveying GPS Navigation photo-3
Geophysical Instruments V100 Static RTK GNSS Surveying GPS Navigation photo-4
US$ 3000 - 4000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Gold
Place of Origin:
China
Model Number:
V100
Contact Supplier Request Quote Chat Now
Chongqing Gold Mechnical & Electrical Equipment Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing
Delivery Detail:
5 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Gold
Place of Origin China
Model Number V100
Use Hand Held
Type Gps Navigator
Function Bluetooth-enabled, Touch Screen


Product Description

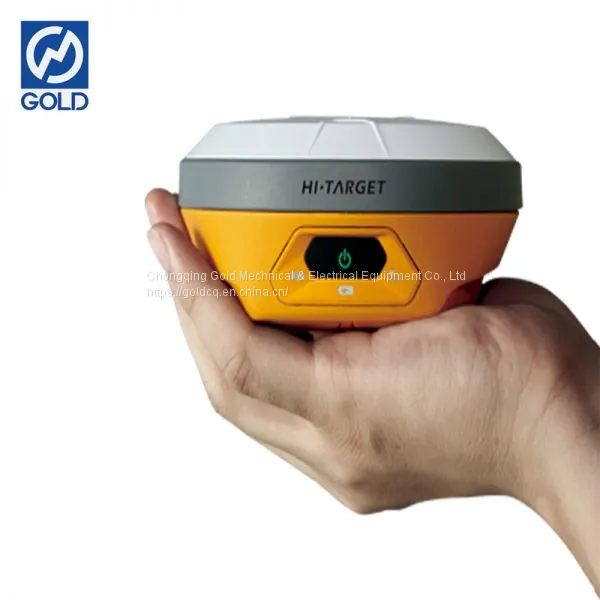

The V100 is a compact, lightweight and intelligent GNSS RTK Receiver. The built-in whole constellation BD970 OEM board, 4.0 standard dual-mode long-range Bluetooth and NFC module, data collection internet support and HI-Target Cloud Service make this the most convenient and efficient receiver for the network age.



Multi-constellation Tracking

220 channels

Supports GPS, GLONASS, GALILEO, BDS, SBAS

NGS approved GNSS antenna

Convenient Connection

Bluetooth can be connected in seconds based on NFC technology 4.0 standard dual-mode long-range Bluetooth, compatible with 2.1 standard Bluetooth

Powerful Battery

Powered by high-capacity (6300mAh) Li-ion battery Supports power bank to charge, the battery can be used universally with iHand20 handheld battery

Wide Range of Application

V100 can be paired with varieties of handhelds and GIS data collectors, and provide an easy-to-use solution for survey and GIS professionals who need to collect highly accurate data in a variety of applications.

Satellite signals tracked simultaneously

Channels: 220

GPS: Simultaneous L1C/A, L2C, L2E, L5

GLONASS: Simultaneous L1C/A, L1P, L2C/A (GLONASS M only), L2P

SBAS: Simultaneous L1 C/A, L5

Galileo: Simultaneous L1 BOC, E5A, E5B, E5AltBOC

BDS/Compass: B1, B2

QZSS: L1 C/A, L1 SAIF, L2C, L5

POSITIONING PERFORMANCE

Real time Kinematic (RTK) surveying Network RTK

Horizontal: 8mm+1ppm RMS

Vertical: 15mm+1ppm RMS

Initialization time: typically
Initialization reliability: typically > 99.9%

Code Differential GNSS positioning

Horizontal: 25cm+1ppm RMS

Vertical: 50cm+1ppm RMS

SBAS: 0.50m Horizontal, 0.85m Vertical

Static and Fast Static GNSS Surveying

Horizontal: 2.5mm+1ppm RMS

Vertical: 5mm+1ppm RMS

HARDWARE

Physical
Dimensions (W x H): 127.5mm x 57mm 5.02inch x 2.24inch)


Weight: 700g (1.54lb) including internal battery

Operating temperature: -40℃ to +65℃ (-40℉ to +149℉)

Storage temperature: -40℃ to +75℃ (-40℉ to +167℉)

Humidity: 100%, considering

Water/dustproof: IP67 dustproof, protected from temporary immersion to depth of 2m (6.56ft).

Shock and Vibration: Designed to survive a 3m (9.84ft) natural fall onto concrete.

Electrical

Power consumption ≤3.5W


Battery: Rechargeable, removable 3.7V/6300mAh Lithium-ion battery, supports online charging


Power input: 4.5V-5.5V/2A DC(USB), 6V-28V/2A DC(5 pin port)

Data storage: 8GB internal storage

Internal battery life

Static: 13hours

RTK Rover: 10hours(Data collector internet)

I/O interface

1 x mini USB port: For data downloading, power supply and firmware upgrading

1 x 5-pin port: For NMEA output, DC power supply and external devices

Communication

Bluetooth: Dual-mode BT 4.0, compatible with BT 2.1, 2.4GHz

NFC: An easy tap to establish BT connection

Radio: Hi-Target/Pacific Crest ADL Vantage pro external radio(optional)

Data formats

Output: 1Hz positioning output, up to 20 Hz

Message type CMR: CMR, CMR+, sCMRx input and output

RTCM: RTCM 2.1, 2.2, 2.3, 3.0, 3.1, 3.2 input and output

Navigation outputs ASCII: NMEA-0183 GSV, AVR, RMC, HDT, VGK, VHD, ROT, GGK, GGA, GSA, ZDA, VTG, GST, PJT, PJK, BPQ, GLL, GRS, GBS

Navigation outputs Binary: GSOF


FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide After-sale service? is it free or extra ?

A: Yes, we could offer the after-sale service but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment=1000USD, 30% T/T in advance ,balance before shippment.
