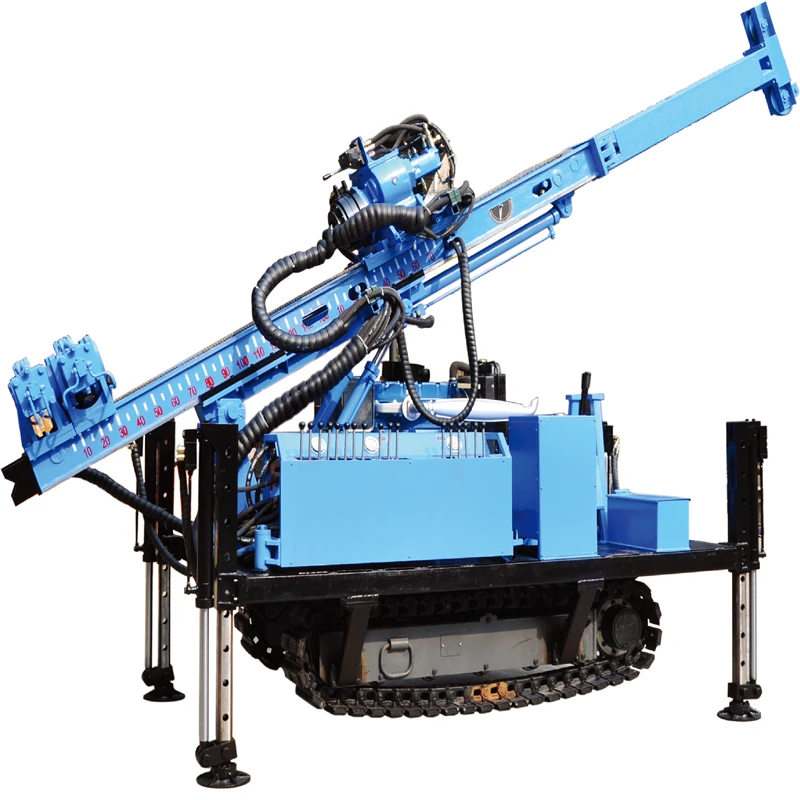

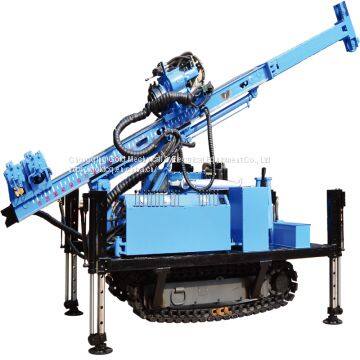

Blast hole anchor drilling equipment GXY-100 multipurpose drilling rig
Application
GXY-100 is mainly used for investigation engineering of railway, highway, water conservancy, hydraulic control as well as the blast hole engineering, anchor drilling in deep excavation and well construction.
Features
Compact structure, convenient to move and position; full hydraulic control, flexible operation, time saving. Suitable for both forward and reverse circulation with both air rotary drilling with dth hammer and mud rotary drilling.
Using low speed and high torque motor, stable, reliable and long life.
Suitable for a wide range of applications, power head is a through hole structure with high drilling efficiency.
-
Drilling angle ranges from 0º to 90º
Specification
Drilling diameter(mm) |
150 |
Drilling angle |
0º-90º |
Drilling depth(m) |
30-100 |
Power head Max.feeding stroke(mm) |
2500+chuck rear suspension of 1000 |
Power head speed(rpm) |
0-350 |
Power head Max.torque(N.m) |
4500 |
Power head feeding stroke(mm) |
1800 |
The top-drive power head chuck inner hole diameter |
Φ80 |
Power head Max.feeding force/pullback force(kN) |
43/50(0-11 continuously adjustable) |
Rated pressure of hydraulic system(Mpa) |
18 |
Diesel engine(model) |
4100 |
Max.lifting force of winch(kN) |
3000 |
Dimension(mm) |
4200*2000*2000 |
