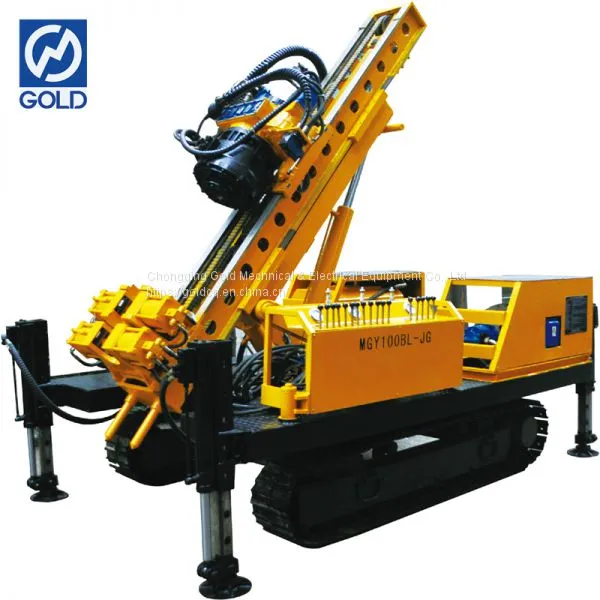

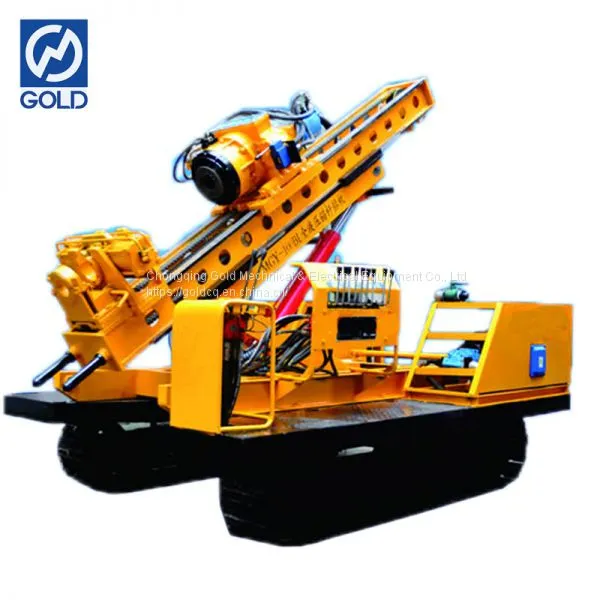

Deep Hole Drilling Jet grouting Crwaler Full Hydraulic Anchor Drilling Rig
Applicaiton
MGY-100BL hydraulic anchor drilling rig is new generation of highly efficient hydraulic anchor drilling rig, developed based on our MGY-100A and MGY-100B anchor drilling rig which are split-type of anchor drillings rigs, can be widely used in the field of municipal deep excavation construction, bolt cable construction, jet grouting holes and so on.
Features
High drilling efficiency. As the rig uses a hydraulic chuck with large inner hole, a fixed 6m drill rod in one time, to reduce the number of adding and screw-off drill rod and improve the effective working time.
As a result of crawler chassis drive, the down-up adjustment distance of the rig is 400mm. Hole position adjustment time is greatly reduced.
The rig has holder and shackle device. Through operating with the power head chunk, it can reduce operator's labor intensity.
As the rig has a hydraulic chuck with inner hole diameter of 110mm, no need to make any alteration on top-drive head, you can adopt a single tube, double tube, three tubes to make jet-grounting, reverse circulation drilling and 108mm pipe-rof construction.
Specification
Theory hole diameter(mm) |
Φ110 ~ Φ400 |
Theory drilling depth(m) |
150 ~ 40 m |
Hole angle range |
-20°~ 90° |
Drill rod |
Φ89 ,Φ73,Φ89 |
Max.torque of top-drive head( N.m) |
6500 |
B-top drill head speed(r/min) |
10 |
B-top drill head torque(N.m) |
6400 |
Lift/feed speed(r/min) |
0-0.16/0.21 |
Max pull force/max. Push force(kN) |
80/57 |
Max. Feed stroke(mm) |
2800 |
Mast raised horizontal height(mm) |
300 |
Drill body weight(Kg) |
1800 |
Powerpack weight(Kg) |
700 |
Mount type |
Plate mounted, drilling body separated from power |
Company Info
Chongqing Gold M& E Equipment Co., Ltd. is specializes in manufacturing and development of high-resolution geophysical equipment. We supply professional Drilling rigs with high quality and competitive price, such as: Core/Rock Drilling, Sample Drilling, Water Well Drilling, Down the hole Drilling, Truck, Crawler, Trailer, Tricycle mounted Drilling. Over 15 years experience engineers, and well-trained technicians, workers work together to back up our production line. We do not just do trade business like doing Crawler Water Well Drilling Rig for Sale, but doing the business for providing better Customer Experience.
Working field
Our instrument is widely used in geological prospecting for mineral resources, engineering exploration, seismic monitoring, groundwater searching, construction, Engineering, Environmental,surveying and other related industries.
Global Marketing System
Gold is granted with self-managerial import & export authority, with products being sold to Australia, South America, Asia, North America, Europe, Africa as well as many countries and regions and occupying steady sales market among similar products. Under continuous support from both new and old customers, Gold ceaselessly goes beyond similar enterprise and moves on with achievements!
Strong Service Support
With professional management team, technology research, development & design team, sales team and after-sale service team, Gold provides strong service support for pre-sale, in-sale work of customers, In addition, it will provide according to your actual requirements, the most suitable equipment and technical proposal for you as well as complete technology consulting, training and guidance in equipment installation, debugging and maintenance to solve customers’ problem during the process of instrument usage.
Certificates
FAQ
A: We are factory.
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
A: Payment=1000USD, 30% T/T in advance ,balance before shippment.
