Competitive price Navigation Measurement Machine ZTS-360 Total Station
- 500 Set / Sets per Month
- Chongqing
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 3 days
You May Like
-
High Precision Surveying Engineering Measurement Portable Reflector Total Station
-
GIS Handheld Qmini Collector Rtk GPS GNSS Data Collector
-
Anchoring Deep Foundation Pit Drilling MGY-135L Crawler Mounted Hydraulic Anchor Drilling Rig
-
Portable Water Well Level Meter GD-S Ruler Water Level Meter
-
30-500m Underground Water Level Meter Factory Price
-
Deep Water Finder Resistivity Kit DDC-8 Resistivity Meter
Product Details
Brand Name | GOLD | Place of Origin | China | |
Model Number | ZTS-360 |
Product Description

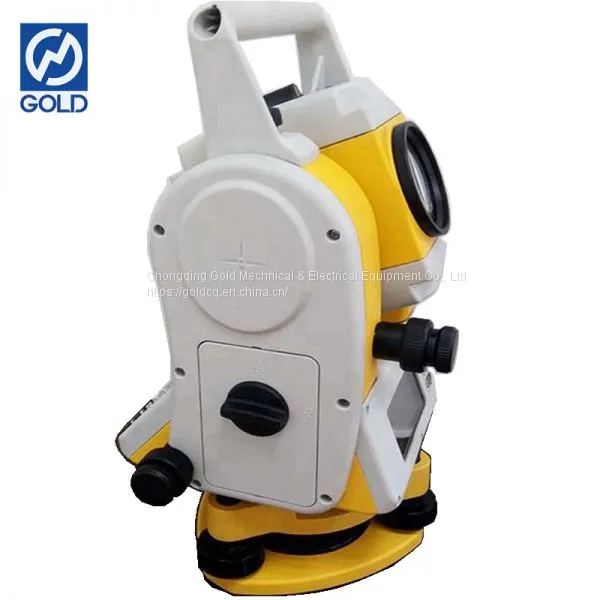

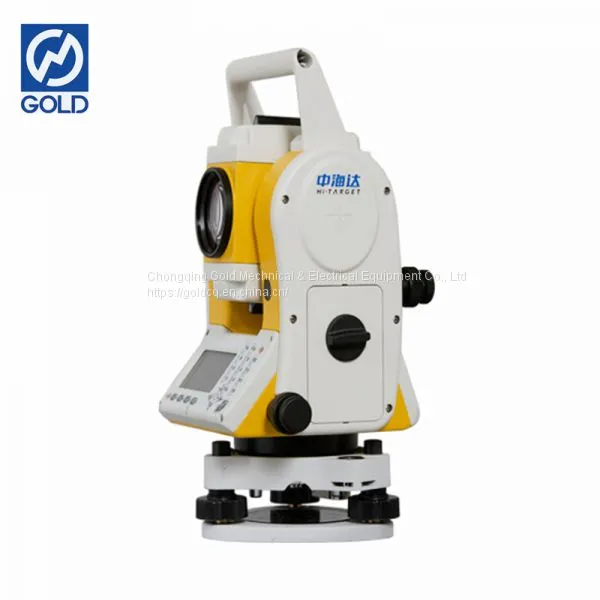

Competitive price Navigation Measurement Machine ZTS-360 Total Station
Product Introcution
Total Station is a high-tech measuring instrument integrating light, machine and electricity. It is a surveying and mapping instrument system integrating horizontal Angle, vertical Angle, distance (oblique distance, horizontal distance) and height difference measurement. Compared with the optical theodolite, the electronic theodolite replaces the optical dial with the photoelectric scanning dial, and replaces the artificial optical micrometer reading with the automatic recording and display reading, so as to simplify the Angle measurement operation and avoid the error of reading. Because one time installs the instrument to be able to complete this station to measure the work completely, therefore is called the total station instrument. It is widely used in the field of precision engineering measurement or deformation monitoring such as overground large buildings and underground tunnel construction.
Main Features
Compact, Lightweight Design——Ensuring the stability of every indicators of equipment; saving operator's physical exertion
Quick Trigger Button——By pressing it, measurement can finish quickly after targeting the object.
Powerful and Fast EDM Capability——Available to reach the target point fast where the data is inconvenient to collect.
Dust and Water Protection IP66——Continue to work even in extremely inclement environment.
Stable Dual-axis Compensation——Vivid graphic electronic bubble display ensures the high accuracy.
Upward Laser Pointing——No dead angle in upward measurement, which is significant for special application.
Intelligent Calibration Software——Accessible for real-time diagnosis to ensure trouble-free operation.
Software Compatibility——Compatible to the third party data processing software, satisfying user's requirements for different data formats.
Specifications
Model | ZTS-320/R |
Angle Measurement | |
Measurement Method | Absolute |
Minimum Reaout | 1″/5″/10″ adjustable |
Accuracy | 2″ |
Telescope | |
Magnification | 30X |
Field of View | 1°30′ |
Minimum Focusing Distance | 1.5m |
Reticle | Illuminated |
Compensator | |
System | Single-axis liquid tilt sensor/Dual-axis(optional) |
Working Range | ±3′ |
Setting Accuracy | 1″ |
Distance Measurement(with Reflector) | |
Reflective Sheet | 800m(2,624ft.) |
Accuracy | 2mm+2ppm |
Measuring time(Fine/Quick/Tracking) | 1.5s/1s/0.5s |
Distance Measurement(Reflectorless) | |
Reflectorless2 Range | 350m(1,148ft.) |
Accuracy | 3mm+2ppm |
Measuring time | 1.5s |
Communication | |
Bluetooth | |
Interface | Standard RS232, SD card, USB pen drive, mini-B |
Internal Data Memory | Approx. 20,000 Points |
Data Format | ASCII |
