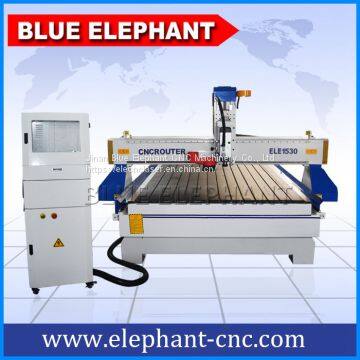

Help CenterELE1530 Cnc Router With T-slot Working Table
Related Products
-
3d Scanner for Cnc Wood RouterUS$ 4000 - 5000MOQ: 1 Set -
ELE1530 Z Axis 500mm 5x10ft Cnc Wood Cutter and EngraverUS$ 5000 - 8000MOQ: 1 Set
-
ELE1826 High Z Travel Cheap Price Cnc RouterUS$ 4500 - 6000MOQ: 1 Set
-
1020 High Z Axis Woodworking Cnc MachineUS$ 4500 - 9000MOQ: 1 Set
-
1530 Syntec Controlled 3 Axis CNC Router MachineryUS$ 5000 - 8000MOQ: 1 Set
Features:
1500x3000x220mm working area
6kw Italy HSD air cooling spindle,18000rpm

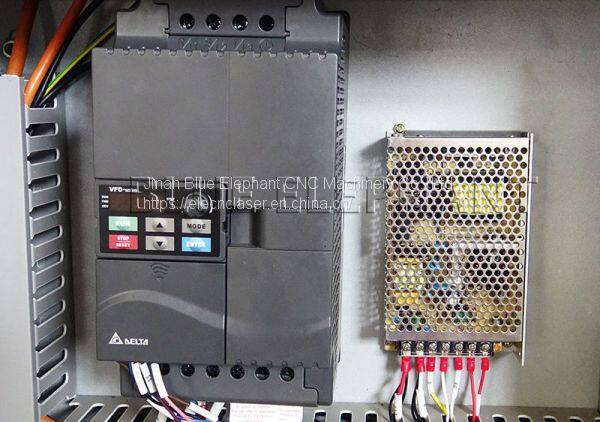

7.5kw Taiwan Delta inverter
Original Ncstudio 53C model with computer type control box

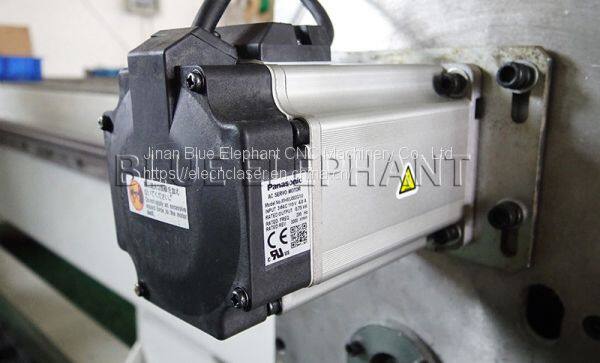

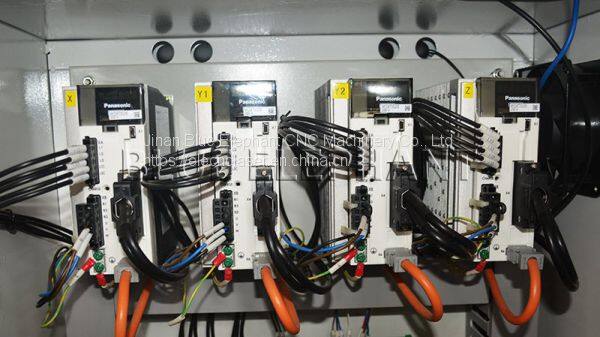

Japan Panasonic servo motor and driver

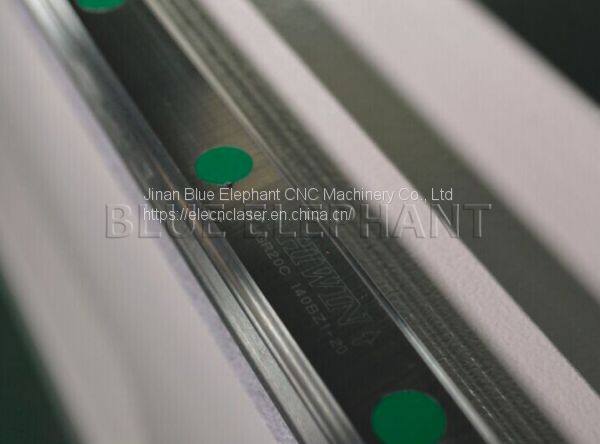

Imported Taiwan HIWIN 20# Square Linear Guide for X,Y,Z axis
Z axis Original Taiwan TBI ball screw Transmission
T-slot working table
Manual Oil Lubrication system
Japan Ormon Limit Switch
France Schneider safety switch
Separate control box
Voltage 380V 3phase 50HZ (option:220v)
Plywood case Package
Type3/Artcam software
Parameters:
| Description | Parameter |
| X,Y,Z Working Area | 1500x3000x220mm |
| Table Surface | T-slot working Table |
| Spindle | 6kw Italy HSD air cooling spindle |
| X, Y Structure | 20#Taiwan HIWIN Linear guide and helical rack |
| Z Structure | Ball screw and#20 Taiwan HIWIN Linear guide |
| Motor and driver | Panasonic servo motor and driver |
| Spindle Speed | 0-18000RPM |
| Lubrication system | Manual |
| Inverter | 7.5kw Taiwan Delta Inverter |
| Command Language | G Code |
| Control System | NCStudio 53C control system |
| Computer Interface | USB |
| Flash Memory | 512M(U Disk) |
| Collet | ER 32 |
| X,Y Resolution | |
| Software Compatibility | Type3 Software, (Option: Artcam Software) |
| Running Environment Temperature | 0 – 45 Centigrade |
| Relative Humidity | 30% – 75% |
PS:All the working area and specifications can be customized according to your requests.
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 15 working days after payment.
1, Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or WhatsApp) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
