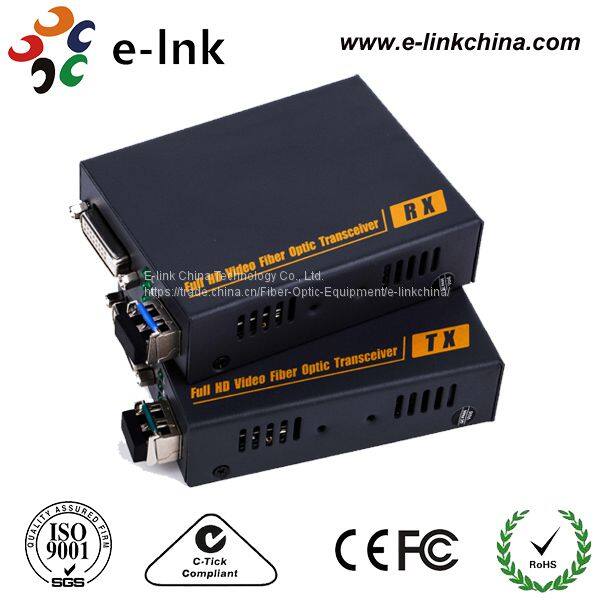

DVI-D Optical Fiber Transmission Video Over Converter/Extender
- Shenzhen
- T/T L/C Credit Card PayPal Other Cash Escrow
- 3 days
You May Like
-
Industrial Unmanaged 8-port 1000Base-FX SFP + 2-port 10/100/1000Base-TX Optical Ethernet Switch
-
Self-Configured Hardened 2-port 10/100/1000BASE-T + 2-port 1000BASE-FX SFP Ethernet Switch
-
Self-Configured Hardened 4-port 10/100/1000BASE-T + 2-port 1000BASE-FX SFP Ethernet Switch
-
Industrial 4-port 10/100BASE-T + 1-port 100BASE SFP Ethernet Switch With PoE+
-
Self-Configured Hardened 4-port 10/100/1000BASE-T + 2-port 1000BASE-FX SFP Ethernet Switch With PoE+
-
Self-Configured Hardened 2-port 10/100/1000BASE-T + 2-port 1000BASE-FX SFP Ethernet Switch With PoE+
Product Details
| Brand Name | E-link | Place of Origin | China | |
| Model Number | LNK-DVI-106-10 Series |
Product Description
Product: DVI Fiber Optic Extender
Model: LNK-DVI-106 Series
Overview
The LNK-DVI-106 Fiber optic extender provides extension of DVI signals long distances over one fiber optic cable, it supports high resolution up to 1080P, EDID copy function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Features
Transmits DVI video signals up to 2km-10km over one fiber optic cable;
Support video resolution up to 1920*1200@60Hz;
Support copy EDID, can match many kind display device;
Compliance with DVI 1.0 and HDCP 1.2 standard;
High compatibility, can auto-match source and display device;
Built-in automatic adjustment system, make the image smooth, clear and stable;
Built-in ESD protection system;
Simple to install, plug and play;
Technical Indexes
Parameter | Description | |
Video | Standards | DVI 1.0; HDCP 1.2 |
Maximum pixel clock | 165MHz | |
Maximum data rate | 6.75Gbps | |
Resolution range | Up to 1920X1200@60Hz | |
Connector | DVI-D | |
Impedance | 100Ω | |
Optical fiber | Interface | SFP model – LC connector |
Fiber type | Single-mode | |
Wavelength | Single-mode 1310nm(optional) | |
Interface bandwidth | 10Gbps | |
Transmission distance | Single-mode fiber: standard 2km；maximum 10km | |
Other | Power supply | The power adapter: DC 5V/2A |
Power dissipation | MAX 5W | |
Temperature | Operating: -5℃ ~ +70℃ | |
Humidity | Operating: 5% ~ 90% | |
Dimension | 94.5*73*26mm | |
The warranty | 1 year free warranty | |
Pannel

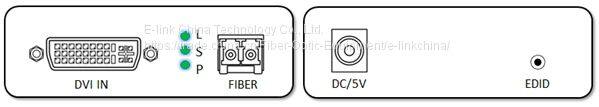

Transmitter:

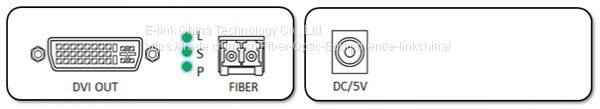

Receiver:
Port name | Description |
DVI IN/OUT | DVI signal input/output |
EDID | EDID button, press 3 second to copy EDID of display device |
DC/5V | Power adapter socket |
FIBER | SFP model --- LC connector |
LED indicator | Description |
L | Optical fiber signal connection indicator |
S | Video signal connection indicator |
P | System power indicator |
Application Diagram
Ordering Information
Item | Description | |
LNK-DVI-106 | DVI-D to Fiber Converter: DVI-D Optical fiber transmission without compression /DVI - D, Multi-mode Fiber, 350 meters, LC(SFP), including 1 transmitter & 1 receiver, used by pairs | |
LNK-DVI-S106-10 | DVI-D to Fiber Converter: DVI-D Optical fiber transmission without compression /DVI - D, Single Mode, Single Fiber, 10KM, LC(SFP), including 1 Transmitter & 1 Receiver, used by pairs |
