Home > Products > HDMI over Fiber Optic Extender > 4K HDMI SFP Port Fiber Optic Extender
4K HDMI SFP Port Fiber Optic Extender
- shenzhen
- T/T Credit Card PayPal Other
- 3 days
You May Like
Product Details
| Brand Name | E-link | Place of Origin | China | |
| Model Number | LNK-H4K100 Series |
Product Description
4K HDMI Fiber Optic Extender
Model: LNK-H4K100 Series
Overview
The LNK-H4K100 Fiber optic extender provides extension of HDMI and 3D signals long distances over one fiber optic cable, it supports high resolution up to 3840*2160/30P. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Features
• Transmits HDMI video signals up to 2km-60km over one fiber optic cable;
• Support video resolution up to 3840*2160@30Hz, 3D signal;
• Compliance with HMDI 1.4 and HDCP 1.2 standard;
• High compatibility, can auto-match source and display device;
• Built-in automatic adjustment system, make the image smooth, clear and stable;
• Built-in ESD protection system;
• Simple to install, plug and play;
Technical Indexes
Parameter | Description | |
Video | Standards | HDMI 1.4; HDCP 1.2 |
Maximum pixel clock | 340MHz | |
Maximum data rate | 10.2Gbps | |
Resolution range | Up to 3840*2160@30Hz | |
Connector | Female HDMI type A | |
Impedance | 100Ω | |
Optical fiber | Interface | SFP model – LC connector |
Fiber type | Multi-mode / single-mode (optional) | |
Wavelength | Multi-mode 850nm / Single-mode 1310nm(optional) | |
Interface bandwidth | 10Gbps | |
Transmission distance | OM3 multi-mode fiber: maximum 300m, Single-mode fiber: standard 2km;maximum 60km | |
Other | Power supply | The power adapter: DC 5V/2A |
Power dissipation | Max 4W | |
Temperature | Operating: -5℃ ~ +70℃ | |
Humidity | Operating: 5% ~ 90% | |
Dimension | 104*89*28mm | |
Pannel

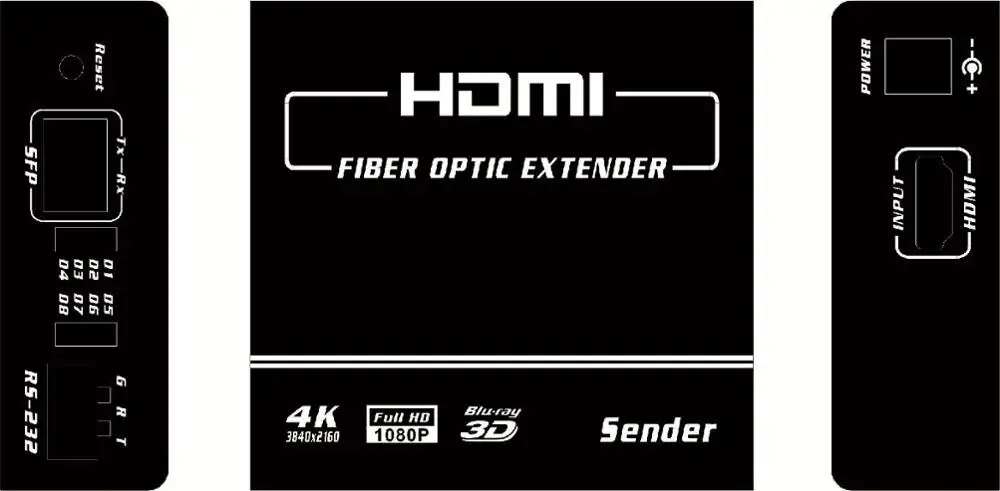

Sender:

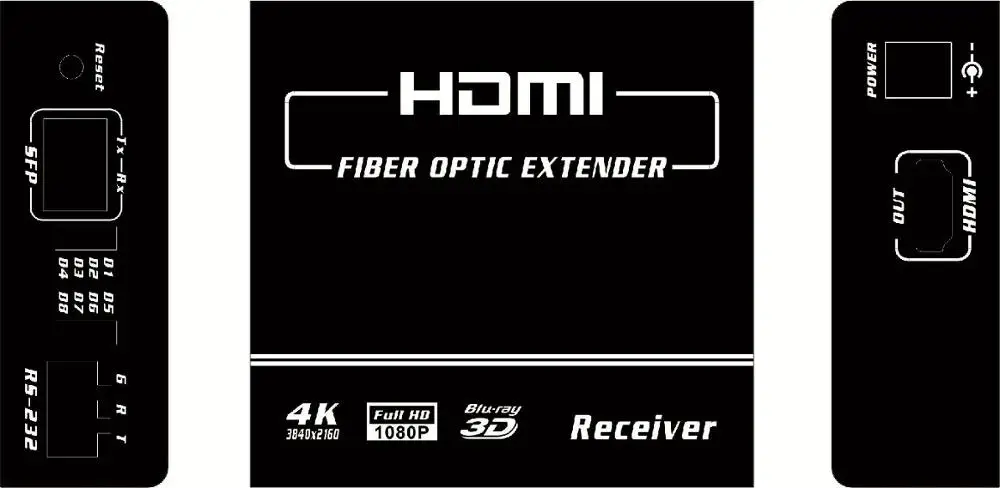

Receiver:
Port name | Description |
HDMI IN/OUT | HDMI signal input/output |
RESET | System reset button |
POWER | Power adapter socket |
SFP | SFP model --- LC connector |
RS-232 (RS-232 standard) | Non-support |
LED indicator | Description |
D1 | System power indicator |
D2 | SENDER: Sink plug in and RECEIVER Optical input is ok RECEIVER: Reserve |
D3 | Optical fiber signal connection indicator ON: LOS OFF: OK |
D4 | Source plug in |
D5 | Reserve |
D6 | Reserve |
D7 | Reserve |
D8 | Reserve |

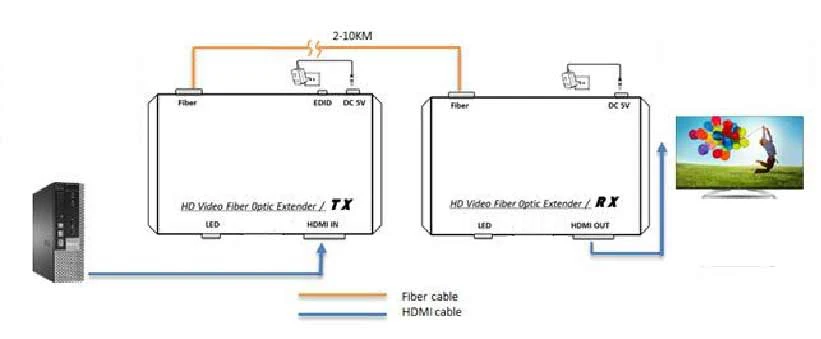

Application Diagram
Ordering Information
Item | Description | |
LNK-H4K100 | 4K (3840*2160/30P) HDMI Fiber Extender, SFP Port(Excl. SFP), including 1 transmitter & 1 receiver, used by pairs |
