Overview
The HDMI Fiber optic extender provides extension of HDMI and 3D signals long distances over one fiber optic cable, it supports high resolution up to 4K*2K, EDID copy/pass-thru function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Features
Transmits HDMI video signals up to 2km-10km over a pair fiber optic cable;
Support video resolution up to 3860*2160@30Hz, 3D signal;
Support copy EDID copy/pass-thru, can match many kind display device;
Compliance with HDMI 1.4 standard;
High compatibility, can auto-match source and display device;
Built-in automatic adjustment system, make the image smooth, clear and stable;
Built-in ESD protection system;
Simple to install, plug and play;
Technical Indexes
Parameter |
Description |
|
Video |
Standards |
HDMI 1.4 |
Maximum pixel clock |
225MHz |
|
Maximum data rate |
6.75Gbps |
|
Resolution range |
Up to 3840*2160@30Hz |
|
Connector |
Female HDMI type A |
|
Impedance |
100Ω |
|
Optical fiber |
Interface |
SFP model – LC connector |
Fiber type |
Single-mode |
|
Wavelength |
Single-mode 1310nm |
|
Interface bandwidth |
10Gbps |
|
Transmission distance |
Single-mode fiber: standard 2km;maximum 10km |
|
Other |
Power supply |
The power adapter: DC 5V/2A |
Power dissipation |
MAX 5W |
|
Temperature |
Operating: -5℃ ~ +70℃ |
|
Humidity |
Operating: 5% ~ 90% |
|
Dimension |
94.5*73*26mm |
|
Pannel

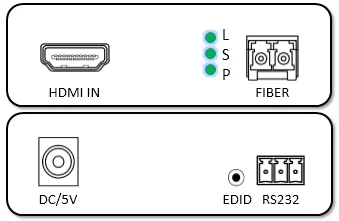

Transmitter:

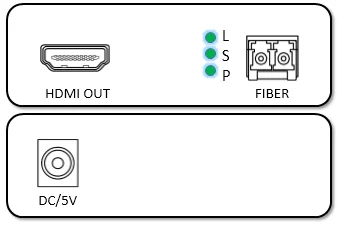

Receiver:
Port name |
Description |
HDMI IN/OUT |
HDMI signal input/output |
EDID |
EDID Copy button, Press 3 seconds, copy EDID from HDMI IN display device to system .If HDMI IN interface no display connect, restore default EDID. |
DC/5V |
Power adapter socket |
FIBER |
SFP model --- LC connector |
LED indicator |
Description |
L |
Optical fiber signal connection indicator |
S |
Video signal connection indicator |
P |
System power indicator |

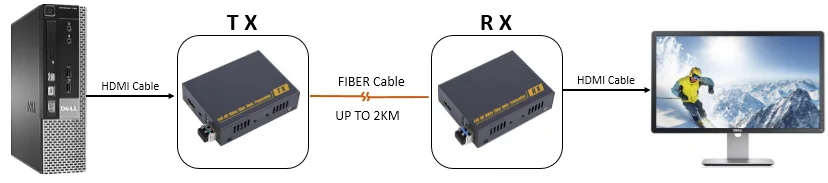

Application Diagram
Ordering Information
Item |
Description |
|
LNK-HDMI-106H |
4K*2K HDMI Fiber Optic Extender, Compliance with HDMI1.4 standard, 3860*2160@30Hz, 3D signal, support EDID + HDCP + RS232 pass-through, LC(SFP), single mode, single fiber, 2km, including 1 transmitter & 1 receiver, used by pairs |
