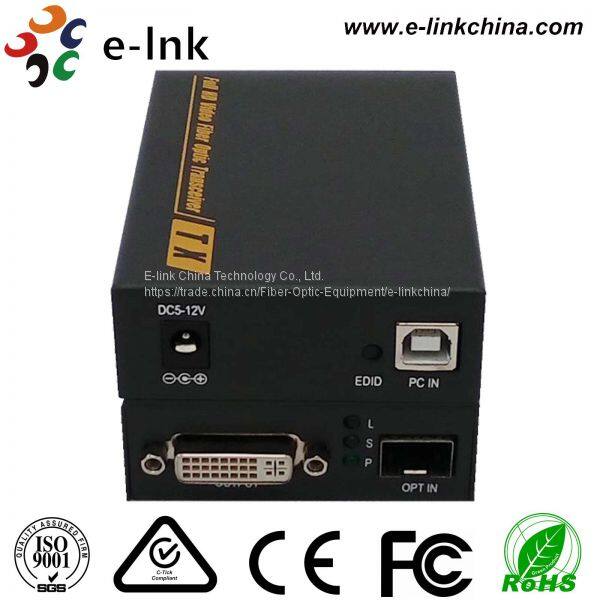

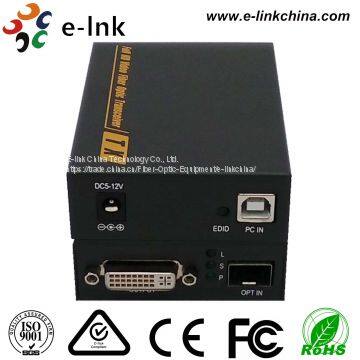

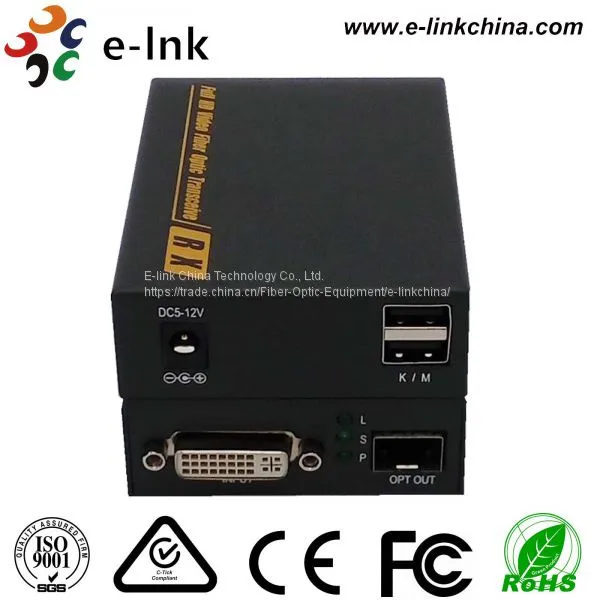

Product: 4K DVI KVM Fiber Optic Extender
Model: LNK-DVI-106H Series
Overview
The 4K DVI Fiber optic extender provides extension of DVI and 3D signals long distances over one fiber optic cable, it supports high resolution up to 3860*2160@30Hz and 2560*1600@60Hz, EDID copy/pass-thru ,KVM(USB),function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Features
Transmits DVI video signals up to 2km over a pair fiber optic cable;
Support video resolution up to 3860*2160@30Hz, 2560*1600@60Hz, 3D signal ;
Support copy EDID copy/pass-thru, can match many kind display device;
Compliance with DVI 1.0 standard, KVM-USB (optional);
High compatibility, can auto-match source and display device;
Built-in automatic adjustment system, make the image smooth, clear and stable;
Built-in ESD protection system;
Simple to install, plug and play;
Technical Indexes
Parameter | Description | |
Video | Standards | DVI1.0 |
Maximum pixel clock | 225MHz | |
Maximum data rate | 6.75Gbps | |
Resolution range | Up to 3840*2160@30Hz, 2560*1600@60Hz | |
Connector | Female DVI type A | |
Impedance | 100Ω | |
KVM (Optional) | Interface | PC: MINI-USB USB-A |
Optical fiber | Interface | SFP model – LC connector |
Fiber type | Single-mode | |
Wavelength | Single-mode 1310nm | |
Interface bandwidth | 10Gbps | |
Transmission distance | Single-mode fiber: standard 2km | |
Other | Power supply | The power adapter: DC 5V~12V/2A |
Power dissipation | MAX 5W | |
Temperature | Operating: -5℃ ~ +70℃ | |
Humidity | Operating: 5% ~ 90% | |
Dimension | 94.5*73*26mm | |

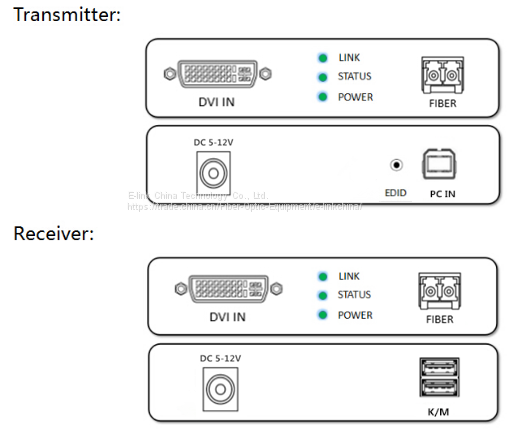

Pannel
Port name | Description |
DVI IN/OUT | DVI signal input/output |
EDID | EDID Copy button, Press 3 seconds, copy EDID from DVI IN display device to system .If DVI IN interface no display connect, restore default EDID. |
DC/5V | Power adapter socket |
FIBER | SFP model --- LC connector |
LED indicator | Description |
L | Optical fiber signal connection indicator |
S | Video signal connection indicator |
P | System power indicator |
Ordering Information
Item | Description | |
LNK-DVI-106H | 4K*2K DVI Fiber Optic Extender, Compliance with DVI 1.0 standard, 3860*2160@30Hz, 2560*1600@60Hz, 3D signal, support EDID + HDCP + RS232 pass-through, LC(SFP), single mode, single fiber, 2km, including 1 transmitter & 1 receiver, used by pairs |
