1-Ch HDMI Video + 1-Ch 10/100M Ethernet Over Fiber Extender

E-link China Technology Co., Ltd.
1-Ch HDMI Video + 1-Ch 10/100M Ethernet Over Fiber Extender thumbnail-1
1-Ch HDMI Video + 1-Ch 10/100M Ethernet Over Fiber Extender thumbnail-2
1-Ch HDMI Video + 1-Ch 10/100M Ethernet Over Fiber Extender thumbnail-3
1-Ch HDMI Video + 1-Ch 10/100M Ethernet Over Fiber Extender thumbnail-4
1-Ch HDMI Video + 1-Ch 10/100M Ethernet Over Fiber Extender photo-1

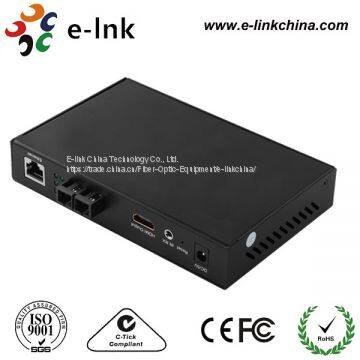

1-Ch HDMI Video + 1-Ch 10/100M Ethernet Over Fiber Extender photo-2

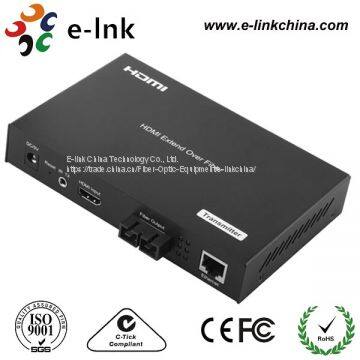

1-Ch HDMI Video + 1-Ch 10/100M Ethernet Over Fiber Extender photo-3

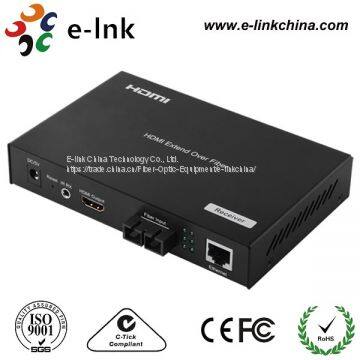

1-Ch HDMI Video + 1-Ch 10/100M Ethernet Over Fiber Extender photo-4
US$ 400 - 440 MOQ: 1 Pair
Key Specifications
Get Latest Price
Brand Name:
E-link
Place of Origin:
China
Model Number:
LNK-HD-FE Series
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
3 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name E-link
Place of Origin China
Model Number LNK-HD-FE Series
1-Ch HDMI Video + 1-Ch 10/100M Ethernet over Fiber Extender


Model: LNK-HD-FE series

Overview

LNK-HD-FE HDMI over Fiber Extender is a high quality HDMI Extender product, extend 1080P HDMI Signal up to 20km over a single optical fiber cable, built in IR remote control, and with Ethernet pass through. It provides high resolution image quality; 1080p high definition video, let people can enjoy clear HD Video effects.





Features

l   Automatically adapt range of input signal sampling frequency (32~100KHz)

l   Provides high-resolution image quality.

l    Plug-and-play operation - no programming or setup required.

l   Extends 1080p HDMI signals up to 20km over a optic cable.

l   Optical fiber use rules out any RF interference.

l   Ethernet Pass-Through.

l   Built in IR remote control.

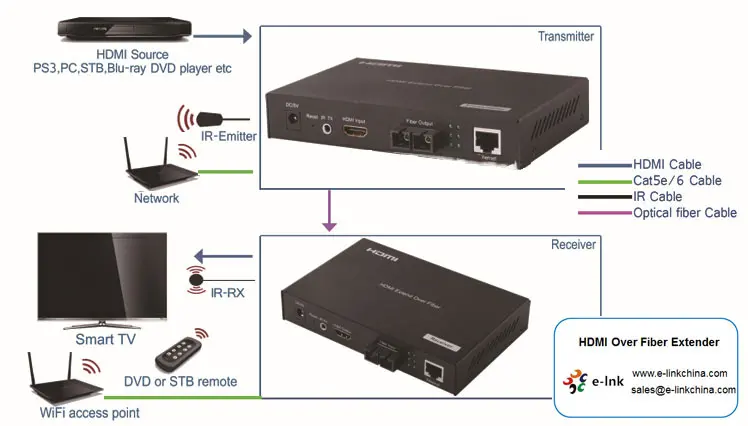

Application




Technical Indexes

Operating Temperature

-5°C to 35°C(23°F to 95°F)

Storage Temperature

-10°C to 70°C(14°F to 158°F)

Operating Humidity

10 to 90%RH (No Condensation)

Storage Humidity

5 to 90%RH (No Condensation)

Fiber Module

1310nm Single Mode Transmitter & Receiver

Fiber Connector

SC Duplex Connector

Transmission Distance

1080P 36bit @60Hz  20Km(Maximum)

Power consumption

TX:8watts; RX:8watts((Maximum)

IR wavelength &frequency

Wavelength:940nm,frequency 38kHz

Dimension (L×W×H)

TX & RX: 154x99.5x27mm

Net Weight

Transmitter:410g, Receiver:410g,

LED Indicators

Power, Link/Act and Speed




Product Tags: Fiber Optic Extender , 1-ch HDMI Fiber Transceiver , 10/100M Ethernet over Fiber Extender
