HDMI Fiber Optic with External Audio Extender
- 100 Pair / Pairs per Month
- shenzhen
- T/T Credit Card PayPal Other
- 3 days
- ZTE 5928E, RS-5928E, RS-59EC-PWR-AC10, RS-59EC-PWR-DC10, 24 GE RJ45 + 1 expansion card ZTE ZXR10 5928E 5952E 5916E RS-5916E RS-
- ZTE 2952E, RS-2952E-AC, RS-2952E-DC, 48 FE RJ45 4 GE SFP ZTE ZXR10 2952E 2928E 2918E 2910E
- ZTE 3950-28TM, RS-3950-28TM-AC, 24 FE RJ45 + 2 GE SFP + 1 expansion card slot ZTE ZXR10 3950
- ZTE 2950-18TC, RS-2950-18TC-AC, 16 FE RJ45 + 2 GE Combo ZTE ZXR10 2950
- ZTE S2XF48A, 48-port 10GE SFP+ optical interface ZTE ZXR10 8902E 8905E 8908E 8912E RS-8902E RS-8905E RS-8908E RS-8912E
- ZTE 5250-28PM-H, RS-5250-28PM-H, 20 GE RJ45 (POE/POE+) + 4 GE Combo ports + 1 expansion card ZTE ZXR10 5250
Product Details
Brand Name: | E-link | Place of Origin: | China | Model Number: | LNK-HDMI Series |
Product Description
Model: LNK-HDMI Series
Overview
The LNK-HDMI-109H HDMI Optical transmitter and receiver adopts the uncompressed digital HD video and high-speed digital optical fiber transmission technology advanced,It can transfer signal source(computer signal source,VGA signal source high digital DVD/DVR) to long distance terminal easily,with strong anti-interferance performance,ensure the signal completed and stable
Features
Full digital, Uncompressed HD optical fiber transmission
Support Full HD 1920*1200@60Hz
The attenuation of optical module SFP low to -3db
1 channel analog audio(3.5mm)
Support HDMI 1.3b Protocal
Support KVM
Automatic identification and configure display mode
Automatic equalization inside, stable and clear graphics.
ESD protection circuit inside, to ensure the ESD damage.
Easily to installation, plug and play, no need to set up
Application Diagram
Technical Indexes
Temperature | -5°C to +75°C |
Humidity | 5 to 90 % RH (no condensation) |
The signal of Input and output | HDMI |
Protocal | HDMI1.3b,HDCP1.2 |
Pixel band width | 300MHz |
Video format | 800x600P60 1024x768P601280x800P60 1280x1024P601360x768P60 1366x768P601400x1050P60 1440x900P601600x900P60 1600x1200P601680x1050P60 1280x720P501280x720P60 1920x1080P241920x1080P25 1920x1080P301920x1080P50 1920x1080P601920x1080I60 1920x1080I50 1920x1200P60
|
The signa of Audio input and output | 3.5MM Audio |
Audio format | 44.1K,48K,96K,176K,192K |
RS232 port | 3 ports industrial terminal |
RS232 Baud rate | Support 115200 and all below |
RS 232 Data bits | 8 bits |
KVM receiver port | A USB port |
KVM transmitter port | B USB port |
Fiber port | LC |
Fiber module | SFP single mode |
Fiber wavelength | 1550/1310nm |
Fiber band width | 3Gbps |
The Maximum transmission distance of HDMI and Audio | 10KM/20KM/40KM/60KM |
Input voltage | DC 12V,inside + outside - |
Power consumption | HDMI receiver 4W HDMI transmitter 4W |
Device size | 109.5*152*29.3mm(length*width*height) |
Packing box size | 328*273*90mm(length*width*height) |
Weight | 1CH 3KG/Pair 2CH 5KG/Pair 4Ch 6KG/Pair 8CH 10KG/Pair |
Pannel

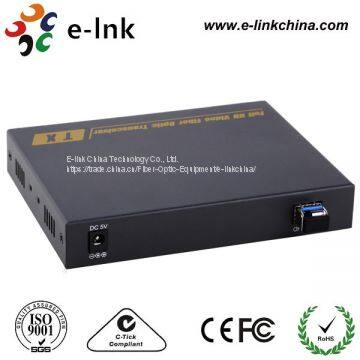

Transmitter:

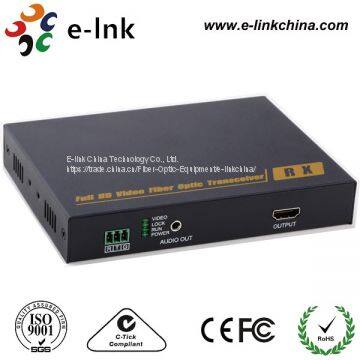

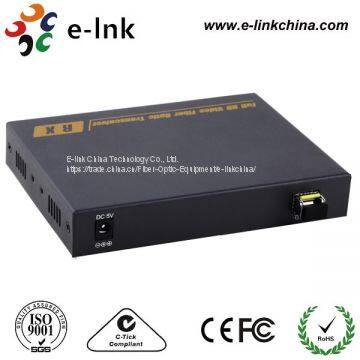

Receiver:
Interface | Transmitter and Receiver |
HDMI_IN | HDMI signal input port |
HDMI_OUT | HDMI signal output port |
OPT | Fiber input port |
AUDIO_IN | Audio input port |
AUDIO_OUT | Audio output port |
DC-12V | 12V Power port |
R T G | RS232 port R(receive) T(transmit) G(ground) |
PC | USB port to connect computer |
KEYBOARD/MOUSE | Connect to keyboard and mouse |
DC-12V | 12V Power port |
Indicator Light | HDMI Transmitter | HDMI receiver | |
OPTICAL | On | Optical signal on | |
Off | No optical signal | ||
VIDEO | On | Video signal on | |
Off | No Video Signal | ||
RUN | On | Device works smoothly | |
Off | Device not works smoothly | ||
POWER | On | Power on | |
Off | Power off | ||
Note: HDMI audio output is default, when detect external audio input, switch to external audio.
Ordering Information
Item | Description | |
LNK-HDMI-109 | HDMI to Fiber Converter: 1-Ch HDMI 1080P Video with external Audio, Compliant with HMDI 1.3 and HDCP 1.2 standard, Single Mode Fiber, 10KM, LC(SFP), including 1 transmitter & 1 receiver, used by pairs | |
LNK-HDMI-209 | HDMI to Fiber Converter: 2-Ch HDMI 1080P Video with external Audio, Compliant with HMDI 1.3 and HDCP 1.2 standard, Single Mode Fiber, 10KM, LC(SFP), including 1 transmitter & 1 receiver, used by pairs | |
LNK-HDMI-409 | HDMI to Fiber Converter: 4-Ch HDMI 1080P Video with external Audio, Compliant with HMDI 1.3 and HDCP 1.2 standard, Single Mode Fiber, 10KM, LC(SFP), including 1 transmitter & 1 receiver, used by pairs | |
LNK-HDMI-809 | HDMI to Fiber Converter: 4-Ch HDMI 1080P Video with external Audio, Compliant with HMDI 1.3 and HDCP 1.2 standard, Single Mode Fiber, 10KM, LC(SFP), including 1 transmitter & 1 receiver, used by pairs |
