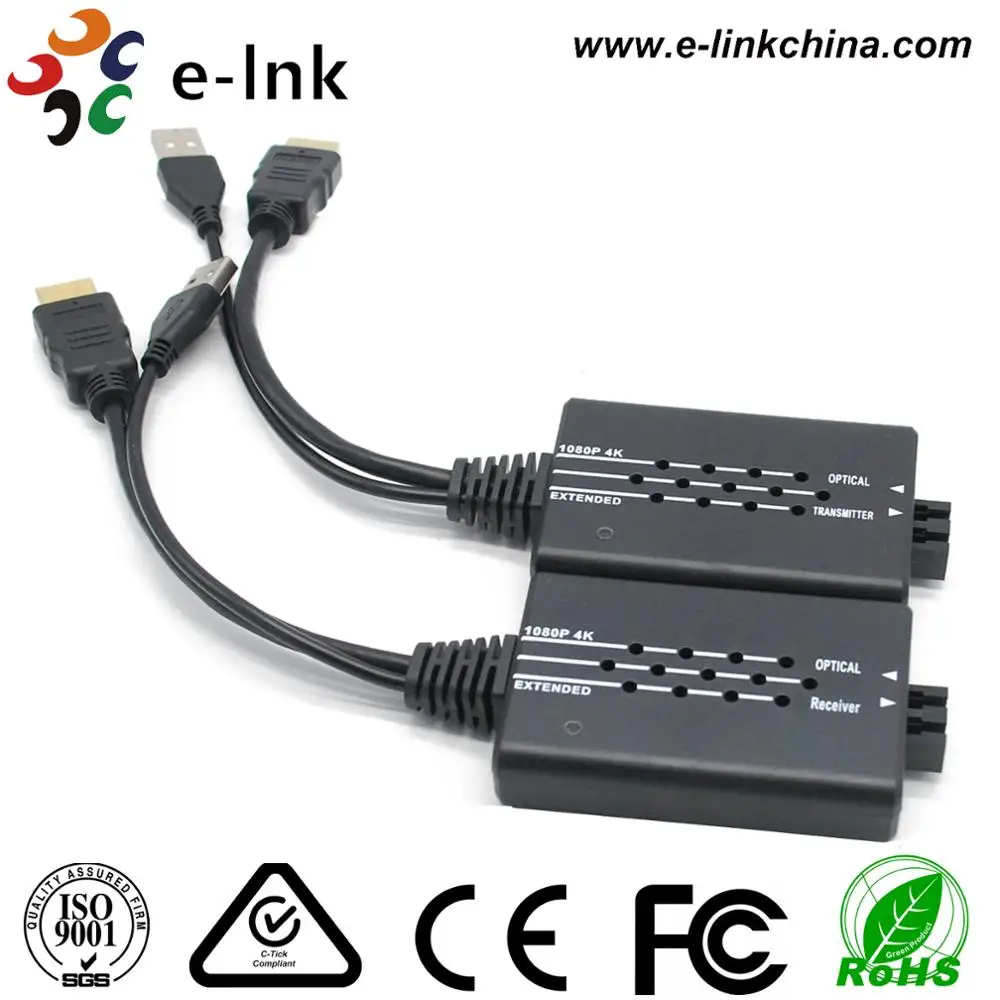

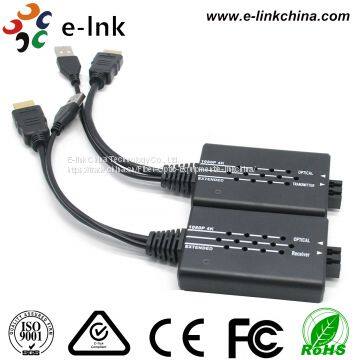

Mini HDMI Fiber Optic Extender

Overview

This product is a broadcast level high-definition HDMI optical transceiver, converting HDMI signal into 10G difference signal through the patent conversion chip. The optical module and optical fiber are used to send and receive, which realized remote transmission of HDMI multimedia signal. Through light module of different transmission distance, it realized the long distance transmission as far as 60 km. This transmission product has no loss, no transmission delay and can meet various requirements of HD long distance transmission. It supports HDMI 1.4 HD and 3D video signal transmission. The EDID can be reversed and it supports HDCP. The resolution can respectively up to 720 p / 60 Hz, 1080 I / 60 Hz, 1080 p /30 Hz, 1080 p / 60 Hz, 1080 p / 120 Hz and it supports 7.1 -channel PCM surround sound and audio compression.

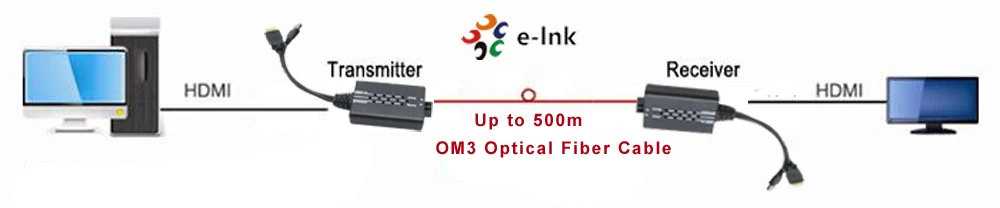

HDMI optical transceiver is a combination of transmitter and receiver, which realized the perfect transmission from pixel to pixel of HDMI video image. The product is compact and its small shell allows it can be concealed behind the flat panel display.

Features

l   Broadcast quality, civilian price

l   Full digital, zero compression and zero delayed

l   Support the transfer rate of 10 G bps

l   The highest resolution: 1920 * 1080 @ 120Hz or 4 k * 2 k @ 30 Hz

l   Compatible with HDMI1.4

l   Support 3D

l   Support HDCP standard

l   Support 7.1 -channel PCM surround sound and compression audio

l   Compatible with transmission of DVI signal

l   Support hot plugging of HDMI interface

l   Support unvarnished transmission of RS232 serial port data

l   Low energy consumption, long distance,

l   Plug and play, do not need to set

Application

l  Broadcast level systemic high-definition HDMI transmission

l  HD video multimedia information publishing system in platform of subway station

l  HD video multimedia information publishing system in platform of train station

l  HD video signal long distance transmission of military exercises

l  HD video signal long distance transmission of security monitoring

l  HD video signal transmission of large performance

l  All kinds of occasions that need high definition video

Technical Indexes
