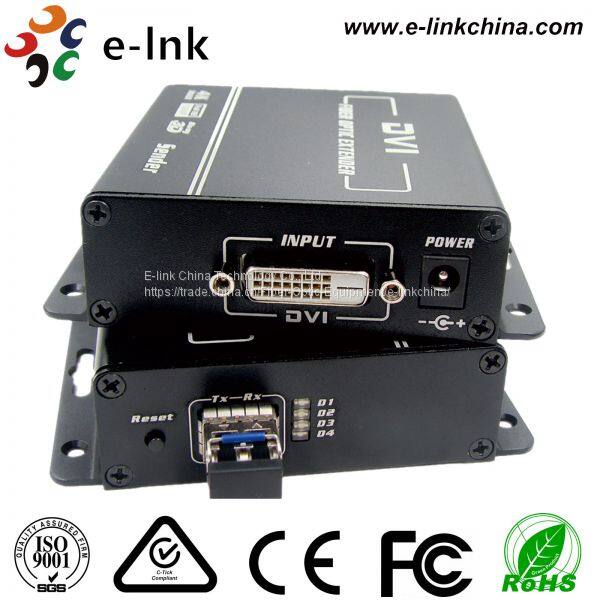

1-channel 4K DVI Fiber Optic Extender

Product: 4K DVI Fiber Optic Extender

Model: LNK-4KDVI Series

Overview

The LNK-4KDVI series is a high performance 4K Optical Extender that transmits high resolution DVI/HDMI signals over extreme distances using 2 cores fiber. This extender supports HDMI v1.4  signals with resolutions up to 4K (4096x2160/30p) over cable distances up to 300m.

The extender set consists of an optical transmitter module that converts the DVI/HDMI signals into light pulses for transmission over a 2 cores fiber. An optical receiver module converts the light pulses back to a DVI/HDMI signal for display on a monitor or projector.

Most single-fiber optical extenders transmit signals over multiple optical wavelengths, which can suffer from chromatic dispersion over long cable runs.  To avoid this issue, this extender employs a cutting-edge, high-speed SerDes that combines the DVI/HDMI signal channels into a single uncompressed 10.3 Gbps bit stream.  This enables the optical transmission of the signal over a single optical wavelength, which provides increased signal fidelity, stability and flawless image quality, regardless of cable length.  These features make the LNK-4KDVI series the ideal future-proof choice for systems designers and integrators who need to transmit high resolution DVI / HDMI signals over extreme distances.

Features

• Long-distance      transmission of DVI-D, audio, RS-232 signals via a single optical fiber.

• Supports      DVI and HDMI v1.4

• Supports      4K (UHD) and resolutions up to 3840x2160/30P, 4096x2160/30P

• Supports      3840*2160/60P(YCbCr 420)，4096*2160/60P(YCbCr      420)

• Supports      1080p resolution with color depth up to 24 bits/pixel

• Supports      HDMI bit-rates up to 3.4 Gbps/color,10.2 Gbps total

• HDCP      1.2 compliant

• Support      3D TV pass-through

• Support EDID pass-through

• LPCM      7.1, Dolby® TrueHD, and DTS-HD Master Audio™

• Plug      and Play

• Built-in      EQ(Receiver)

• Up      to 300m distance by OM3-300(Custom Available)

•  Low RFI / EMI profile for sensitive      applications

• Surface-mountable

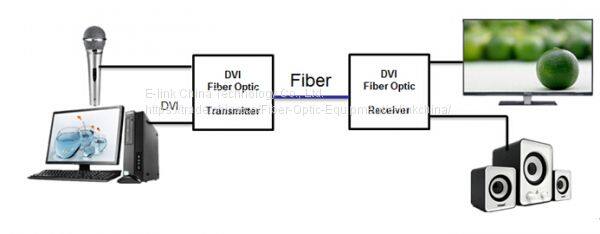

Application

Technical Indexes

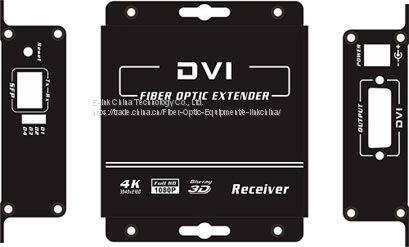

Panel Description

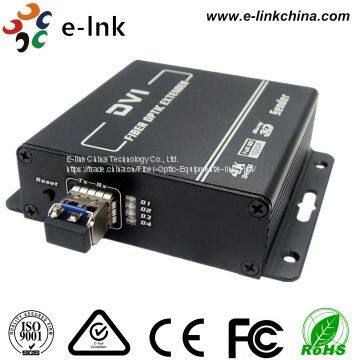

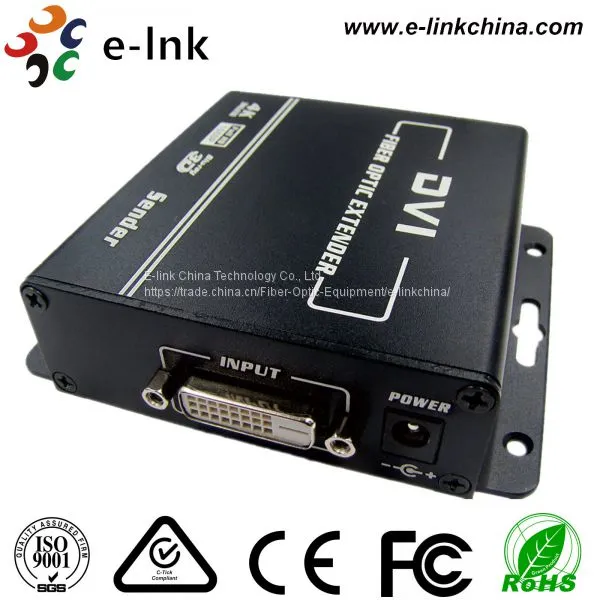

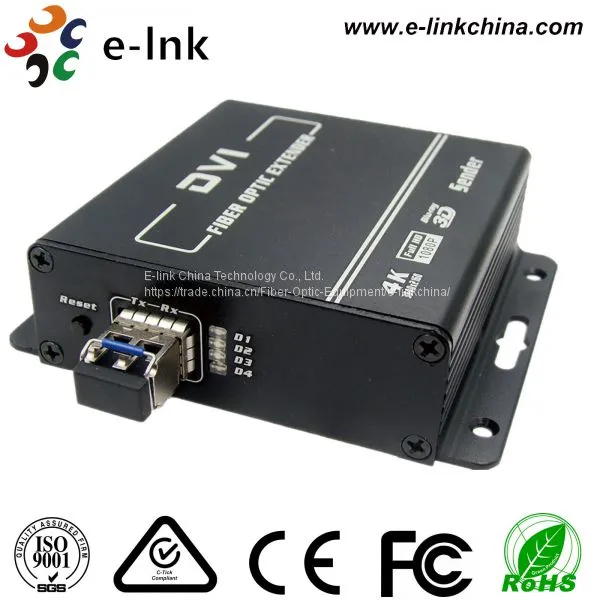

Transmitter

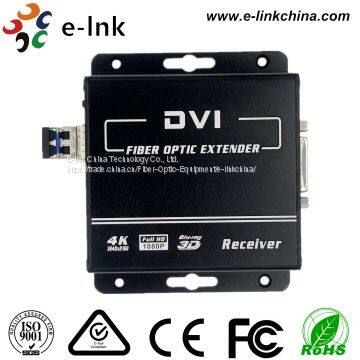

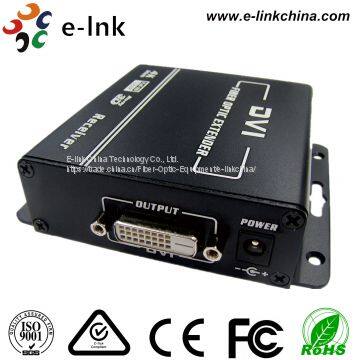

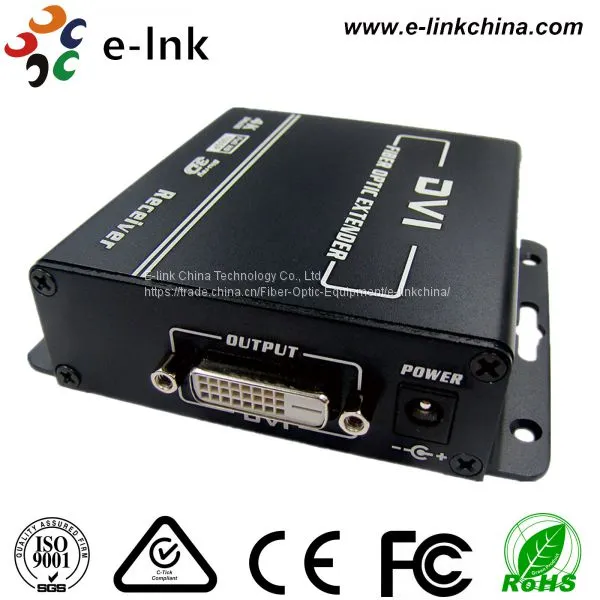

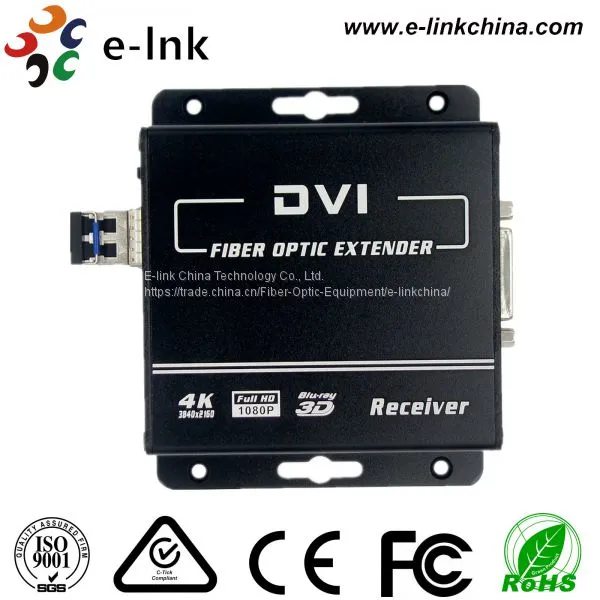

Receiver
