Overview

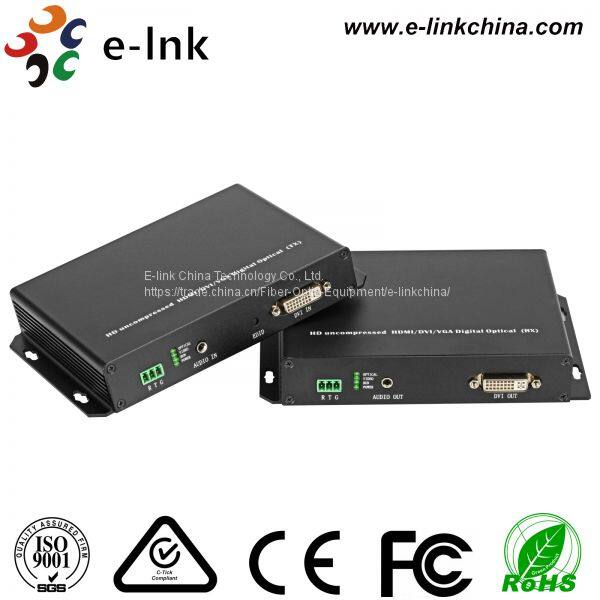

The DVI KVM Fiber Extender (including DVI Optical Transmitter & Receiver) adopts the uncompressed digital HD video and high-speed digital optical fiber transmission advanced technology. It can transfer signal source(computer signal source, DVI signal source high digital DVD/DVR) to long distance terminal easily, with strong anti-interference performance, ensure the signal completed and stable.
Features
Full digital, Uncompressed HD optical fiber transmission
Support Full HD 1920*1200@60Hz
The attenuation of optical module SFP low to -3db
1 channel analog audio（3.5mm）
Support DVI 1.0 Protocol
Support KVM
Automatic identification and configure display mode
Automatic equalization inside, stable and clear graphics.
ESD protection circuit inside, to ensure the ESD damage.
Easily to installation, plug and play, no need to set up
Technical Indexes
Temperature | -5°C to +75°C |
Humidity | 5 to 90 % RH (no condensation) |
The signal of Input and output | DVI-I |
Protocol | DVI1.0, HDCP1.2 |
Pixel band width | 165MHz |
Video format | 800x600P601024x768P601280x800P601280x1024P601360x768P601366x768P601400x1050P601440x900P601600x900P601600x1200P601680x1050P601280x720P501280x720P601920x1080P241920x1080P251920x1080P301920x1080P501920x1080P601920x1080I601920x1080I501920x1200P60 |
The signa of Audio input and output | 3.5MM Audio |
Audio format | 44.1K,48K,96K,176K,192K |
RS232 port | 3 ports industrial terminal |
RS232 Baud rate | Support 115200 and all below |
RS 232 Data bits | 8 bits |
KVM receiver port | A USB port |
KVM transmitter port | B USB port |
Fiber port | LC |
Fiber module | SFP single mode |
Fiber wavelength | 1550/1310nm |
Fiber band width | 3Gbps |
The Maximum transmission distance of DVI and Audio | 10KM 20KM 40KM 60KM |
Input voltage | DC 12V，inside+ outside- |
Power consumption | DVI receiver 4W DVI transmitter 4W |
Device size | 109.5*152*29.3mm(length*width*height) |
Packing box size | 328*273*90mm(length*width*height) |
Weight | 1500g |
Panel

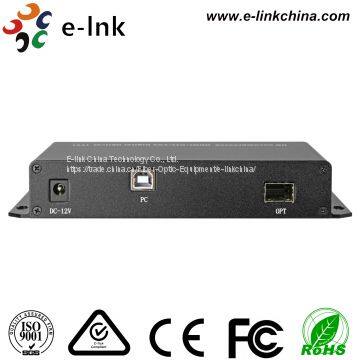

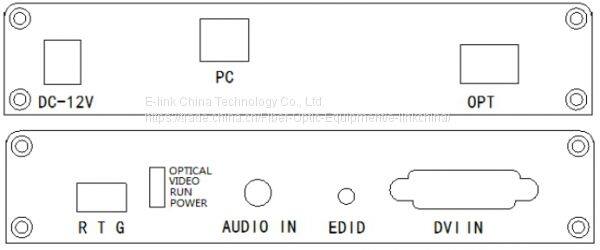

Transmitter:

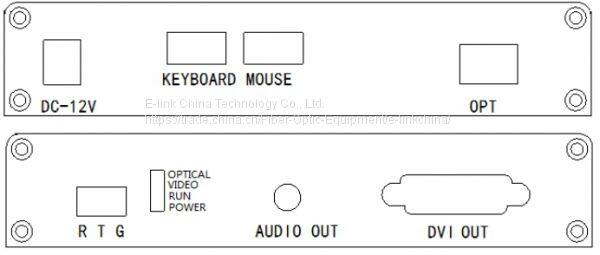

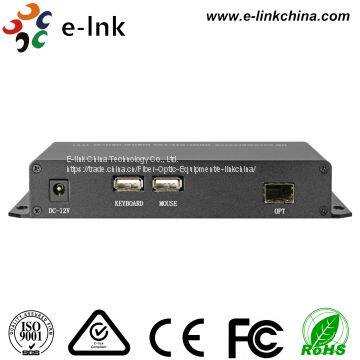

Receiver:
Interface | Transmitter and Receiver |
DVI_IN | DVI signal input port |
DVI_OUT | DVI signal output port |
OPT | Fiber input port |
AUDIO_IN | Audio input port |
AUDIO_OUT | Audio output port |
DC-12V | 12V Power port |
R T G | RS232 port R(receive) T（transmit）G（ground） |
PC | USB port to connect computer |
KEYBOARD/MOUSE | Connect to keyboard and mouse |
DC-12V | 12V Power port |
Indicator Light | DVI Transmitter | DVI receiver | |
OPTICAL | On | Optical signal on | |
Off | No optical signal | ||
VIDEO | On | Video signal on | |
Off | No Video Signal | ||
RUN | On | Device works smoothly | |
Off | Device not works smoothly | ||
POWER | On | Power on | |
Off | Power off | ||

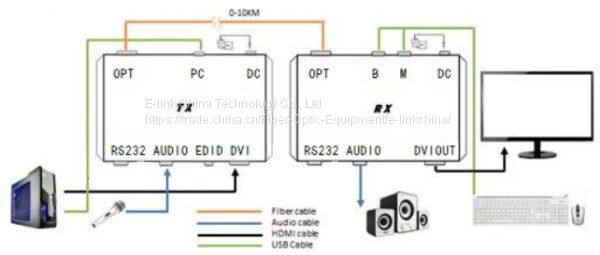

Application Diagram
Ordering Information
Item | Description | |
LNK-DVI-1V1A1D | DVI KVM Extender: DVI 1.0 Protocol, 1Ch Analog Audio, Support KVM, SFP port (3G), including 1 transmitter & 1 receiver, used by pairs |
