HDMI Optical Transceiver

HDMI Optical Transceiver

Overview

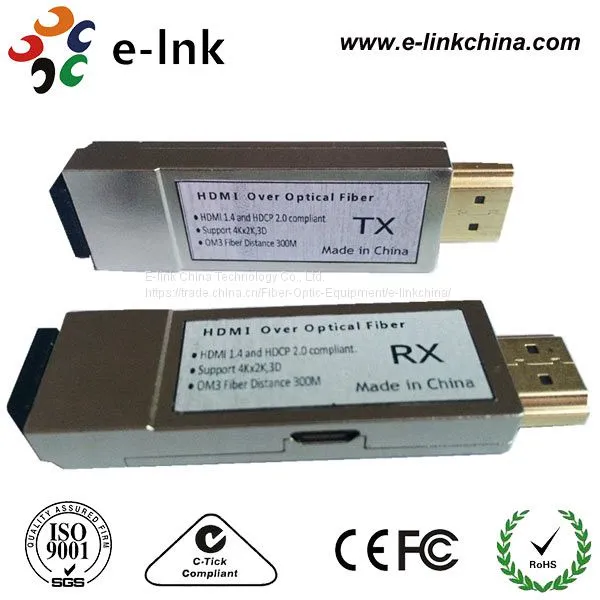

The 4K HDMI optical transceiver are enclosed HDMI optical modules designed to support transmission of an uncompressed lossless HDMI 1.4a signal over multimode optical fiber at 850nm, up to distances of 300m, at a resolution of 4Kx2K. 4 K HDMI

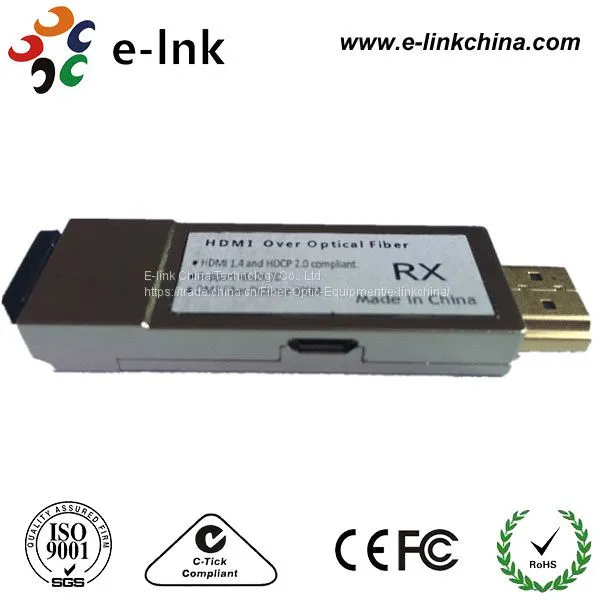

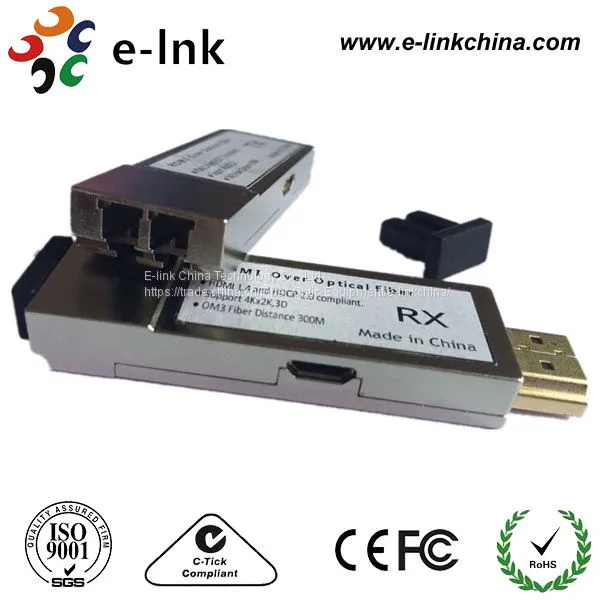

OPTICAL TRANSCEIVER -T converts an HDMI signal to a single 10Gb/s serial data stream for transmission over two optical fibers. 4 K HDMI OPTICAL TRANSCEIVER -R converts the serial data back to an HDMI signal. The transceivers are RoHS compliant and lead-free per requirements in Europe and China. This product is ideal for large-screen display, conferencing systems and home entertainment and so on. The device has the ability of anti-interference, to ensure the stability of the signal.

Features

Ø  HDMI 1.4a Support

Ø  HDCP Support

Ø  DDC CEC HPD Signal Support

Ø  Supports up to 300m Transmission Distance at up to 10.3Gbps with OM3 Multimode Fiber

Ø  Supports All Modes up to 4Kx2Kx30 Resolution

Ø  Standard HDMI Connector

Ø  Integrated USB Connector for Power

Ø  Double Power Supply (HDMI 5V&USB)

Ø  Hot-Pluggable

Ø  EMI/RFI Resistant

Ø  850nm VCSEL and PIN Photodetector

Ø  2-Wire Interface

Ø  Typical Power Dissipation 1420 mW

Ø  (Source), 1220 mW (Sink)

Ø  Operating Case Temperature: 0~70°C

 Technical Indexes

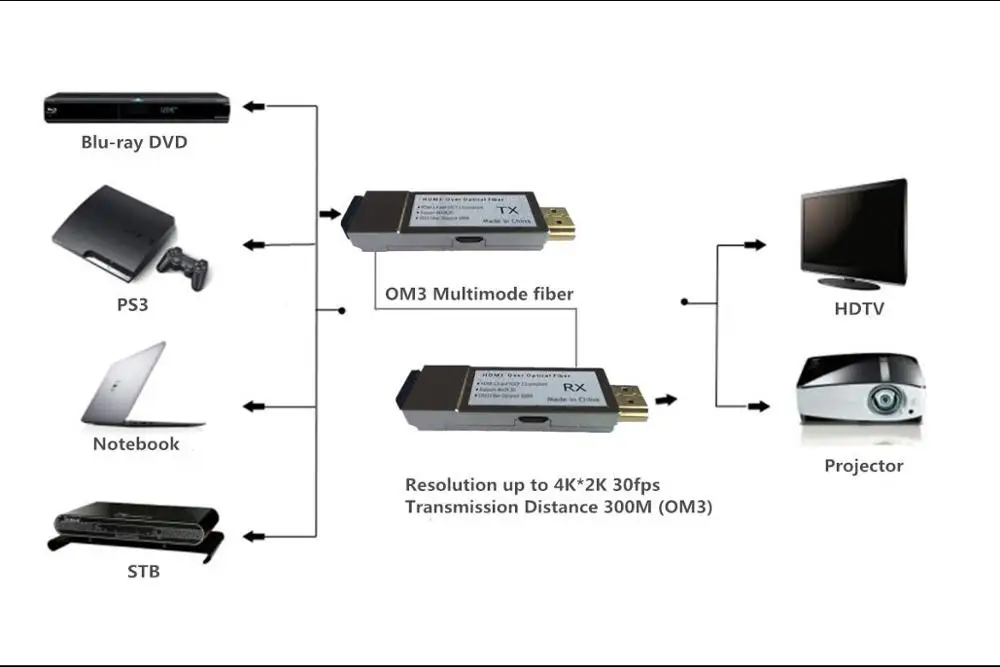

Application Diagram

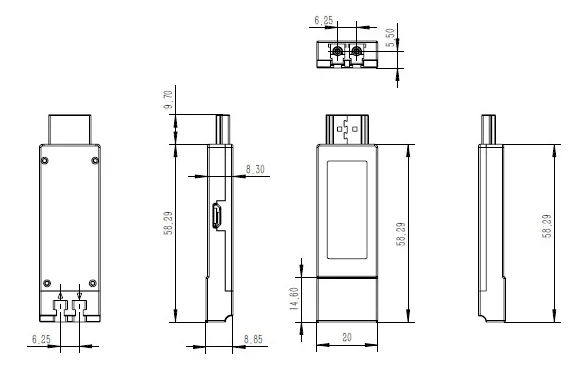

Size & Dimension
