1080P HDMI KVM Fiber Optic Extender
Model: LNK-1240KVM Series
Overview
The LNK-1240KVM series is a high performance 1080P HDMI KVM Fiber Optic Extender that transmits high resolution DVI / HDMI signals over extreme distances using 2 cores fiber. This extender supports HDMI v1.3 signals with resolutions up to 1080P (1920x1080/60p) over cable distances up to 300m.
Features
Real Time Transmission
Supports DVI 1.0 and HDMI v1.3
Supports resolutions up to1920*1080/60P
Supports 1920*1080/60P resolution with color depth up to 24 bits/pixel
Supports HDMI bit-rates up to 2.25Gbps color,6.75Gbps total
HDCP 1.2 compliant
Support 3D TV pass-through
CEC are NOT supported!
Support EDID pass-through
Support USB Keyboard and USB Mouse
LPCM 7.1, Dolby® TrueHD, and DTS-HD Master Audio™
Plug and Play
Built-in EQ(Receiver)
Up to 300m distance by OM3-300(Custom Available)
Low RFI / EMI profile for sensitive applications
Surface-mountable

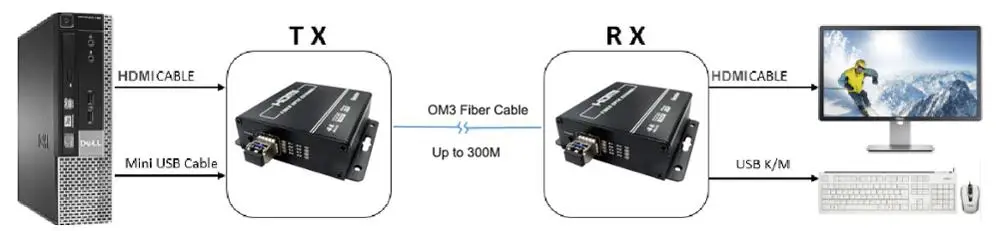

Application
Digital Signage
LED signboards in streets and in stadiums
Medical Imaging Equipment
Airplane On-board Video System
Conference Room Video Equipment
Remote monitor for traffic, industrial, military control
LCD, Projector, Plasma display connection
Large video wall system
TV Broadcast Station
Home Theater
Technical Indexes
Performance | |
Compliance |
HDMI v1.3 |
Maximum Pixel Clock Frequency |
225 MHz |
Maximum Video Bit Rate |
2.25 Gbps |
Supported Color Depth |
24-bit |
Supported Resolutions |
1920x1080/60P |
Digital Audio Support |
7.1 channel LPCM, 192 kHz, 24-bit audio capability |
Connections |
Description |
DVI Input / DVI Output |
1x HDMI Type-A Female connector |
Optical |
1x SFP+ port |
Cable |
|
Fiber Cable Type / Max. Length |
50/125μ OM3-300 Multi-Mode Fiber: ≤ 1,000 ft. (≤ 300 meters) |
Extended function |
|
KM Support |
USB Keyboard x 1 / USB Mouse x1 |
CEC Support |
CEC are NOT supported! |
DDC Support |
|
EDID Pass-through Support |
only 300 meters |
HDCP Pass-through Support |
only 300 meters |
Mechanical |
|
Construction |
High-impact Alufer enclosure |
Dimensions (L x W x H) |
89mm x 104 mm x 28.3 mm |
Net Weight |
200 g |
Environmental |
|
Operating Temperature |
32° to +122° F. (0° to +50° C) |
Storage Temperature |
-40° to +185° F. (-40° to +85° C) |
Operating Humidity |
5% to 80% (non-condensing) |
Storage Humidity |
5% to 95% (non-condensing) |
Power Requirements |
|
External AC Power Adapter |
Input: 100-240VAC / 50-60Hz 0.2A |
Power Consumption |
3 watts |
Warranty |
|
Limited Warranty |
2 year warranty |

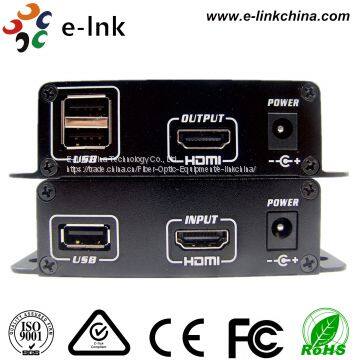

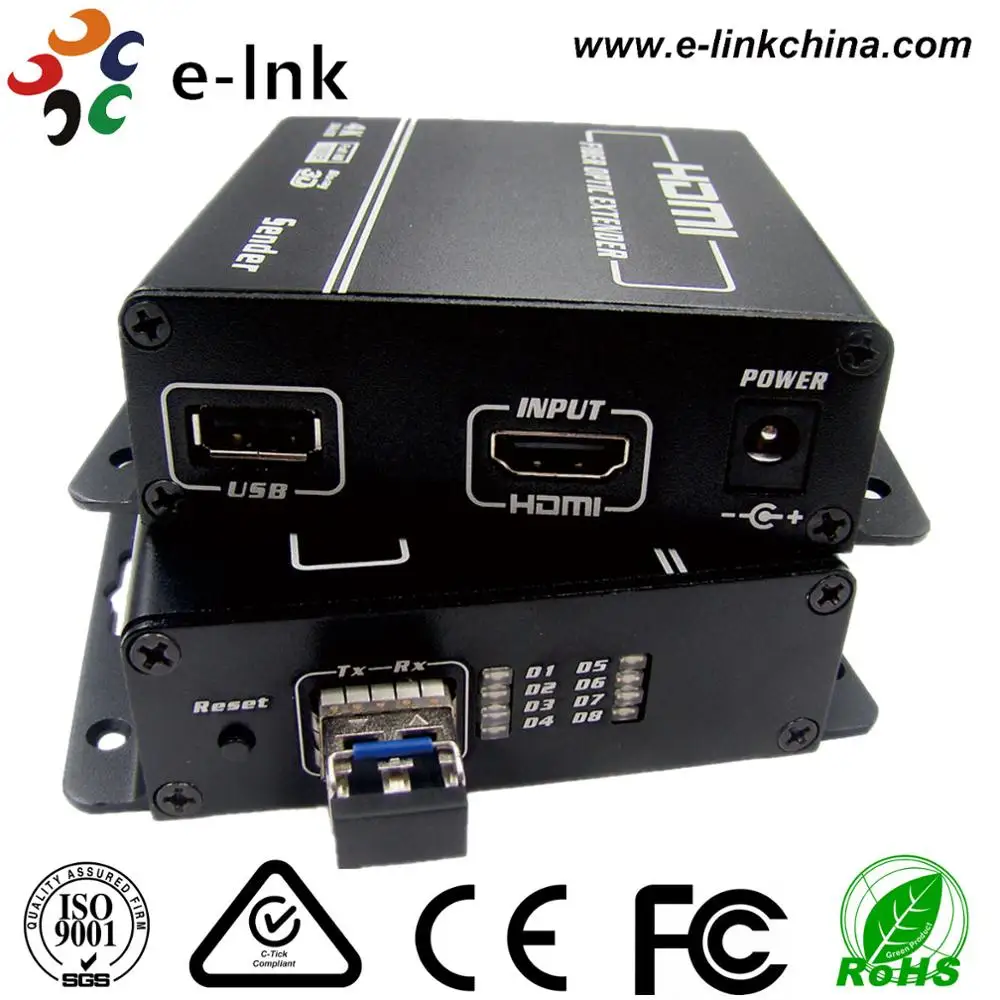

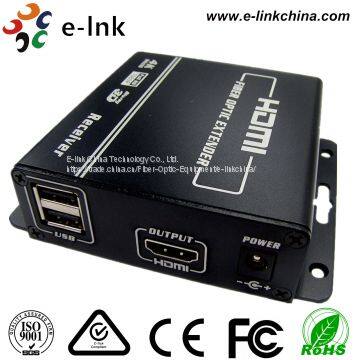

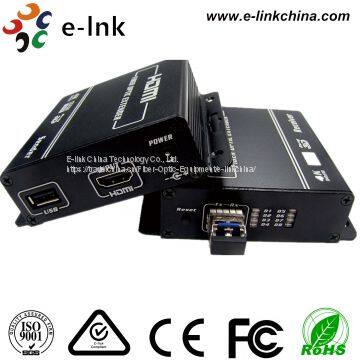

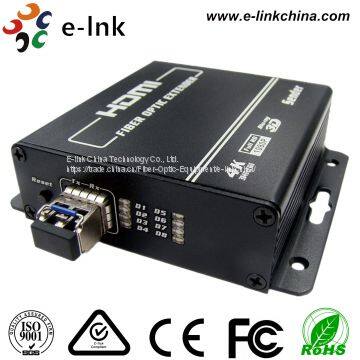

Panel
Port name |
Sender |
Receiver |
HDMI interface |
HDMI signal input |
HDMI signal output |
RESET |
System reset botton |
System reset botton |
POWER |
Power adapter socket |
Power adapter socket |
SFP |
SFP+ Module Cage |
SFP+ Module Cage |
USB |
Connect to PC USB Host Controller |
1*USB Keyboard and 1*USB Mouse |
LED indicator | ||
D1 |
ON: Power on |
ON: Power on |
D2 |
ON: Receiver Optical input is normal and Displayer plugged into DVI output port |
Reserve |
D3 |
SFP+ RX Optical signal Input indicator ON: Lost of Optical signal OFF: The optical signal input is normal |
SFP+ RX Optical signal Input indicator ON: Lost of Optical signal OFF: The optical signal input is normal |
D4 |
Blinking: The Source is connected |
Blinking: The monitor is connected |
D5 |
SFP+ TX Fault indicator ON: indicates normal operation OFF: indicates a laser fault of some kind |
|
D6 |
ON:USB Device2 Link OK Blinking: Communication |
|
D7 |
ON:USB Device1 Link OK Blinking: Communication |
ON:USB Device1 Link OK Blinking: Communication |
D8 |
ON: Error |
ON: Error |
Ordering Information
Part No |
Description of product |
LNK-1240KVM -T |
1080P HDMI KVM Fiber Optic Extender Transmitter |
LNK-1240KVM -R |
1080P HDMI KVM Fiber Optic Extender Receiver |
