Place of Origin
Zhejiang, China
Brand Name
GEOTEST EQUIPMENTS
Model Number
TSRTM-300
Power
Electronic
Usage
Tensile Testing Machine

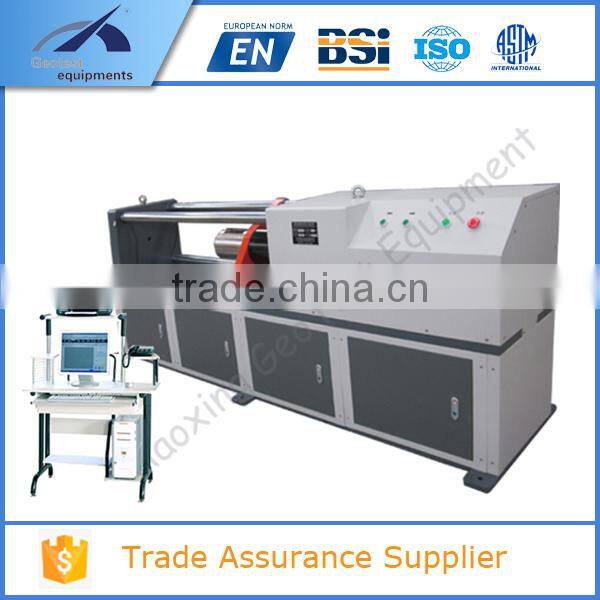

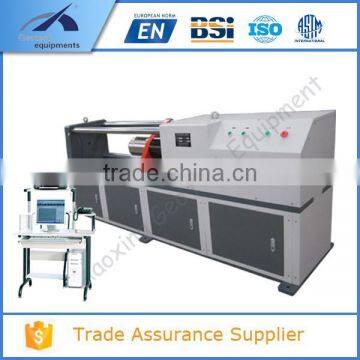

TSRTM-300 Microcomputer Controlled Tensile Testing Machine
Characteristics:
Used in tensile stress relaxation performance test of metal materials (such as steel strand wire, PC steel rods and steel wires) under room temperature.
| Capacity | 300KN | |||||
| Measuring range | 2%-100% (same resolution in full range) | |||||
| Loading accuracy | ±1% | |||||
| Loading resolution | 0.05% FS | |||||
| Loading speed | 0.1-50mm/min (can be set freely) | |||||
| Initial loading method | automatic 70% or 80% breaking loading | |||||
| Loading program | automatic constant-speed, automatic record after maintenance for 2 minute | |||||
| Loading speed | 100-5000N/S (can be set freely) | |||||
| Sample size | Φ15.20mm | |||||
| Tensile stroke | 0-200mm | |||||
| Total tensile distance | 800-1000mm (can be designed according to requirements) | |||||
| Measuring range of displacement | 0.2%-100% | |||||
| Displacement accuracy | 0.001mm | |||||
| Structure of loading frame | horizontal loading frame | |||||
| Power | AC 380V, 50Hz (servo motor with braking) | |||||
| Overall dimensions | 2840x670x1060mm | |||||
| Weight approx | 1200kg | |||||
