Product Details
Place of Origin: | Zhejiang, China | Brand Name: | Geotest Equipments | Model Number: | UTM-100B |
Power: | Electronic | Usage: | Universal Testing Machine |
Product Description

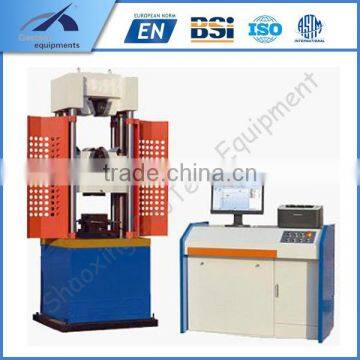

UTM-100B Automatic Universal Testing Machine (Computer Control Electro-hydraulic Servo )
Characteristics
1.High-precision amplifier and 24 high-precision A / D converter, effective internal code ± 200000, test force
measuring resolution up to 1/200000, using high-precision Load sensor, can continuous to working non-steps
within 1%-100% of the Max.Loading force,Measurement accuracy better than 1 grade.
2.AC servo motor control actuator, anti-pollution, low noise, to ensure long-term trouble-free operation;
3.Using PID control strategy to achieve load, displacement and deformation of the closed-loop control,with the
function of:constant rate of loading, load holding, unloading constant speed, constant speed
displacement, displacement maintain constant speed deformation, deformation hold
4.New software Control style, Beautiful and simple Operation interface
5.Digits numerical display box such as the display channel, unit, the decimal point can be configured freely,you can even choose to display horizontal or vertical frame;
6.The number of test curve frame from 1-3 ,and there are multiple curve layout can switch freely, the coordinates
of the curve frame can be arbitrarily selected, the test curve can partial enlarged and to save as a picture file.
7.Configured with multiple force sensors and multiple deformation sensors, the user can switch to use as needed
8.Has three administrative privileges:factory Commissioner, administrator, tester
9.The open standard test configuration mode, the standard software has more than 30 test standard:GB / T228.1-2010, GB / T5224-2003, JGJ107-2010 etc.,users can easily add, delete, or modify a test standards,control steps
can be freely edited according to test requirements;
10.automatically calculate and stored the result data, such as the max force, tensile strength, yield strength, non-proportional extension strength, etc., and the feature points can be displayed on the test curve.
11.The software has test analysis function, can have a data analysis to the completed test results and superimpose compare multiple test curves in a group
12.Standard database management, provides networking data interfaces
13.Users can choose the"Singo Report "reporting system which was developed by our company or use EXCEL spreadsheet to edit and print the report form;
Product Configuration
Name | Details | Quantity | |
1 | Host | Universal test machine,with Electric lift and Hydraulic jaw | 1 |
2 | Controller | EHC-3100 Electro-hydraulic servo universal testing Measuring and Controlling System | 1 |
3 | Servo oil source | AC servo pump station Jaw control pump station Servo and commutation valve group | 1 1 1 |
4 | Load sensor | High-precision Spoke sensor | 1 |
5 | Displacement sensor | 1000mm pull line displacement sensor | 1 |
6 | Deformation sensor | YSJ100/10-2C Electronic extensometer | 1 |
7 | Tensile Accessories | Metal tensile clamp | 1 |
8 | Compression platens | Spherical platen | 1 |
9 | Bending clamp | Metal Bending clamp | 1 |
10 | Computer | Lenovo | 1 |
11 | Printer | HP Ink jet | 1 |
12 | Control Software | TestMaster3 Electro-hydraulic servo universal testing Measuring and Controlling Software | 1 |
Model | UTM-100B | UTM-300B | UTM-600B | UTM-1000B | |
Max.load(kN) | 100 | 300 | 600 | 1000 | |
Effective loading measuring range(kN) | (0.4%-100%)FS | ||||
measuring range | Non-step all the way, equivalent 6 level | ||||
Loading measuring accuracy | ≤±1% | ||||
Loading force resolution | 1/200000FS | ||||
Displacement measuring range | 1%-100%FS | ||||
Displacement resolution | 1/200000FS | ||||
Displacement Display value accuracy | ≤±1% | ||||
Deformation Measuring range | 1%-100%FS | ||||
Deformation resolution | 1/200000FS | ||||
Deformation Display value accuracy | ≤±1% | ||||
Force speed control range | 0.1%~4%FS/s; | ||||
Deformation speed control accuracy | 0.5~50mm/min; | ||||
Deformation constant control range | 0.00007-0.0025/s; | ||||
Speed control accuracy | ≤±5% setpoint | ||||
Max.distance between upper and lower pressure plate(mm) | 600 | 600 | 700 | 700 | |
Max.distance between tensile jaw (mm) | 600 | 600 | 700 | 700 | |
Flat specimen clamping width(mm) | ≤60 | ≤60 | ≤70 | ≤80 | |
Specimen clamping thickness(mm) | 2-15 | 2-15 | 2-30 | 2-40 | |
Round specimen clamping dia.(mm) | 6-22 | 10-32 | 13-40 | 20-60 | |
Distance between the bending test support rollers(mm) | 30-460 | 30-460 | 30-600 | 60-700 | |
Motor Power(kW) | 1.5+0.55 | 1.5+0.55 | 2.0+0.55 | 2.0+0.55 | |
Overall dimensions(mm) | 760×460×1965 | 760×460×1965 | 880×600×2150 | 1000×700×2350 | |
Oil control cabinet(mm) | 1100×600×900 | 1100×600×900 | 1100×600×900 | 1100×600×900 | |
Approx weight(kg) | 1700 | 1700 | 2500 | 3500 | |
Working noize (dB) | ≤60 |
