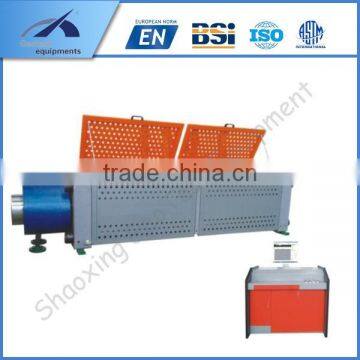

Computer-controlled anchor test equipment static loaded
The" Computer-controlled anchor test equipment static loaded " is used for static-loading anchor testing for steel stand wires both of single-stand and multi-stand samples in sizes of Φ 21.8mm. Φ 17.8mmand Φ 15.24mm.The Static-load Anchor Testing Machine can detect both single-pore and multi-pore anchorage.
The Computer-controlled anchor test equipment static loaded can also adopt load sensor to measure load,and is controlled and displayed by computer with high control precision. The Computer-controlled anchor test equipment static loaded is with maintenance functions of max. load peak and displacement peck, with high control precision.
To choose this "Static-load Anchor Testing Machine " will not make you disppointed.
| Product Name | Computer-controlled anchor test equipment static loaded |
| Useage | To static-loading anchor testing |
| Loading Capacity | 6500KN |
| Measuring range | 4%-1000% |
| Force accuracy | ±1% |
| Control rate of testing force | 1KN/s-50KN/s |
| Speed range | ≤ ±5% |
| Measuring range of displacement | 0-200mm |
| Displacement accuracy | ±1% |
| Repeatability | ±0.5% |
| Piston stroke | 200mm |
| Tensile space | 3400mm |
| Main frame demensions | 5030x700x2060mm |
| Control cabinet dimensions | 1180x800x1310mm |
| Power supply | 380V |
| Total power | 3.5KW |
| Weight approx | 4000KG |
| Certificate | ISO9001:2008 and any other certificates you need can be provided |
| Delivery Time | For sample order with 5 working days for general order with 5-15working days |
| Standards | BS.EN.ASTM |
The biggest manufactor is in china, the top quality is in china, the best service is also in china!
Pls believe GEOTEST, Believe China Power!
We sincerely lookinf forward to cooperate with you!
