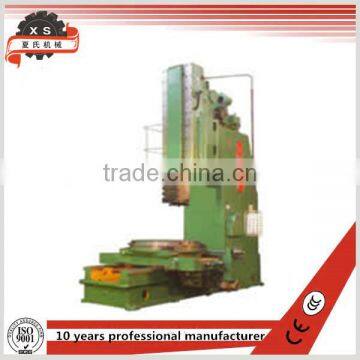

Vertical Slotting Machine B50100

FOB Price

US$ 1,500 - 2,000 / Set

1 Set(Min. Order)

Port Shenzhen
Payment TermsT/T Money Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Guangxi, China
Brand Name	Xiashi	Model Number	B50100
Dimension(LWH)	440028305730mm	Weight	22ton
Certification	CE	Warranty	1 year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

This slotting machine is designed of machining various kinds of large or medium sized machine parts.IT is used for slotting various flat surface,straight

External and internal formsurface,keyways,etc,The slotting speed may be regulated infinitely.
The machine is acconpained with an electro magnetic tool holder and a too bar.The toolholder is used for outer slotting and the tool bar for inner slotting and for slotting the keyway.

max.siotting(850mm for internal slotting)	1000mm
cutting stroke speed	4-25m/min
return stroke speed	7-25mm/min
max.weight of the workpiese for slotting	4000kg
power of main drive motor	30kw
max.table cutting force(within ran traverse speed of 10-20m/min)	24500N
Table diameter	1250mm
Max.table traverse longitudinal cross	1200mm 1000mm
Distance between tool holding surface and column fornt	1120mm
Rang of feed Longitudinal cross circular(along 700circular)	0.2-5mm/double stroke 0.2-5mm/double stroke 0.4-10mm/double stroke
Distance bdtween worktable and lower side of slide	1140mm
Ttable rapid traverse speed,longitudinal or cross	500m/min
Overall dimension(LWH)	440028305730mm
Total weight of machine(including electrical equipment)	22t
