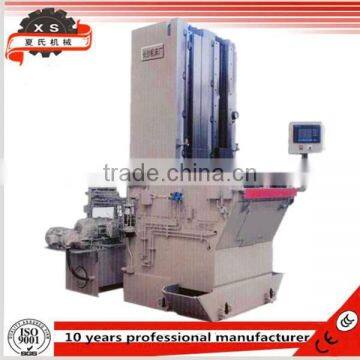

L710B hydraulic external vertical broaching machine plane and shape

FOB Price

USD $10,000 - $30,000 / Set

1 Set(Min.Order)

Supply Ability 30 Set / Sets per Month
Port shenzhen
Payment TermsT/T D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangxi, China	Brand Name	xiashi
Model Number	L710B	Condition	New
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

These machine are disigned for broaching machine plane and shape in mass and batch

production with high efficiency.

These machine are driven by hydraulic power and equipped with a smoothly device against

overload.the machines operated smoothly and give a stepless adjust mean fo cutting speed and

they can be operated in four kind of working cycles such as automatic,semiautomatic and two

step by step cycles.Main actions of the machine can be individually adjusted by jerking motion

so as to meet the requirements of various purpose operation.The machines are operated

easily on the main button control station.

Technical specifications:

Model	L7110 (L710B)	L7116(L720B)
Rated tension	100KN	200KN
Max.stroke	1000mm	1250mm
Broaching speed (stepless)	2-11m/min	1.5-11m/min
Broach return speed (stepless)	7-20m/min	7-20m/min
Max.travel of table	125mm	155mm
Table size	450 × 450mm	550 × 630mm
The bed bottom to the distance from the	1510 mm	1620 mm
rate of flow	200L/min	300L/min
The maximum working pressure	10 Mpa	10 Mpa
The total capacity of motor	17.12kw	22.12kw
The main motor	17	22
Dimensions (L * W * H)	3000 × 2450 × 3115mm	4050 × 2487 × 3855mm
Net weight (about)	7000kg	10000kg
Test hole axis of broaching plane perpendicularity	0.04/300 mm	0.04/300 mm
Specimen broaching surface roughness	6.3 ~ 3.2	6.3 ~ 3.2

Detailed pictures for your reference

If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
