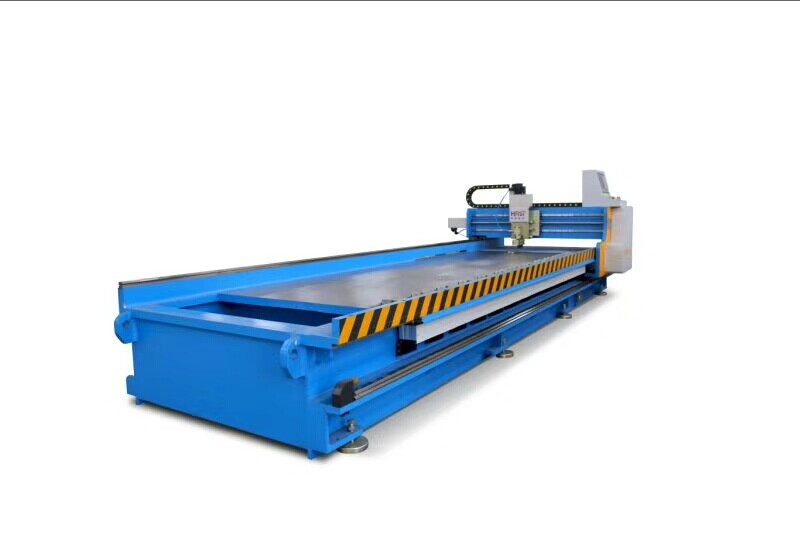

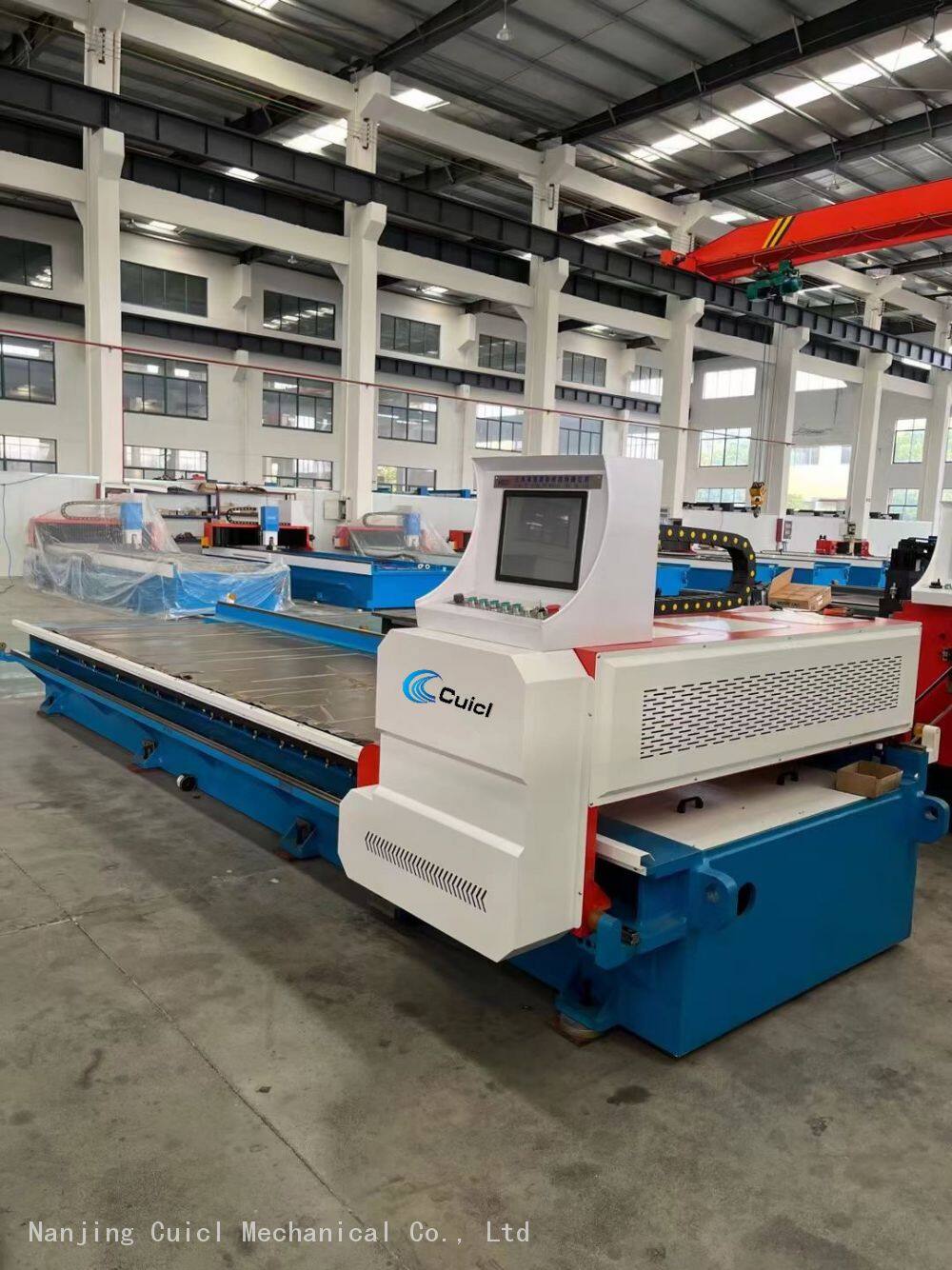

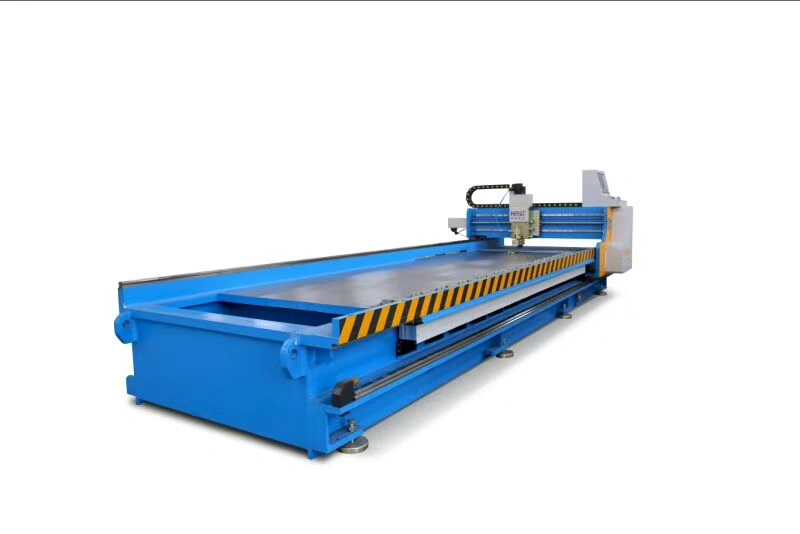

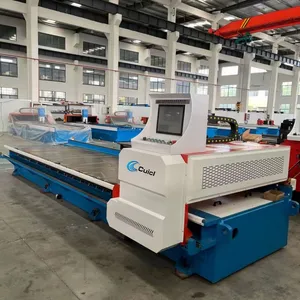

Cuicl High Quality CNC Slot Shaping/Planing/Metal Plate Grooving/Recessing Machine CE Approved in Good Price WholesaleUS$ 1 - 99999MOQ: 1 Unit -
Cuicl High-end Electro-hydraulic Servo Bending Machine 200T 4000mm DA53T 4+1 Axis Plate CNC Press Brake Factory Sales DirectlyUS$ 1 - 99999MOQ: 1 Unit
-
Cuicl Brand-High Quality Exchange Worktable Kitchen Cabinets Manufacturing Fiber Laser Cutting MachineUS$ 1 - 999999MOQ: 1 Set
-
Cuicl High Quality Door Processing/manufacturing Shearing Machine 1000W/1500W/3000W Fiber Laser Cutting Machine CE Approved Factory Sales DirectlyUS$ 1 - 999999MOQ: 1 Set
-
Cuicl High Quality Metal Plate CNC Shearing Machine CE Approved Factory Sales DirectlyUS$ 1 - 99999MOQ: 1 Unit
Application
Grooving is an auxiliary process for bending metal or non-metal materials.
V-grooves are cut out using special equipment and tools at the bending line where the metal or non-metal material needs to be bent, making the material easy to bend and forming and the outer R of the bending angle can be minimized.
Then, the material is bent by a bending machine or manually.
This method completes the processing and meets the product appearance requirements.
The depth, width and angle of the V-groove can be guaranteed by the feed amount and shape of the planer during planing.
Technical parameters
Length |
3200mm |
4000mm |
5000mm |
6000mm |
|
1 |
Thickness (mm) |
0.3-6 |
0.3-6 |
0.3-6 |
0.3-6 |
2 |
Length(mm) |
3200 |
4000 |
5000 |
6000 |
3 |
Width (mm) |
850-1500 |
850-1500 |
850-1500 |
850-1500 |
4 |
Grooving speed(m/min) |
15-60 |
15-60 |
15-60 |
15-60 |
5 |
Grooving Area (mm) |
2.25 |
2.25 |
2.25 |
2.25 |
6 |
Plate speed (m/min) |
5-0.5 |
5-0.5 |
5-0.5 |
5-0.5 |
7 |
Y axle Minimum unit |
0.01 |
0.01 |
0.01 |
0.01 |
8 |
Y axle Minimum positioning accuracy |
0.05 |
0.05 |
0.05 |
0.05 |
9 |
Z axle Minimum unit |
0.01 |
0.01 |
0.01 |
0.01 |
10 |
Z axle Minimum positioning accuracy |
0.02 |
0.02 |
0.02 |
0.02 |
11 |
X axle Motor power(kw) |
W=2 |
W=2 |
W=2 |
W=2 |
12 |
Y axle Motor power(kw) |
W=3 |
W=3 |
W=3 |
W=3 |
Please contact us for more details
