Home > Products > Slotting machine and Broaching machine > Slotting Length 500-1250mm CNC Hydraulic Slotting Machine BYK5050-100E

Slotting Length 500-1250mm CNC Hydraulic Slotting Machine BYK5050-100E

FOB Price

US$ 1,000 - 10,000 / Set

1 Set(Min. Order)

Port qingdao
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Guangxi, China
Brand Name	Xiashi	Model Number	BYK5050-100E
Voltage	220/380/400	Power(W)	11kw
Dimension(LWH)	4107x2137x2548mm	Weight	12000kg
Certification	ISO9001	Warranty	One Year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Machinery for slotting machine, workpiece, molding surfaces, suitable for single and small batch production.

The main structure and characteristics of machine tools:

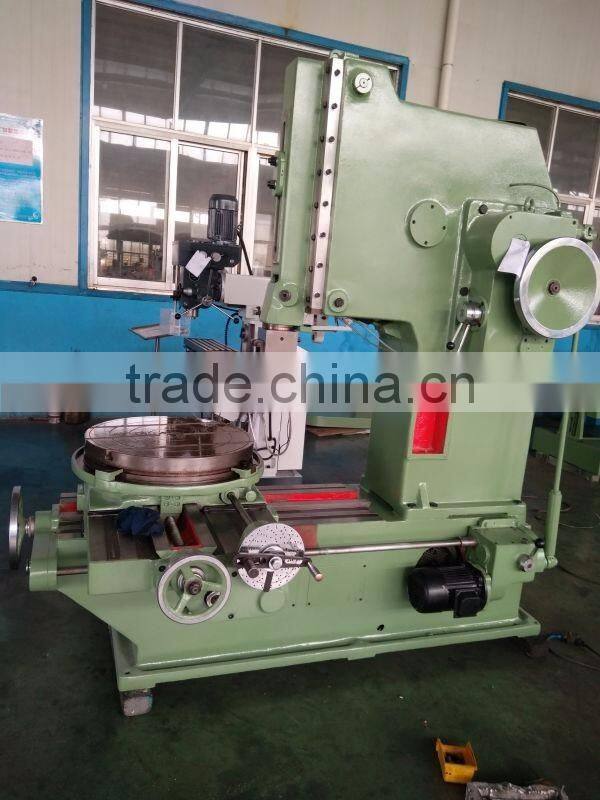

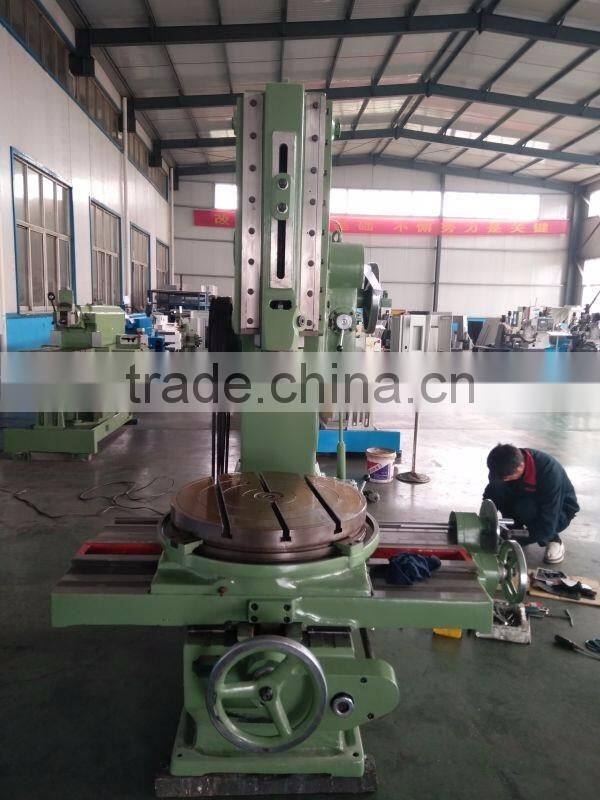

The machine consists of bed, ram, workbench, feed box, gear box, electrical and other major parts.

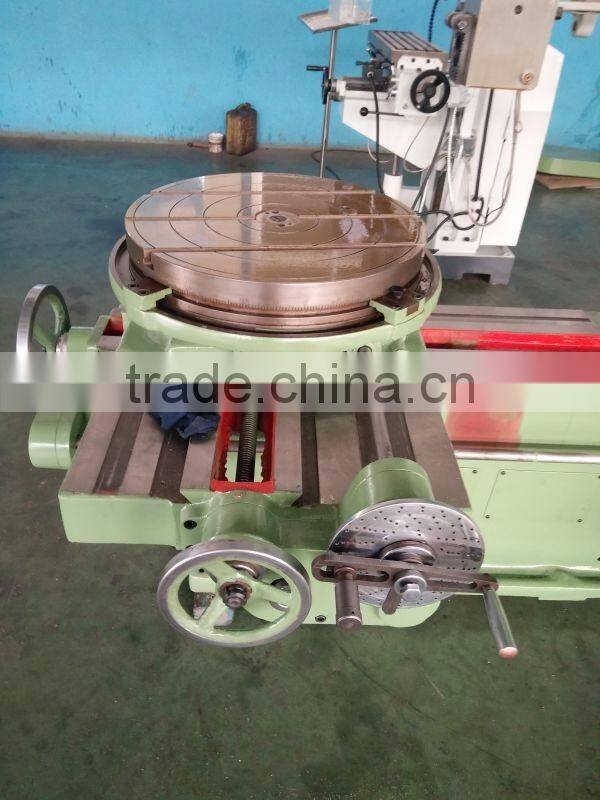

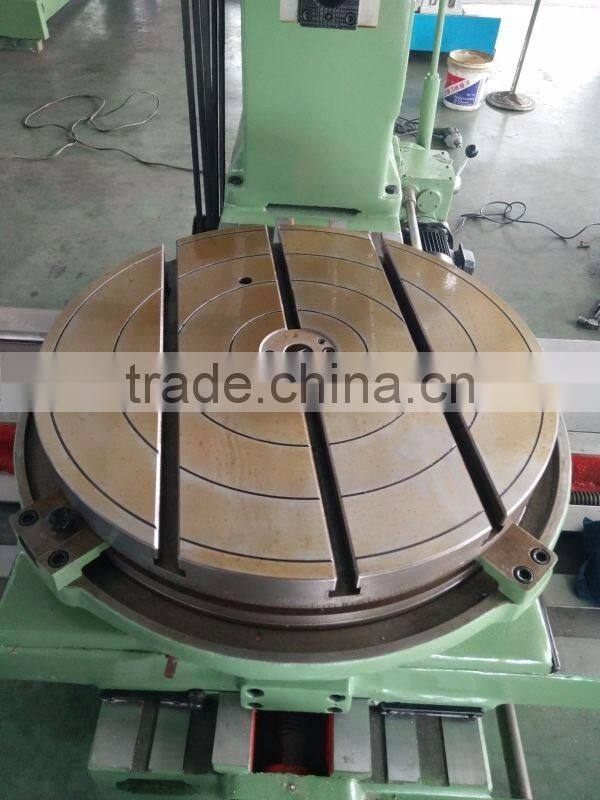

The bed is composed of two parts, the upper part of the bed in front of a ram, a carriage and a rocking handle mechanism, its bottom is cast a separator as lubricating oil tank. The plunger oil pump, oil separator, oil to ram guide etc., open bed cover can see in front of the fuel level oiling, oil standard, the lower bed above the dovetail guide for table longitudinal movement of the rear, inside the motor, while the rear is arranged on the right side of the feed box.

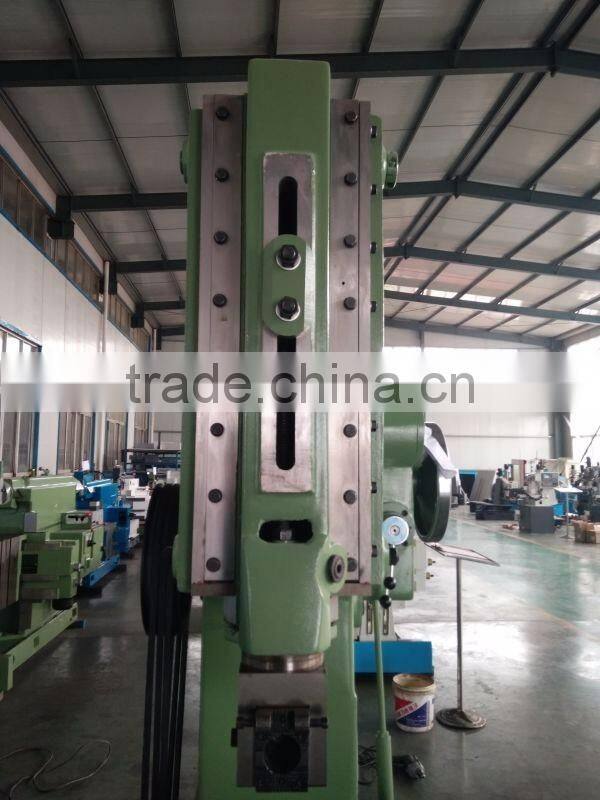

The utility model relates to a sliding handle mechanism of a pillow, which is a rotary motion of a rocking handle gear. According to the height, the ram can be 215mm within the scope of adjustment, the adjustment can disengage the ram in front of the nut, then twist the bevel gear with square head, you can get the vertical displacement of the ram, to meet the requirements, will tighten the nut.

The ram in the return stroke, rotary knife cutter with cone pin chuck around the bottom right, to protect the cutting edge.

The handwheel on the gearbox can be moved by hand to get the vertical movement of the ram.

Packaging & Shipping

We will pack the machine with standard export wooden case ,ensure the transport safety

FAQ

1)Q: Which trade term I can choose?
A: You can choose FOB,CIF, DDU or other terms. You can book ship or I can book ship for you.

2)Q: How can I get quotation from you?
A: You can make the inquiry online on Alibaba, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 2 hours on work days, and within 24 hours on holiday.

3)Q: How can I choose right machine and how to assure quality?
A: You can choose machine on our website accodring to your request. Or You can let our seller know what is your request specifcation or what is your parts, so let our seller recommend suitable machine to you. We have do trade machine years, and export machine to over 100 countries. We have CE, ISO, SGS and other quality certificate.

4)Q: how can I make the payment?
A: We can make the deal on Alibaba online platform, you can pay by T/T or Credit card. You can also pay to my company business bank account. You can also choose L/C or other way.

5)Q: How long does it take to get machine?
A: If the machine you will order is standard machine, we can ready the machine within 15days. If special machine, please confirm with our seller. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.

6)Q: how about warranty?
A: warranty is one year, but we will offer lifetime service for machine.
