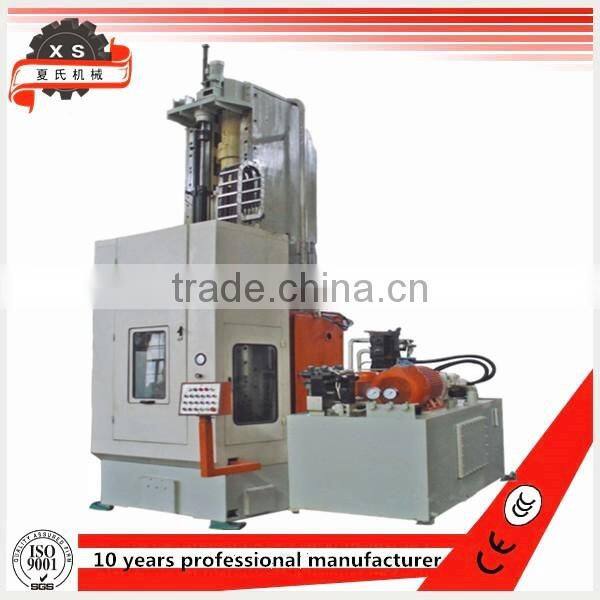

L5110A broaching tools ,Vertical internal broaching machines with cheap price
- 30 Set / Sets per Month
- shenzhen
- T/T D/P D/A Credit Card
You May Like
-
High-precision L5106 internal broaching machine tools For Sale
-
L55100 Vertical internal broaching machines
-
L5720C vertical pull-up internal broaching machine
-
L57 Series vertical pull-up internal broaching machine
-
L5110A Vertical internal broaching machines,broaching tools for sale
-
L5540 Vertical internal broaching machines,broaching machine,broaching tools with low price
Product Details
| Place of Origin | Guangxi, China | Brand Name | xiashi | |
| Model Number | L5110A | Condition | New | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
L5110A broaching tools ,Vertical internal broaching machines with cheap price
Introduction
The machine is used to broach various geometries through holes, high production efficiency,
suitable for batch production and mass production.
This machine adopts hydraulic transmission, smooth, stepless speed, and overload safety deviceWorktable is fixed, there is escorted knife device can be used for automatic cycle, semi-circle,
segmented circular (Ⅰ, Ⅱ) and adjusted in five different sports, able to adapt to the needs of
the different forms of broaching.
Technical parameter
Model | L5520C |
Rated tension (KN) | 200 |
Max. Stroke (mm) | 1600 |
huttle knife agency stroke (mm) | 150 |
Work stroke speed (stepless speed regulation )(m/min) | 2-10 |
Returned stroke speed (stepless speed regulation )(m/min) | 5-20 |
Main drive pump | High pressure double vane pump |
Displacement (L/min) | 250 |
Table surface size (mm) | 450×450 |
Table pore size(mm) | φ150 |
Face Chuck pore size(mm) | 130×160×130 |
Max working pressure (mpa) | 8 |
Main motor power (KW) | 37 |
Overall dimensions(L×W×H)(mm) | 2930×3030×5237 |
Net wight(Approx.) (KG) | 12000 |
Verticality of rear aoerture central line of test piece broaching to basic surface(mm) | 0.06/200 |
Surface roughness of test piece broaching(Ra) | 6.3 ~1.6 |

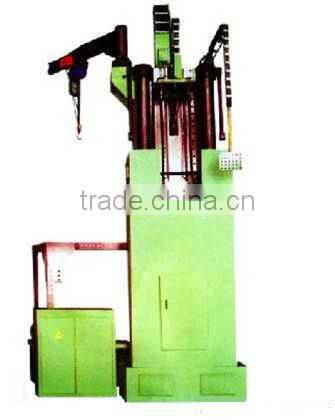

Detailed pictures for your reference
Why Choose Us?
- We have our own factory and strong production capacity.
- we insist on good quality and have strict quality standards
- The hiring of experienced staff to guarantee high quality.
- Our product can be made as per your requirement .
- 24 hour online communication for you.
- We have more than 6 years of export experience.
FAQ
Q: What information should I let you know, if I want to get a product offer?
A: 1. the size of your work piece
2. the CNC system you preferred if you need CNC type
3. the work piece drawing if you have
Q: How to control the quality of production processes?
A: We have a professional quality inspectors to check on the quality of the finished product.
Q: Is it possible to visit your factory?
A: It is very convenient to visit us and all clients from around the world are highly welcomed.
Q: What’s the MOQ?
A: The MOQ is 1 set.
Q: What’s the quality assurance and service ?
A: We offer one year warranty and 100% quality inspection before shipment. We shall reply your message within 24 hours to solve your problem.
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
