High Quality Shaping Machine BY6080,metal Shaping Machine Tool, Metal Shaping Machine for Sale
- Shenzhen
- T/T Credit Card
You May Like
-
Hydraulic Shaping Machine BY60125
-
Horizontal Internal Broaching Machine FY850-JC
-
Horizontal Internal Broaching Machines,broaching Machine L6120C
-
Horizontal Internal Broaching Machines,broaching Machine L6104
-
Horizontal Internal Broaching Machine L6106
-
China High Quality Vertical Internal Broaching Machines,broach Cutting Machine L5580
Product Details
| Condition | New | Place of Origin | Guangxi, China | |
| Brand Name | Xiashi | Model Number | BY6080 | |
| Voltage | 380V | Power(W) | 4 kw | |
| Dimension(L*W*H) | 2770 x 1350 x 1500 mm | Weight | 2600kg | |
| Certification | ISO | Warranty | 1 years | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
High Quality Shaping Machine BY6080,metal shaping machine tool, metal shaping machine for sale
Feature
The machine is used in planing a variety of plane & forming plane, and it is suitable for single and small batch production.
Heat treatment technics such as tempering, vibration aging, induction quenching and so on adopted on key parts like bed enable more stable accuracy and longer working life.
Main cutting movement and feeding movement are realised hydraulically, which is infinitely variable, and is with hydraulic overload protection device. So advantages as smooth turning, little overrun, flexible & reliable start/stop, high rigidity, strong cutting force, high reversion precision, low oil temperature, little thermal deformation and stable precision could apply to continuous strong cutting work.
The table moves rapidly in both horizontal and vertical direction, the tool post is with auto tool lifter, the handles collect, so the machine is with easy operation & advanced automation.
Specification
Model | BY6080 |
Max.shaping length | 800 mm |
Cutting speed of ram(stepless) | 2-24 m/min |
Distance from lower edge of ram to upper surface of table | 350 mm |
Max.cutting force | 1500 kg |
Max.travel of tool post | 150 mm |
Max.sectional area of tool bar (W x H) | 22 x 30 mm |
Upper working surface of table(L x W) | 800 x 400 mm |
T-slot width of upper table surface | 18 mm |
Max.horizontal travel of table | 600 mm |
Horizontal feed of table (per reciorocating stroke of ram, stepless) | 0.25-3 mm |
Main motor | 4 kw |
Motor for rapid table movement | 0.75 kw |
Overall dimensions(L x W x H) | 2770 x 1350 x 1500 mm |
Net weight(approx.) | 2600 kg |

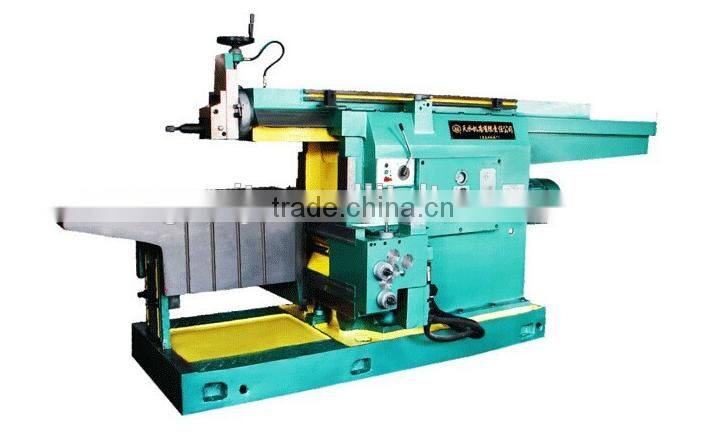

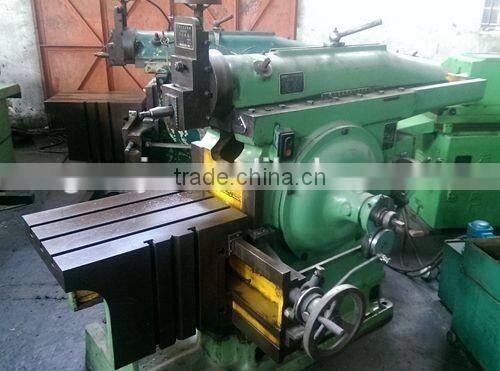

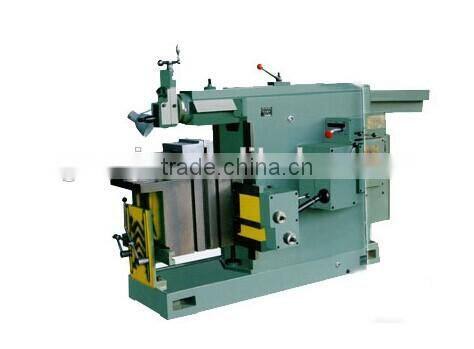

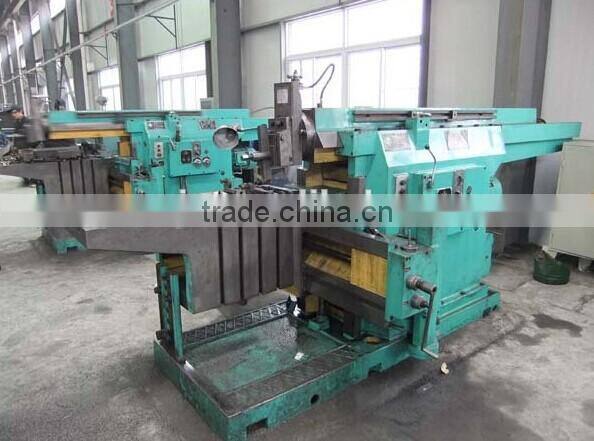

Picture for your reference
Why Choose Us?
- We have our own factory and strong production capacity.
- we insist on good quality and have strict quality standards
- The hiring of experienced staff to guarantee high quality.
- Our product can be made as per your requirement .
- 24 hour online communication for you.
- We have more than 6 years of export experience.
FAQ
Q: What information should I let you know, if I want to get a product offer?
A: 1. the size of your work piece
2. the CNC system you preferred if you need CNC type
3. the work piece drawing if you have
Q: How to control the quality of production processes?
A: We have a professional quality inspectors to check on the quality of the finished product.
Q: Is it possible to visit your factory?
A: It is very convenient to visit us and all clients from around the world are highly welcomed.
Q: What’s the MOQ?
A: The MOQ is 1 set.
Q: What’s the quality assurance and service ?
A: We offer one year warranty and 100% quality inspection before shipment. We shall reply your message within 24 hours to solve your problem.
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
