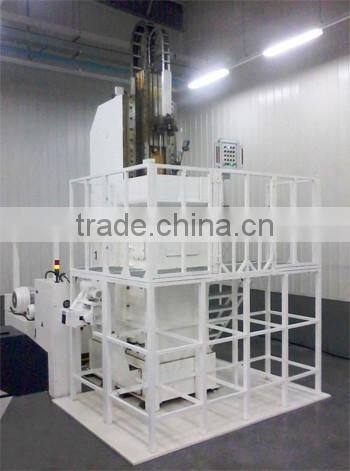

L51 Series of Large Tonnage Vertical Broaching Machine L5110B

FOB Price

US$ 2,000 - 2,500 / Set

1 Set(Min. Order)

Port shenzhen
Payment TermsT/T D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangxi, China	Brand Name	xiashi
Model Number	L5110B	Condition	New
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Feature

This machine is suitable for processing all types of a geometry requirements hole parts (such as: round hole, spline, single hole, involute internal spline hole, etc.), especially suitable for high precision, high efficiency requirements of users.

Machine tool hydraulic components, the main electrical components are imported components, machine operation are completed by the hydraulic system of broaching machine, using special high flow radial piston pump, smooth, stepless speed regulation. Broaching cutter workpiece when full escort. Automatic operation. The machine adopts semi closed protection.

Specification

1, the machine can realize the full escort broaching stroke, improve the cutting precision of workpiece.

2, the machine adopts hydraulic transmission, smooth, stepless speed regulation, with overload protector.

3, the machine adopts PLC, contactless switch control, with automatic cycle, semi-automatic cycle, sub cycle. The main action may be to move.

4, the machine adopts automatic centralized lubrication device can be adjusted.

5, the machine adopts automatic chip removal device, and is equipped with the cutting trolley.

6, the machine adopts automatic flushing device for high voltage chip cooling.

Technical parameters

Model		L5110B	L5120C	L5140B	Unit
Rated tension		100	200	400	KN
Radial piston pump flow		100	200	400	L/min
Max. stroke		1000	1600	2000	mm
Max. length of broach		852-1100	830-1600	1300-2000	mm
Distance between board Broach centerline to the main slide carriage surface		161	230	300	mm
Distance between board Broach centerline to the ordinary slide carriage surface		110	188	258	mm
Main slip plate	Max.stroke of table	1000	1600	2000	mm
	speed of working stroke (stepless)	3-8	2-8	3-7	m/min
	Return speed (stepless)	3-16	3-1	3-15	m/min
Worktable	Worktable pore diameter	Φ150	Φ200	Φ250	mm
	disc chuck pore diameter	Φ100	Φ130	Φ150	mm
overall dimensions(L×W×H)		3292×3130×3785	3995×2350×3785	3810×2850×6641	mm
Net wight(Approx.)		9000	12000	26000	kg

Detailed pictures for your reference

If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
