VMC650L Linear guide rail series CNC Vertical Machining Center
Vertical machine center VMC650L
Model | VMC650L | |||
Control system | FANUC 0i series | |||
Stroke | X-axis | mm | 600 | |
Z-axis | Y-axis | mm | 500 | |
Z-axis | Z-axis | mm | 500 | |
| Distance of spindle center to column way | mm | 560 | |
| Distance of spindle nose to table face | mm | 110-610 | |
Work table | Table size | mm | 500X800 | |
| T-slot (quantity-size × space) | mm | 3-18×144 | |
| Max.loading weight | kg | 350 | |
Spindle | Spindle thru-hole |
| BT40/Φ130 | |
| Max. spindle speed | rpm | 8000 | |
Feed | Fast move | m/min | 16/16/16 | |
| Cutting moving speed | mm/min | 8000 | |
Magazine | Tool holder type |
| MAS, BT-40 | |
| Pull stud type |
| MAS, PT40T-1 | |
| Capacity of tool magazine | set | 20 | |
| Max.tool length | mm | 120 | |
| Max. Tool diameter | Complete knife | mm | 60 |
|
| Adjacent air knife | mm | 80 |
| Max.allowed weight of tool | kg | 8 | |
| Change way | Disk |
| |
| Change time | sec | T-T: 0.7/C-C:3.0 | |
Motors | Spindle motor(30 minutes/continuous) | kw | Mitsubishi:7.5/5.5 Fanuc:7.5/5.5 | |
| Servo motor | kw | Mitsubishi:2.2Fanuc:1.4 | |
Power | Voltage/rate |
| 380V/50Hz | |
| Total capacity of electricity | kva | 15 | |
| Pneumatic pressure | mpa | 0.5-0.6 | |
Machine size/weight | Height | mm | 2250 | |
| LxW | mm | 2340X2270 | |
| Net weight | kg | 5300 | |
| Gross weight | kg | 5800 | |
Accuracy | Position accurate | mm | ±0.005/300 | |
| Repeat accurate | mm | ±0.003 | |

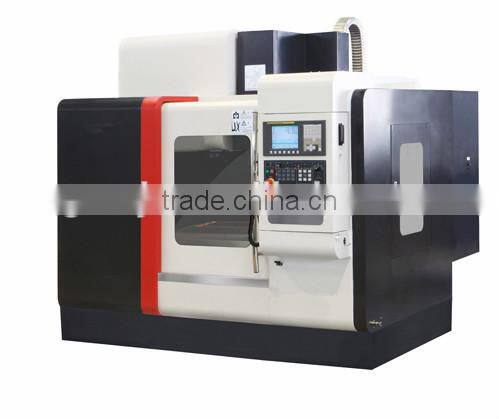

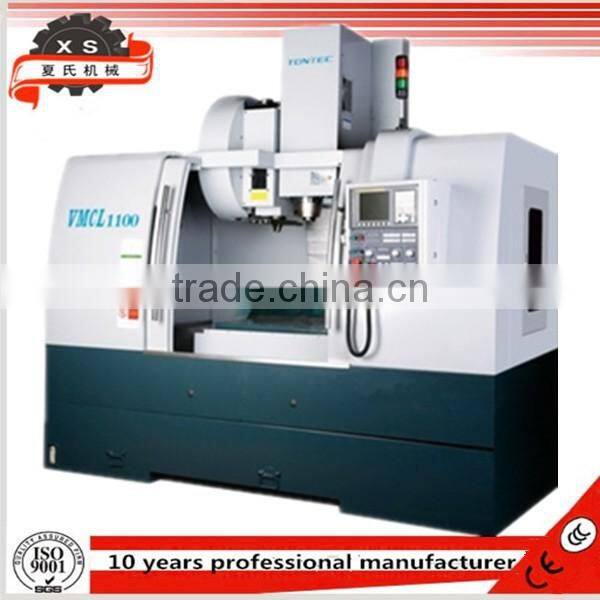

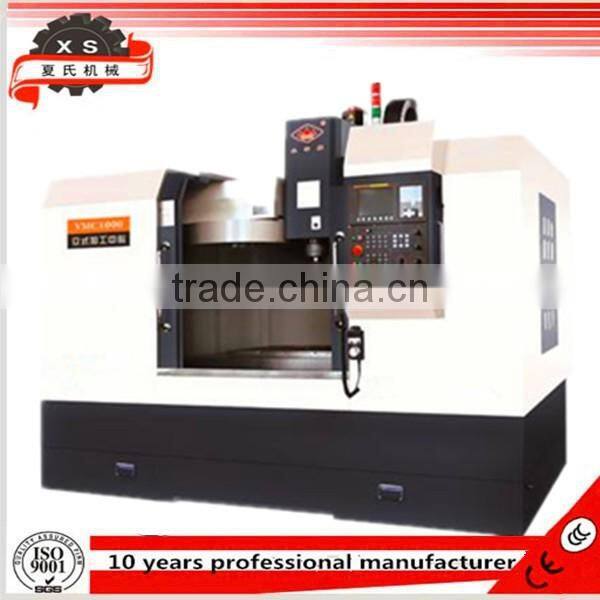

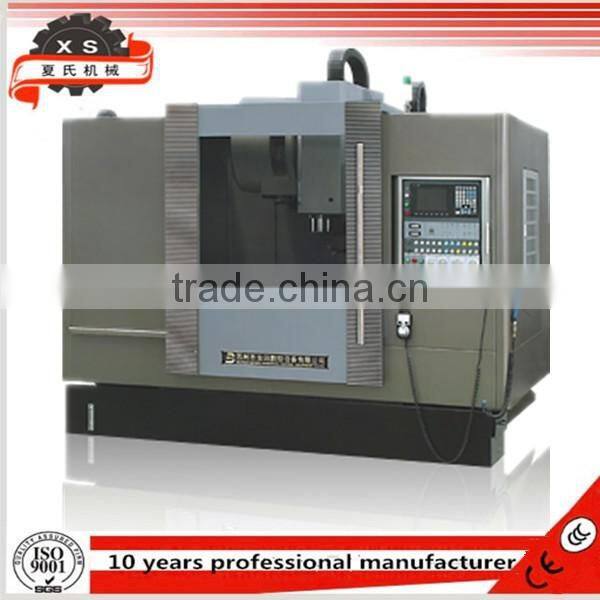

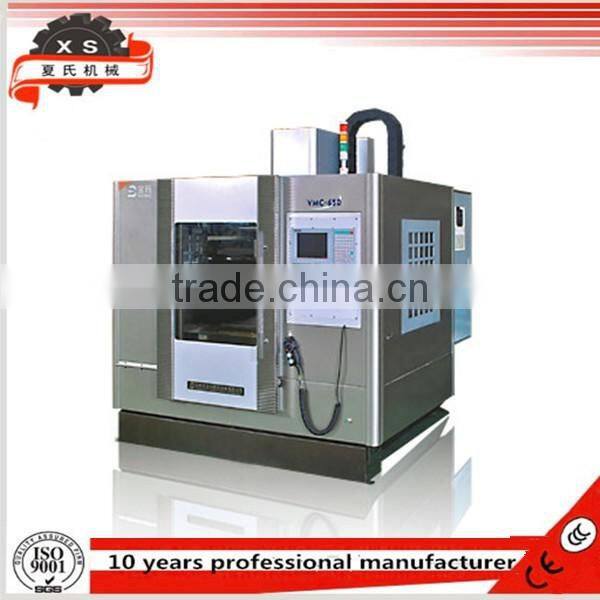

Detailed pictures for your referenc
Packing&Delivery&Terms of Payment
We use wooden package to protect the equipment in container.
Why Choose Us?
- We have our own factory and strong production capacity.
- we insist on good quality and have strict quality standards
- The hiring of experienced staff to guarantee high quality.
- Our product can be made as per your requirement .
- 24 hour online communication for you.
- We have more than 6 years of export experience.
FAQ
Q: What information should I let you know, if I want to get a product offer?
A: 1. the size of your work piece
2. the CNC system you preferred if you need CNC type
3. the work piece drawing if you have
Q: How to control the quality of production processes?
A: We have a professional quality inspectors to check on the quality of the finished product.
Q: Is it possible to visit your factory?
A: It is very convenient to visit us and all clients from around the world are highly welcomed.
Q: What’s the MOQ?
A: The MOQ is 1 set.
Q: What’s the quality assurance and service ?
A: We offer one year warranty and 100% quality inspection before shipment. We shall reply your message within 24 hours to solve your problem.
