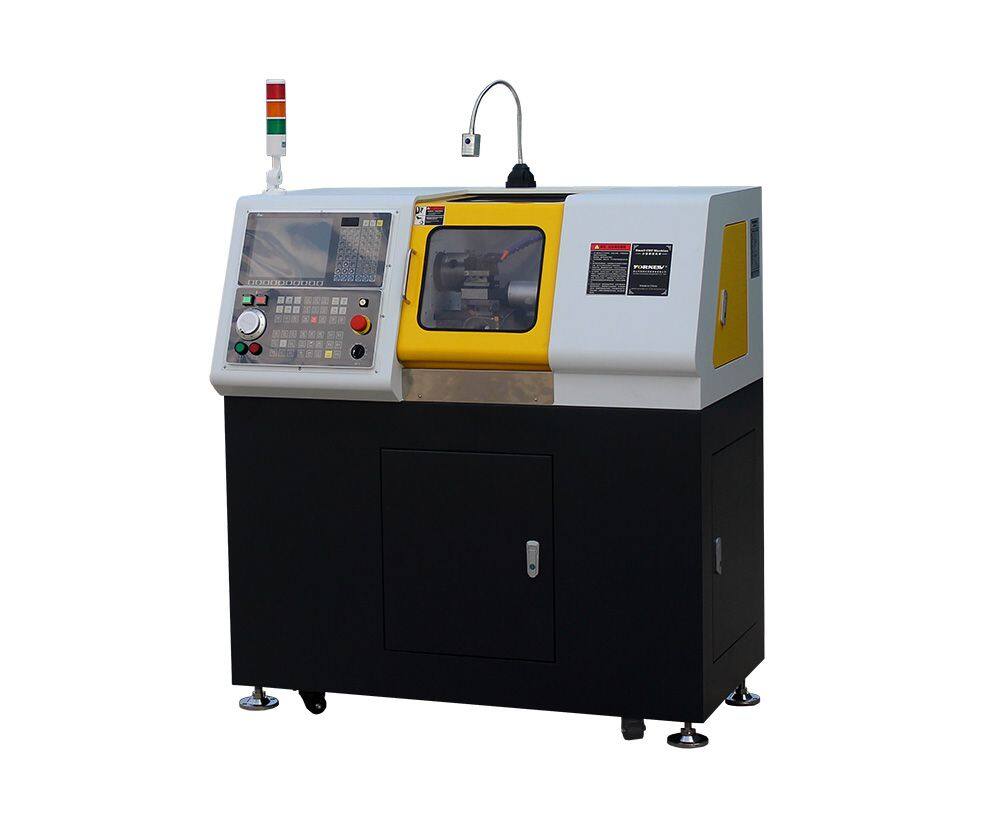

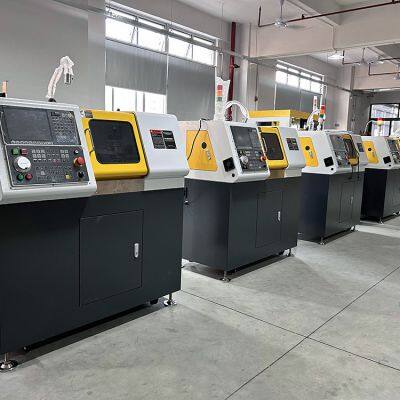

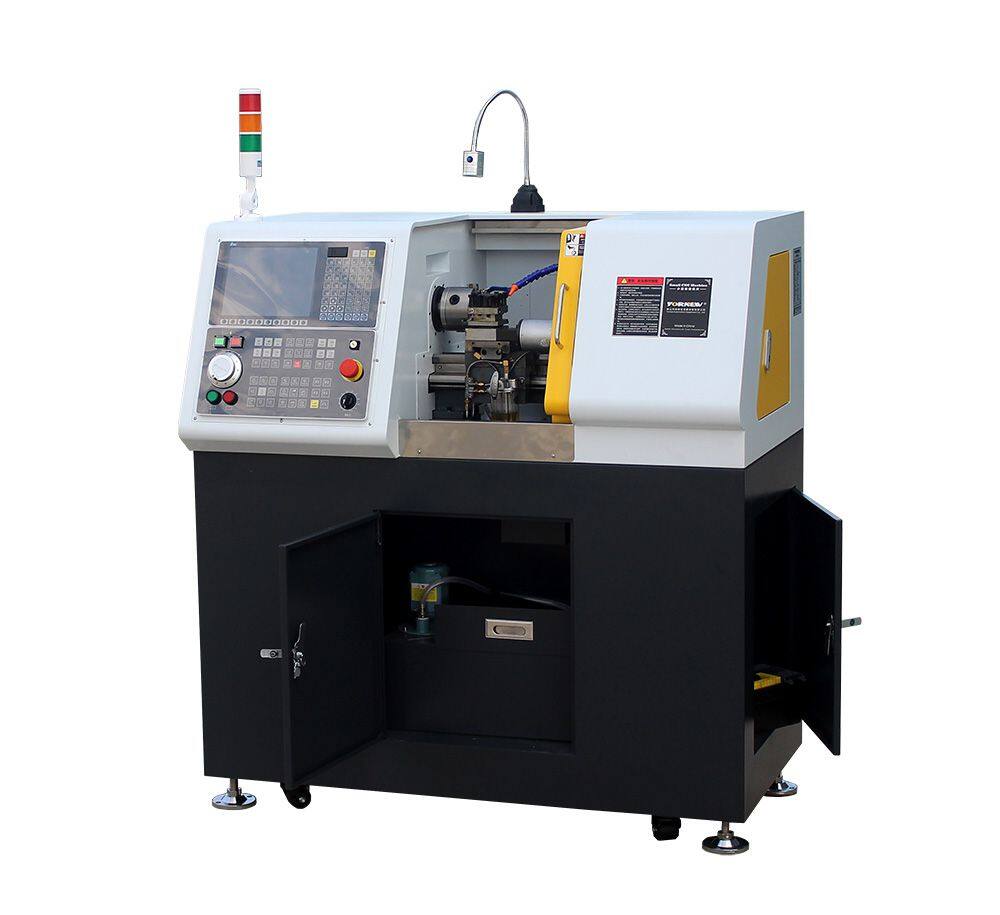

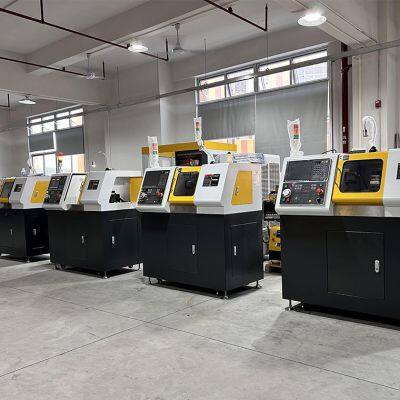

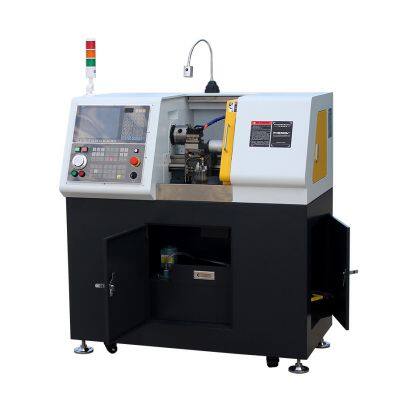

Help CenterSiemens 808D Small CNC Lathe
Related Products
-
YORNEW CNC Lathe Compact Turn CK210NegotiableMOQ: 1 Set -
YORNEW Tools Small CNC Milling MachineNegotiableMOQ: 1 Set
-
CK210-SIEMENS Siemens Small CNC Lathe for Education | Siemens 808D Advance ControlNegotiableMOQ: 1 Set
-
Mini CNC Lathe,Mini CNC Turning Lathe Machines,mini Lathe,CNC Lathe,rolling Cnc Milling,hobby Cnc Lathe,DIY CNC LatheNegotiableMOQ: 1 Set
-
Micro CNC Lathe ,CNC Turning Lathe Machines,mini Lathe,CNC Lathe,rolling Cnc Milling,hobby Cnc Lathe,DIY CNC LatheNegotiableMOQ: 1 Set
Features
(1).XZ axis servo motor, Automatic 4 positions tool post.
(2).With sink and nozzles.
(3).YORNEW 980Tc Turning CNC System,Optional siemens 808D
(4). ARM 9 CPU+FPGA,Ethernet network interface,Support B macro function,PLC function,Mutil-language library function.
(5).Lathe CNC machine tools based entirely on the design and manufacture, reflects the structural integrity of facilitate future design ideas.
(6). The standard spec includes MPG hand wheel.
(7). USB and RS232 port, DNC function of USB.
(8). Network interface, supporting for remote monitoring and DNC file transfer processing.
(9). Control speed of G code.
(10). Selection of high -quality casting materials,more compact.
(11). A collection of double-nut ball screw, bearings and couplings with high precision positioning, while adding an automatic oil lubrication system, to protect your machine precision, extended service life.
(12). 220VAC or 110VAC single-phase AC power supply.
(13). Safety electrical components of high quality.
(14). Auto power off when door open.
(15). Applicable industry: technology development, advertising design, art, ocational technical college Education & Training CNC and DIY enthusiasts.
Technical parameters | |
|---|---|
| Turning diameter over bed(max) | 210mm |
| Chuck diameter | 100mm |
| Spindle speed | 100-1750r/min(control speed of G code) |
| Spindle through-hole | 26mm |
| Spindle mount | MT4 |
| Spindle motor power | 1100W |
| X travel | 80mm |
| Z travel | 290mm |
| X/Z motor | 400W Servo Motor |
| The max moving speed | 4000mm/min |
| The max feeding speed | 2000mm/min |
| Control system | YORNEW 980Tc Turning CNC System,Optional siemens 808D |
| MPG handwheel | 4 axis |
| Tool position | 4 |
| Tool dimension | 10*10mm |
| Tailstock taper | MT2 |
| Tailstock sleeve diameter | 20mm |
| Travel of tailstock | 25mm |
| Positioning accuracy: | 0.02mm |
| Repeatability accuracy | 0.03mm |
| Power | 230VAC / 120VAC |
| Weight(NW/GW) | 280/320KG |
| Overall dimension | 1100*700*1300mm |
| Packing size | 1200*850*1800mm |
