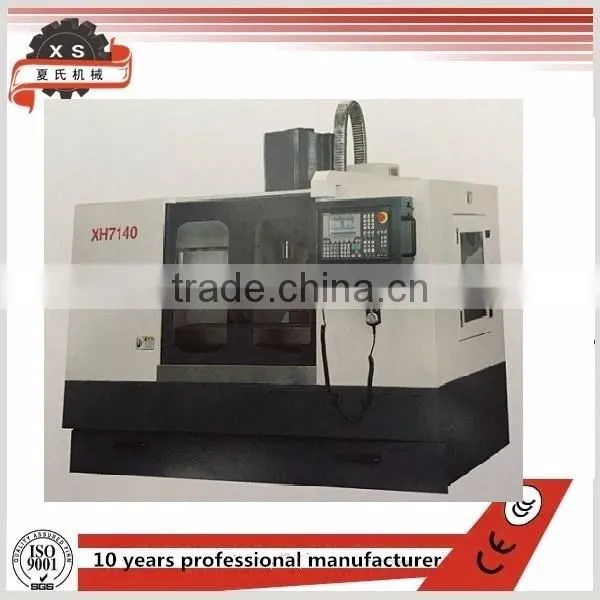

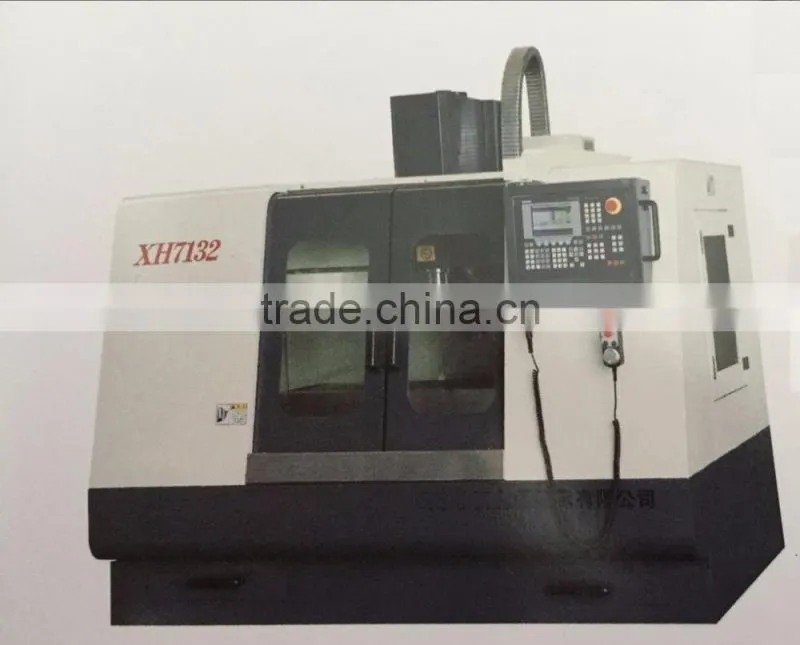

XH71Chinese CNC Vertical Machining Center for sale XH7132 XH7140

FOB Price

USD $1,000 - $100,000 / Set

1 Set(Min.Order)

Product Details

Condition:	New	Type:	Vertical	CNC or Not:	CNC
Automatic Grade:	Automatic	Max. Swing Diameter:	Depends on Model	Place of Origin:	Guangxi, China
Brand Name:	XIASHI	Model Number:	XHK7132	Voltage:	380V
Power(W):	4KW	Dimension(LWH):	2340x2025x2480mm	Weight:	2800kg
Certification:	ISO9001	After-sales Service Provided:	Engineers available to service machinery overseas

Specification

c machining center is with brand famous at home and abroad ,high speed spindle 8000rpm.

2.with box guideways on X,Y,Z axes with high stability.

3.The whole machine is with closed protection and electric cabinet, safe and beautiful.

4. The machine is with taiwan Hiwin ballscrew, NSK bearing.

Apecification	unit	XH(K)7180	XH(K)7160	XH(K)7140	XH(K)7132
table size	mm	800x1700	600x1200	400x800	320x1100
Max,load of table	kg	1500	800	300	200
strokes for X Y Z	mm	1500,800,700	900,600,600	610,450,500	650,370,370
distance from spindle nose to table surface	mm	870	650	500	475
distance from spindle axis to vertical guideway	mm	850	600	450	430
rapid feed(X/Y/Z)	m/min	15/15/12	24/24/20	20/20/12	5/5/5
taper of spindle		BT50	BT40	BT40	BT40
spindle speed	r/min	60-6000	200-6000	50-6000/50-12000	250-6000
spindle motor power	kw	11/15	7.5/11	5.5/7.5	4
tool room capacy	piece	24	24	16	10(16)
max.weight of tool	kg	15	7	6	6
max dia of tool	mm	130	130	120	120
positioning accuracy	mm	+(-)0.012	+(-)0.012	+(-)0.01	+(-)0.015
repositioning accuracy	mm	+(-)0.01	+(-)0.01	+(-)0.008	+(-)0.01
overall dimensions(LxWxH)	mm	4400X3700X3300	2600x2500x3000	2260x2346x2610	2340x2025x2480
machine weight	kg	15000(14500)	7500(7000)	4000(3500)	2800(2500)

Guangxi Xiashi Machinery Equipment Co., Ltd.: Contact nameChristina Chen; Phone86-772-2729581; AddressNo.68-8 Hangyin Road Liuzhou,Guangxi
